Axial Flow Check Valve

As a professional valve company, Waits is a good choice for you to purchase axial flow check valve. We have rich industry experience, and our production equipment and technology are actively introduced into the industry's advanced level. We have the ability to independently design and produce, fully consider the actual pipeline conditions of customers, and combine them with manufacturing standards for production to ensure that customer needs are met.

Send Inquiry

Product Description

Axial flow check valve is a high-performance check valve designed according to API 6D and ASME B16.34. It is widely used in pipeline systems with high flow requirements. It can not only prevent the harm of liquid backflow, but also improve the flow performance of the pipeline.

Implementation Standards

Design Standard	API 6D, GOST
Flange standards	ASME B16.5, ASME B16.47, EN1092-1
End Connection	RF, RTJ, BW
Inspection & Test	API 598, GOST
Face to Face	ASME B16.10, GOST
Pressure and temperature levels	ASME B16.34

Technical Parameters

Size	2"-60", DN50-DN1500
Pressure Rating	Class 150-2500, PN10-PN420
Operating Temperature	-60°C~ 450°C
Application range	It is suitable for various media such as water, steam oil, nitric acid, acetic acid, strong oxidizing media, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Valve plate	Castings：A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800,
Valve seat	NBR,EPDM,FKM...
Valve stem	A182 F6a,17-4PH，F304 F316, F51, ...

Performance Features

The axial flow check valve has the advantages of reducing water hammer damage, reducing noise, and quick response, which improves the performance during use. At the same time, it also fully considers the maintenance needs after installation, helping you to reduce maintenance costs and times as much as possible and extend the service life of the product.
Depending on the working temperature and pressure difference, Waits can also provide corresponding solutions and professional technical services.

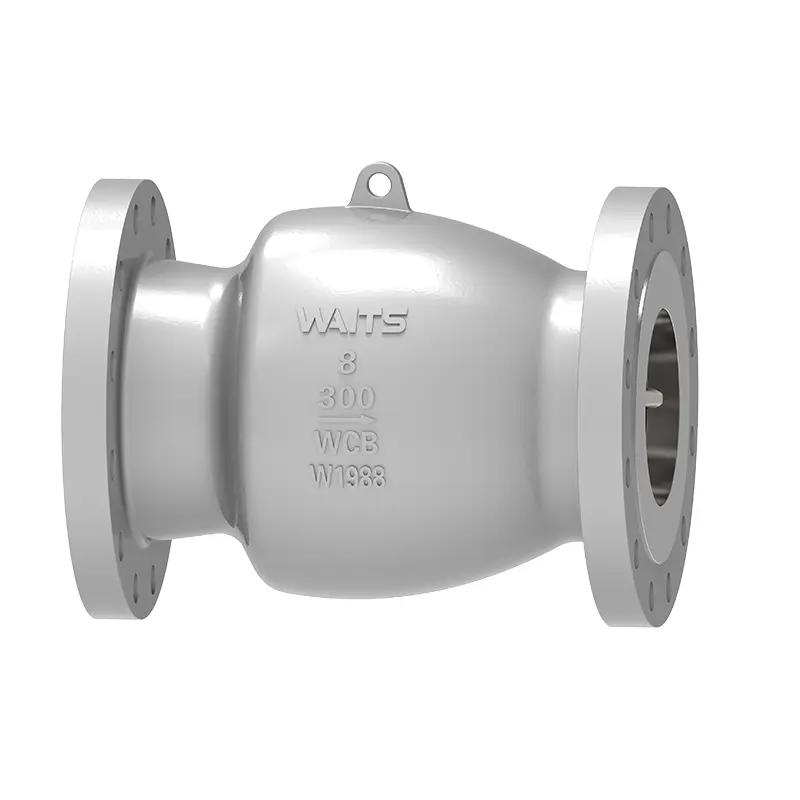

Axial Flow Check Valve
