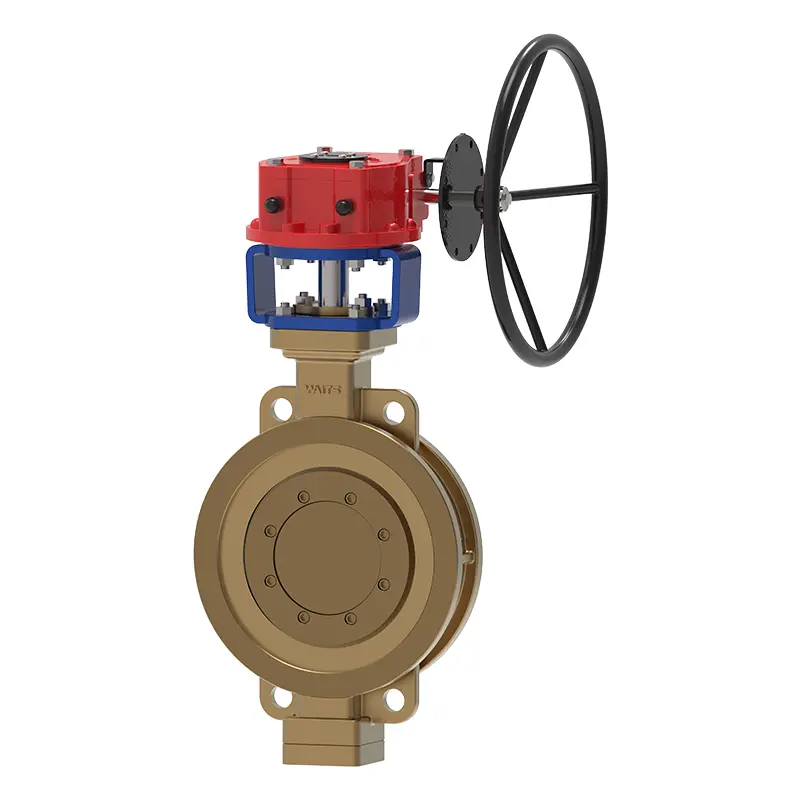

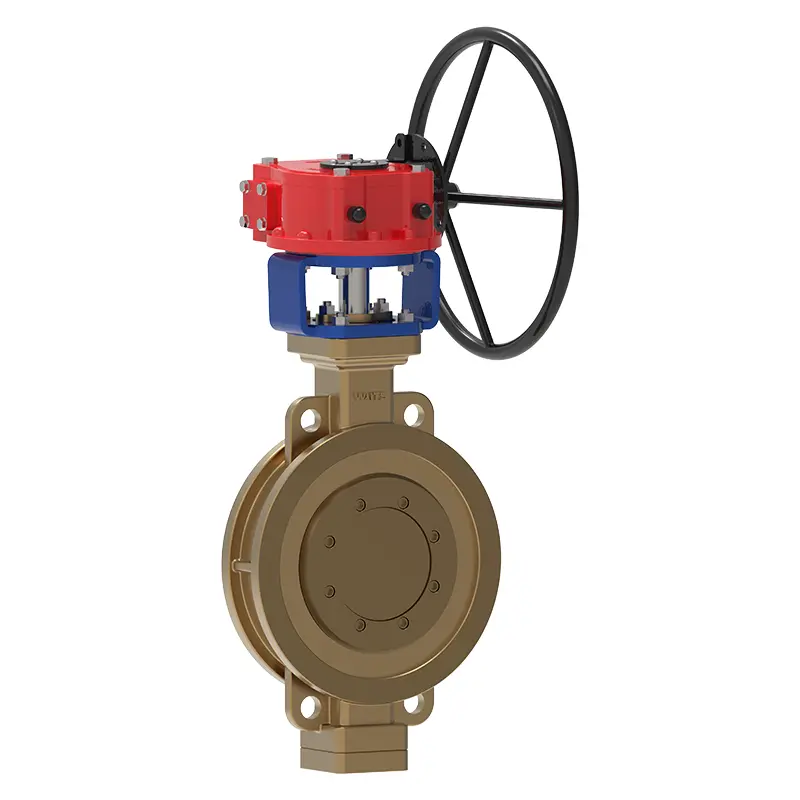

Bronze Triple Eccentric Wafer Butterfly Valve

Manufactured by Waits, a top valve supplier in China, the Bronze Triple Eccentric Wafer Butterfly Valve incorporates advanced engineering and durable construction. The Waits Bronze Triple Eccentric Wafer Butterfly Valve features an innovative triple eccentric design. Its aluminum bronze body offers corrosion resistance and strength for high pressure/high temperature pipelines in the petrochemical and energy industries. Wafer style installation and compatibility with multiple drive methods make it more convenient.

Send Inquiry

Product Description

Waits Bronze Triple Eccentric Wafer Butterfly Valve is designed for precise flow control in limited space applications. The valve adopts a triple eccentric design and metal to metal sealing. Choose a triple eccentric wafer butterfly valve, which is reliable, efficient, space saving, and supported by a trusted Chinese valve manufacturer.

Unlike traditional butterfly valves, the Bronze Triple Eccentric Wafer Butterfly Valve minimizes friction during opening and closing, ensuring a long service life and reliable performance. Its wafer type valve body is easy to install between pipe flanges, saving space while maintaining strength and sealing efficiency.

This valve is commonly used in industries such as oil and gas, chemicals, and energy. It supports manual and automatic actuation and complies with international standards such as API 609 and EN 593.

Implementation Standards-Bronze Triple eccentric Wafer Butterfly Valve
Design Standards	API 609, EN593
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092-1/2
Connection	RF, FF
Test Acceptance	API 598 EN12266
Structure Length	API 6D ASME B16.10 EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	/
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175

Application-Bronze Triple eccentric Wafer Butterfly Valve
Size	NPS 2″~ NPS 48″ DN50~ DN1200
Pressure Range	CL150~CL600 PN10 ~ PN25
Temperature Range	-20℃~450℃
Application	Steam, high temperature oil, natural gas, weak acid and alkali, etc.
Drive Mode	Manual Lever, Gear Operated, Pneumatic Actuated, Electric Actuated
Valve Body/Valve Cover	Al - Bronze
Sealing Surface	Use hard alloy (such as Stellite) or stainless steel surfacing material
Valve Seat	Metal sealing surface (such as stainless steel or bronze) with elastic graphite sealing ring
Valve Stem	Stainless Steel 316, 304
Valve Stem Nuts	Brass. Stainless Steel

Precautions

When using a Bronze Triple Eccentric Wafer Butterfly Valve, ensure proper alignment during installation to avoid flange stress. Avoid operating the valve with excessive torque to prevent disc or seat damage. Regularly inspect for leaks and ensure media compatibility with bronze material. Handle with care to maintain sealing performance and prevent mechanical damage.
