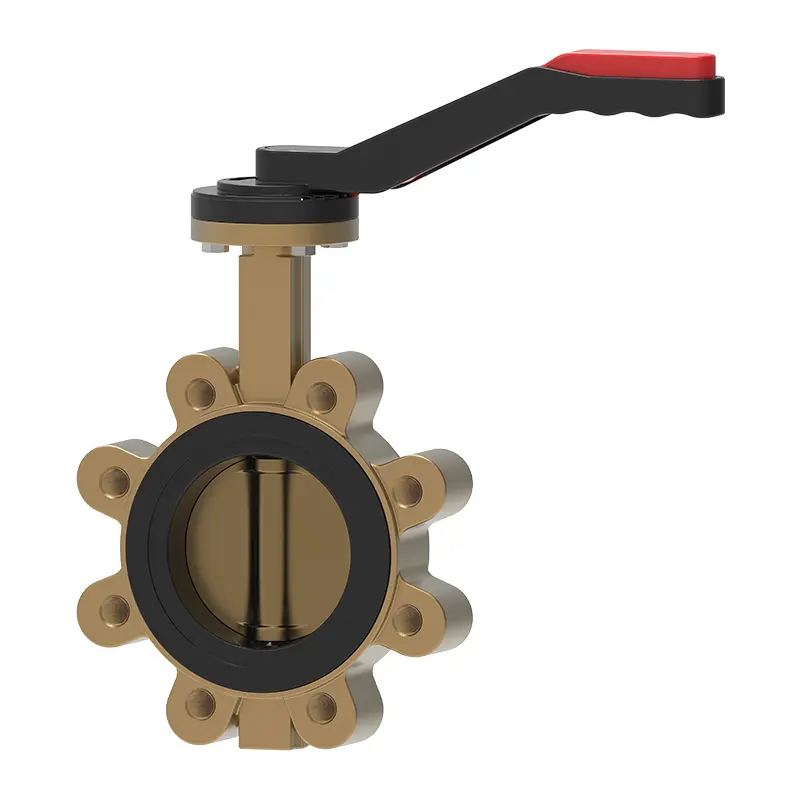

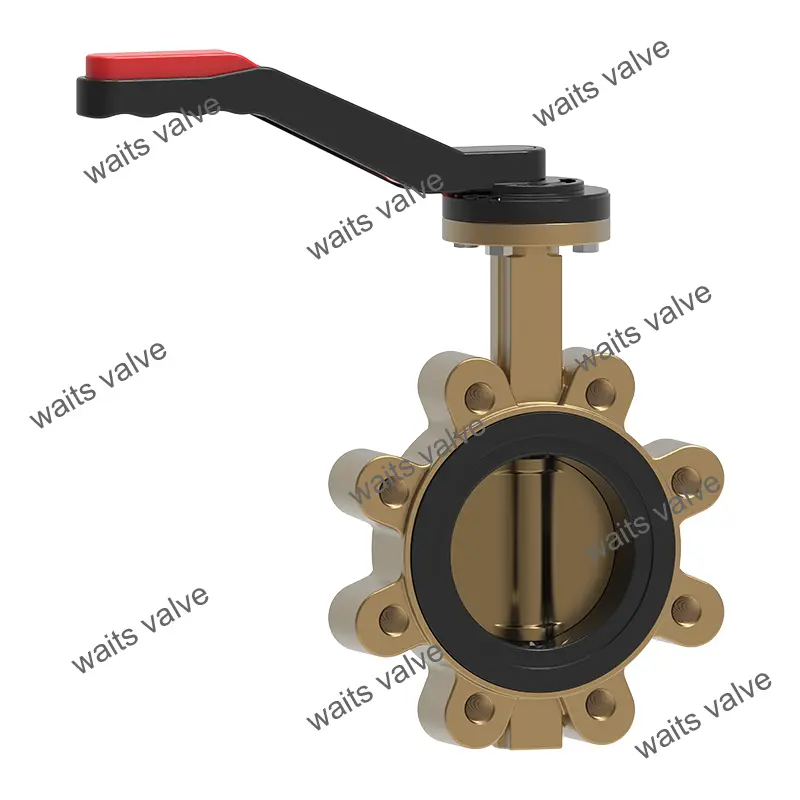

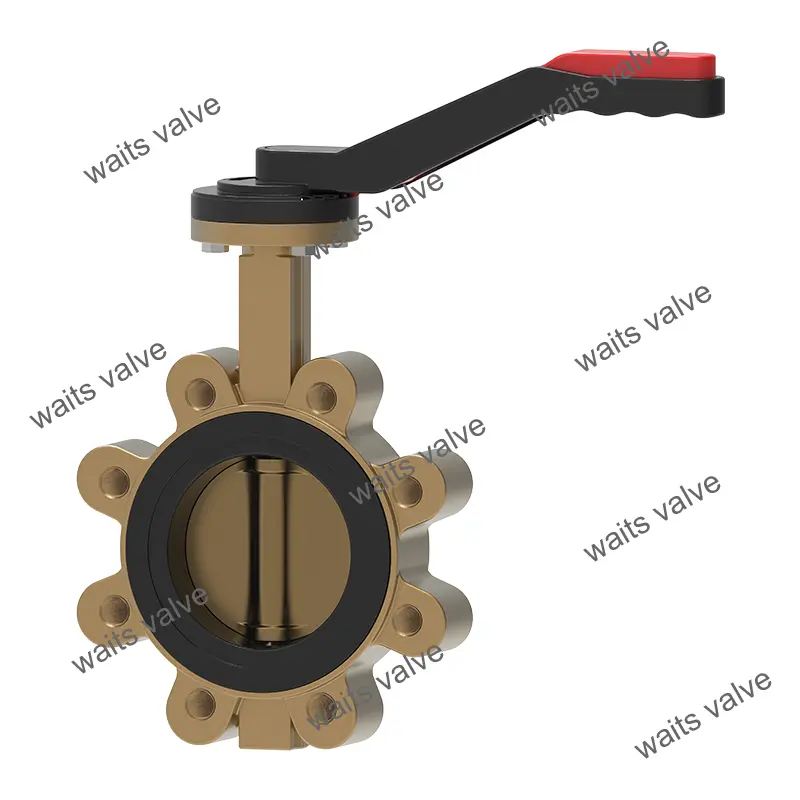

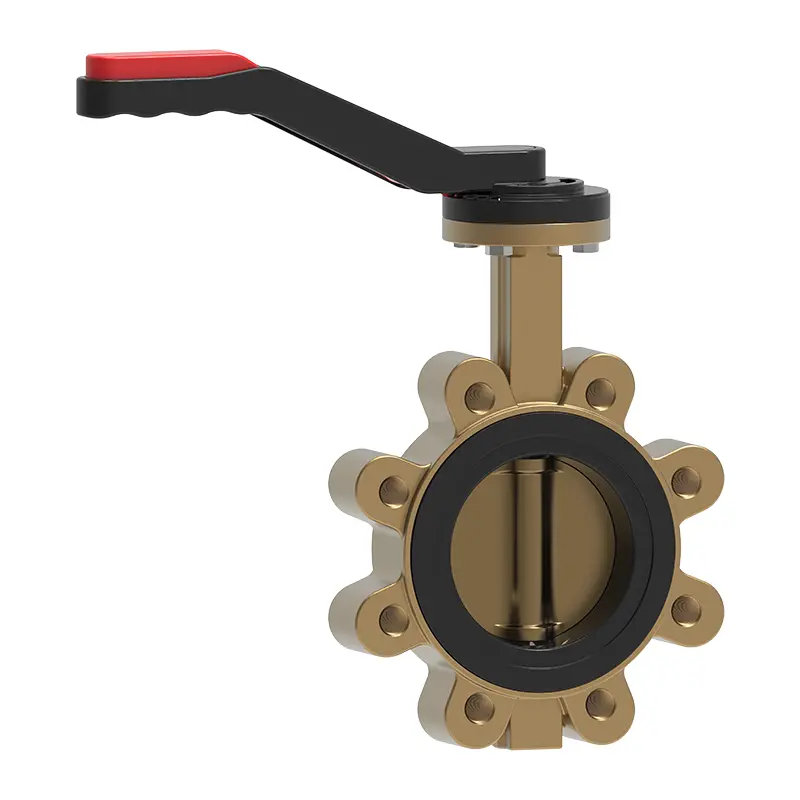

Bronze Lug Wafer Butterfly Valve

Waits Valve Bronze Lug Wafer Butterfly Valve can achieve bidirectional dead-end service without downstream flanges and achieve airtight closure at 200 PSI. It adopts double/triple eccentric design, compact and lightweight structure, easy installation and maintenance, and various operation modes, suitable for complex working conditions.

Send Inquiry

Product Description

Waits Valve Bronze Lug Wafer Butterfly Valve is an ideal product for commercial and some light industrial process applications, including HVAC and vacuum services, as well as hot and cold drinking water. The valve has a compact structure, small size, light weight, and is extremely convenient to install, disassemble and maintain. At the same time, it can adapt to multiple operation modes, fully meet the system requirements of different degrees of automation, and operate stably and reliably under various complex working conditions.

Implementation Standards-Bronze Lug Wafer Butterfly Valve
Design Standards	API 609, EN593
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092
Connection	RF, FF,
Test Acceptance	API 598 EN12266
Structure Length	API609/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	/
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175

Application-Bronze Lug Wafer Butterfly Valve
Size	NPS 1 1/2″~ NPS 24″ DN40~ DN600
Pressure Range	CL125~CL300 PN10 ~ PN50
Temperature Range	-30℃~200℃
Application	Water, seawater, oil, natural gas, weakly corrosive liquids and food-grade fluids
Drive Mode	lever, electric, pneumatic, hydraulic, gear
Valve Body	Al - Bronze
Valve Core	Al - Bronze
Valve Stem	Stainless Steel 416, 316, 304 or Al - Bronze

Performance Characteristics

Waits bronze lug wafer butterfly valve adopts aluminum bronze structure, which is suitable for various corrosive media such as seawater, acid and alkali. It can effectively resist medium erosion and extend the service life of the valve.

The soft seal structure minimizes the leakage of media when closed, which is very suitable for applications with high sealing requirements. Easy to operate, just rotate 90° to quickly open or close the valve, with small operating torque, labor saving and light.

When fully opened, the thickness of the valve disc is the only resistance to the flow of media through the valve body, thus achieving minimal pressure drop and excellent flow control.

Finally, the compact and lightweight design makes it easy to install and maintain, and can be easily disassembled, repaired and installed in any position in addition, its relatively simple structure simplifies maintenance work.
