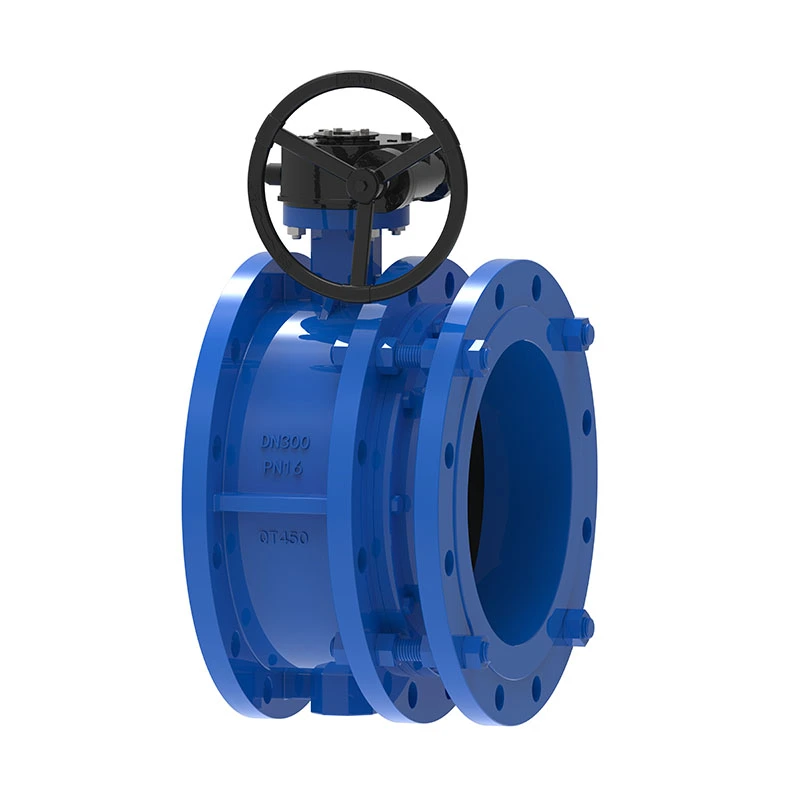

Telescopic Concentric Butterfly Valve

Implementation Standards Design StandardAPI 609, EN 593, BS 5155, GOSTEnd StandardANSI B16.1 CL. 125LB and B16.5 CL. 150LBDIN 2501 PN6/PN10/PN16/,EN 1092 PN6, PN10 and PN16AS 2129 Table D and E BS 10 Table D and EMSS SP44 CL. 150LBAWWA C207 150LBISO 2531 PN6, PN10 and PN16ISO 7005 PN6, PN10 and PN16......

Send Inquiry

Product Description

Implementation Standards

Design Standard	API 609, EN 593, BS 5155, GOST
End Standard	ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 and PN16 AS 2129 Table D and E BS 10 Table D and E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 and PN16 ISO 7005 PN6, PN10 and PN16
Inspection & Test	API 598, IS0 5208, EN 12266-1, GOST
Face to Face	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Application

Operating Temperature	-45℃~150℃
Size	2"-80", DN50-DN2000
Working pressure / CWP	16BAR 10BAR
Shell	24BAR 15BAR
Seal	18BAR 10BAR
Air Test	6BAR 6BAR
Operating Environment	Ballast and bilge system Chemical processing Desalination plants, Drilling rigs, Drinking water Dry powder, Food and beverage, Gas plants HAVC Mining industry, Paper industry, Sand handling, Seawater, Sugar industry Thermo technical water treatment Waste water
Operator	Lever, Gear, Electric, Pneumatic, etc.
Body Material	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze, etc.
Disc	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
Stem	2CR13 F304 F316 F51 F53 Monel K500
Seat	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber
