Home > Products > Ball Valve > 3 PCS Flange Floating Ball Valve
3 PCS Flange Floating Ball Valve
  • 3 PCS Flange Floating Ball Valve3 PCS Flange Floating Ball Valve
  • 3 PCS Flange Floating Ball Valve3 PCS Flange Floating Ball Valve

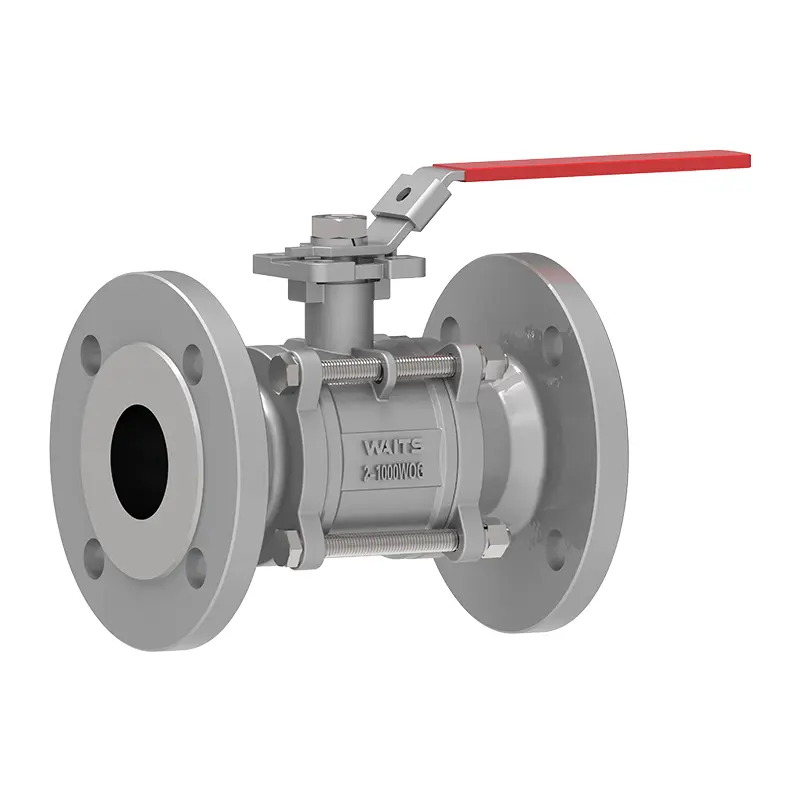

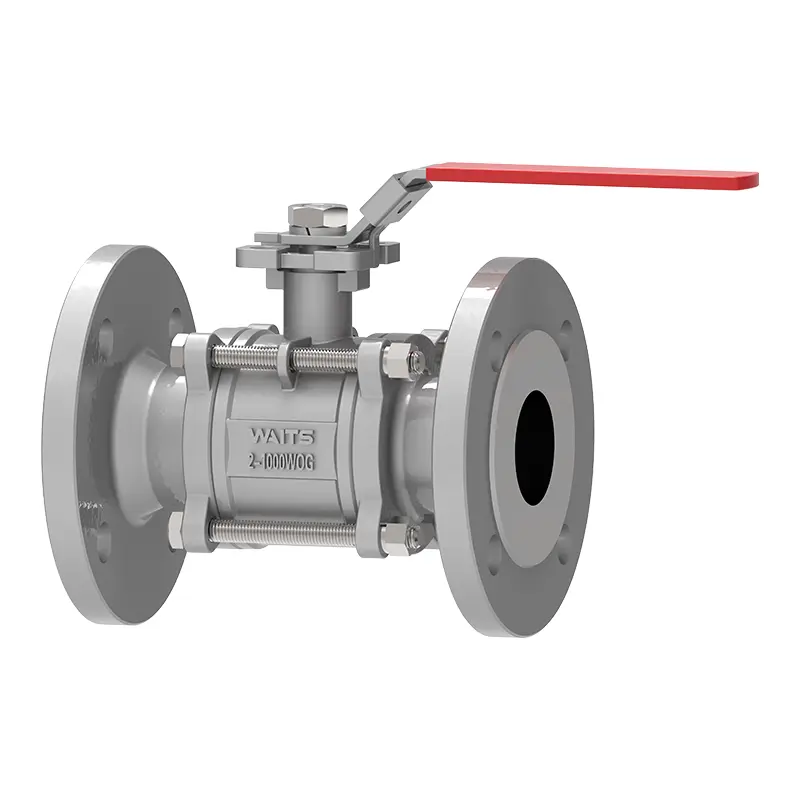

3 PCS Flange Floating Ball Valve

Waits Valve high quality 3 PCS Flange Floating Ball Valve complies with API 608 and ASME standards. Experts who often buy this valve should know what these are for, so I still want to introduce it to novice buyers. Our product adopts forged three-piece valve body and PTFE valve seat, lever operation, and safety functions, which is suitable for reliable fluid control in petrochemical and power industries.

Send Inquiry

Product Description

Waits Valve 3 PCS Flange Floating Ball Valve adopts a three-piece flange design, which was designed by our team after many studies. It is easy to maintain and has a firm seal, suitable for quick installation and removal in pipeline systems. The operating principle of the floating ball mechanism is also simple. It dynamically adheres to the valve seat under fluid pressure, with a reliable closure that allows you to rest assured, thereby providing a tight seal and switching control in various industrial applications. Designed for low torque operation and bidirectional flow, the valve is durable and versatile, suitable for various fluid handling in the chemical, oil and gas industries.


Implementation Standards-3 PCS Flange Floating Ball Valve
Design Standards API 6D, API 608, BS5351
Flange Standard ASME B16.5/ASME B16.47- A/B / EN1092-1/2
Connection RTJ, RF, FF
Test Acceptance API 598 EN12266
Structure Length API6D, ASME B16.10, EN588
Pressure and Temperature Ratings ASME B16.34
Fire Test API 6FA API 607
Low Leakage Standard ISO 15848-1, API 622
Anti-Corrosion Design NACE MR 0175


Application-3 PCS Flange Floating Ball Valve
Size NPS 1/2″~ NPS 12″ DN15~ DN300
Pressure Range CL150~CL600 PN20 ~ PN100
Temperature Range -20℃~180℃
Application Water, oil, gas and other non-corrosive neutral media.
Drive Mode Hydraulic, pneumatic, electric, handle, worm gear
Valve Body/Valve Cover Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5
Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve Core/Internal Parts Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel
Valve Seat PTFE, RPTFE, NBR, EPDM.F304.F316, STL
Valve Stem A182-F6a-F304-F316-F51 17-4PH/XM-19 ...


Precautions
When using 3 PCS Flange Floating Ball Valve, ensure proper alignment during installation. Tighten flange bolts evenly to prevent leakage. Don't use it for throttling, as it may damage the valve. Regularly inspect for wear and check the sealing performance to keep it working well.

3 Pcs Flange Floating Ball Valve3 Pcs Flange Floating Ball Valve





Hot Tags: 3 PCS Flange Floating Ball Valve, China, Manufacturer, Supplier, Factory, Cheap, Quality
