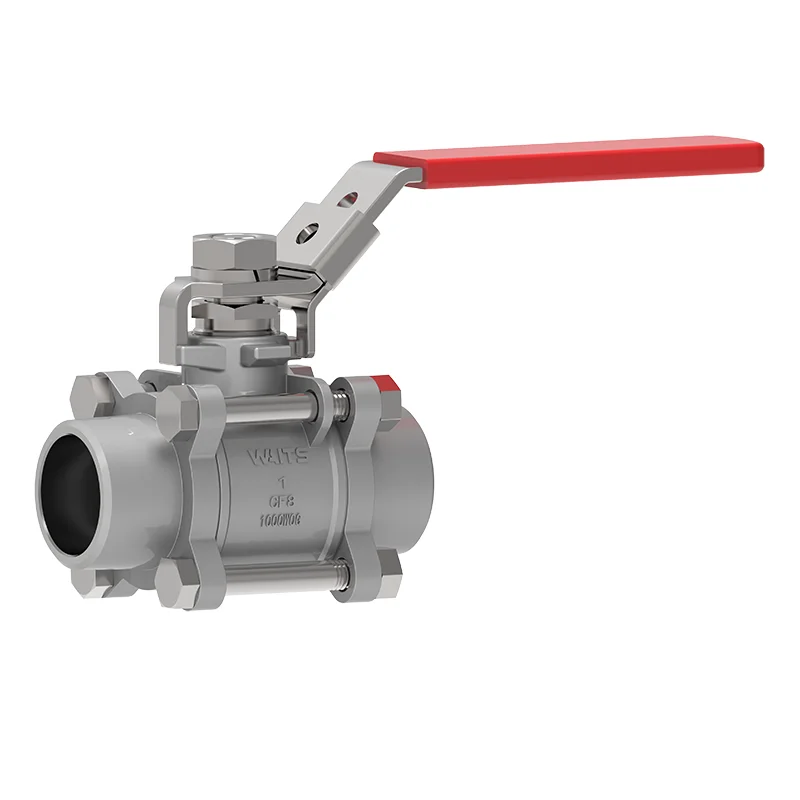

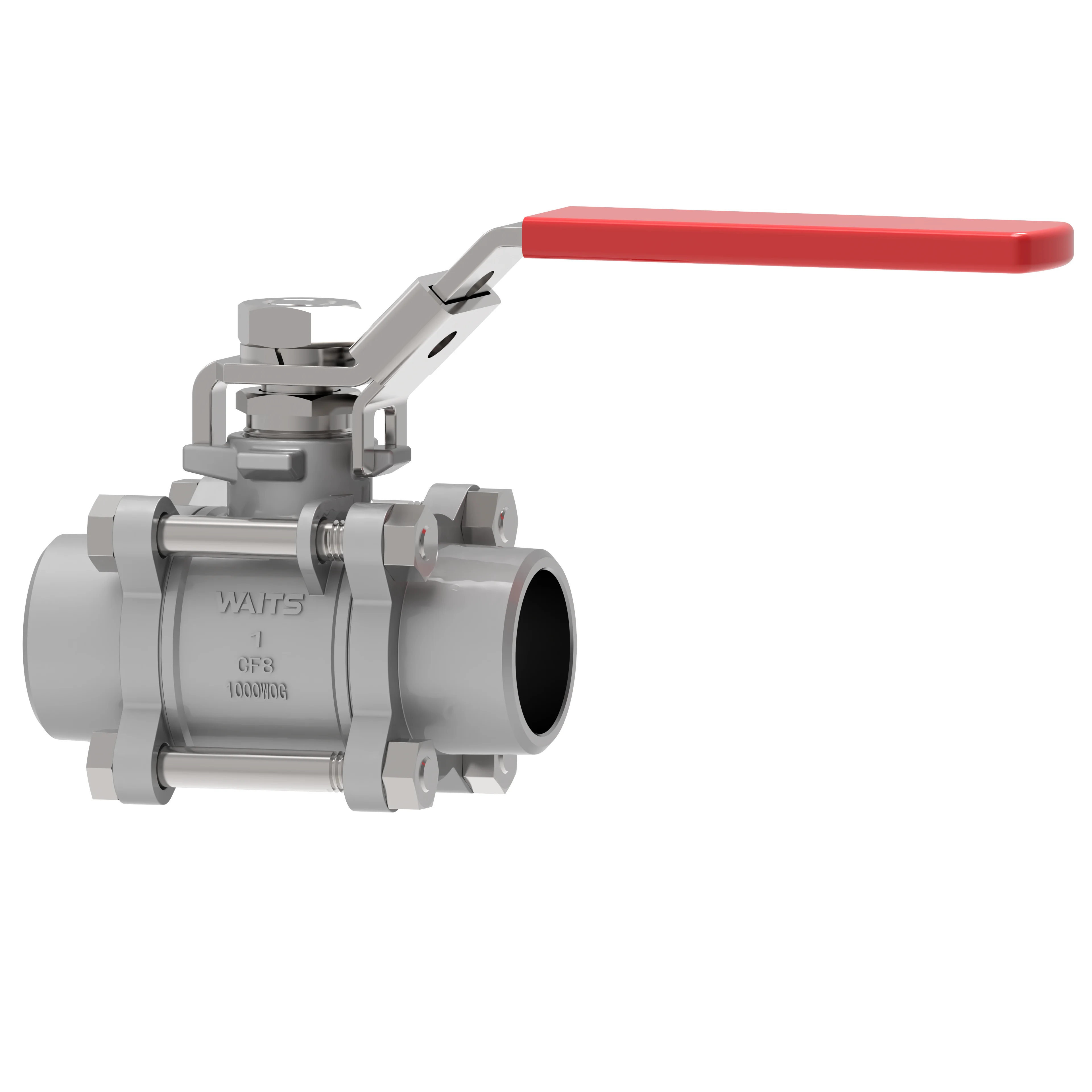

3 PCS Welded Ball Valve‌

Waits Valve 3 PCS Welded Ball Valve‌ adopts high-quality double-seat bidirectional seal to achieve zero leakage. The ball core assembly is usually made of solid or hollow stainless steel with surface hardening. The valve body is usually made of high-strength carbon steel, stainless steel or alloy steel, suitable for harsh working conditions such as high temperature, high pressure and strong corrosion. Waits Valve provides a series of powerful and safe valves.

Send Inquiry

Product Description

Waits Valve high quality 3 PCS Welded Ball Valve‌ consists of left, middle and right valve bodies, which are connected by welding or bolts. This design allows the ball to be removed from the middle, which is convenient for maintenance and replacement of internal parts, greatly reducing the difficulty and cost of maintenance.

Feature:

Full bore

Pipe thread meets API6D/API608/BS5351 and ISO 228 standards

Blowout proof valve stem

Precision cast valve body and valve cover

1000 WOG (63 BAR)

Mounting pads that meet ISO 5211 standards

Implementation Standards-3 PCS Welded Ball Valve‌ ‌
Design Standards	API6D/API608/BS5351
Welding Standards	ASME B16.25 ASME B16.11
Connection	SW, BW
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API6FA API607
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Size	DN15 - DN100
Pressure Range	1.0MPa - 16.0MPa, Class 150LB～2500LB
Temperature Range	-40℃～232℃
Application	Acid and alkali solutions, oil extraction, oil refining, coolant circuits in nuclear power plants, steam piping systems, etc.
Drive Mode	Hydraulic, pneumatic, electric, manual and worm gear drives.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Ball	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel,
Sealing Surface	PTFE, RPTFE, PPL, Metal - to - Metal
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Brass or Stainless Steel
