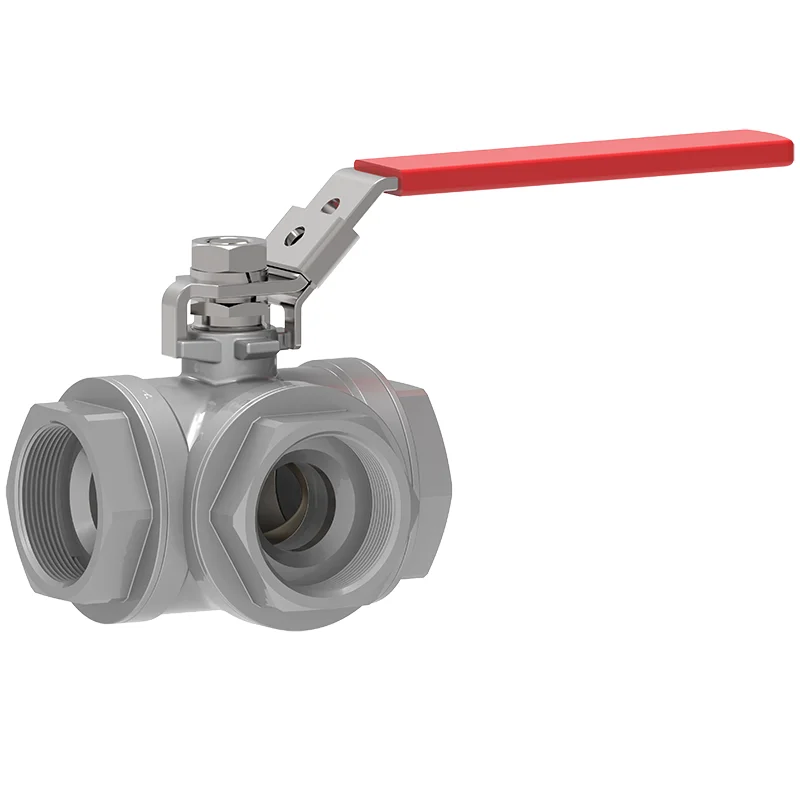

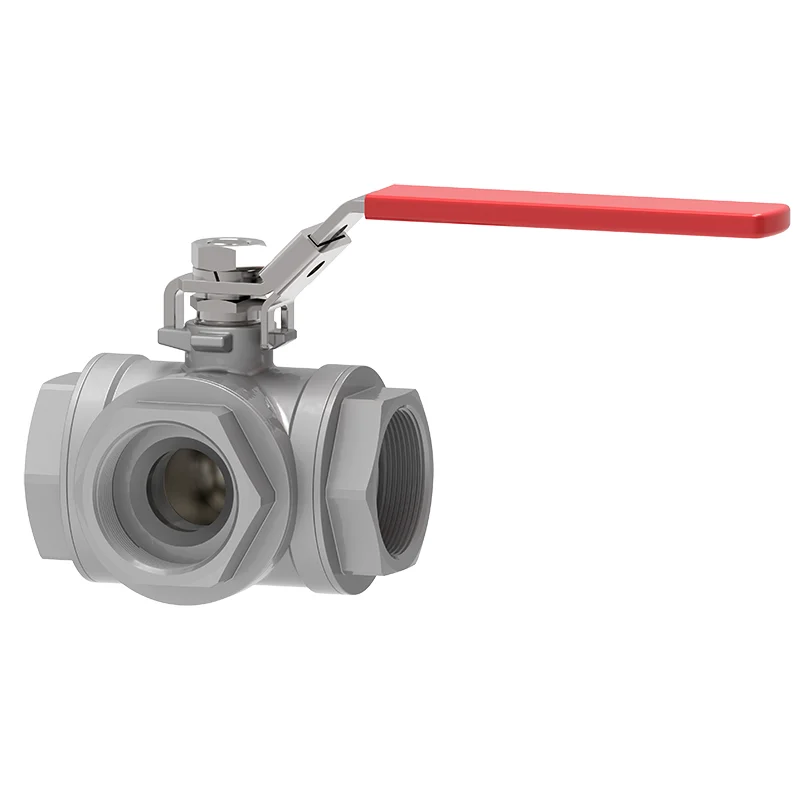

3-Way NPT Ball Valve

Waits Valve 3-Way NPT Ball Valve adopts advanced soft and hard seal structure to achieve ultra low leakage. PTFE soft seal can provide tight sealing under low pressure conditions, while metal hard seal is made of durable materials and precision grinding. When you are in high temperature, high pressure or corrosive environment, your engineers can achieve zero leakage if they use our products.

Send Inquiry

Product Description

The high quality 3-Way NPT Ball Valve designed and produced by Waits Valve mainly consists of valve body, ball, stem and sealing device. The ball, as the core component, cooperates closely with the valve seat to achieve sealing. Each port adopts NPT internal thread for easy installation. The valve stem runs through the valve body and connects with the ball. Rotate the valve stem and the ball rotates in the valve body, thereby realizing the switching and control of the fluid channel.

The 3-Way NPT Ball Valve is our series of stainless steel three way "L-type" manual ball valves. The valve consists of a valve body and end caps for three ports. When multiple flow modes are required, the three way valve can be used to control the flow. These valves can achieve the same effect without installing three way and multiple valves.

If you need to divert media from one source to two different locations, or from multiple sources to one location, a three way ball valve is the ideal choice. Simply turn the handle to switch the tank from which the media is delivered or extracted.

Implementation Standards-3-Way NPT Ball Valve
Design Standards	API6D/API608/BS5351
Thread Standard	ASME ANSI B1.2
Connection	NPT
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API6FA API607
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Application-3-Way NPT Ball Valve
Size	NPS 1/2″~ NPS 6″ DN15~ DN150
Pressure Range	CL150~CL2500 PN10 ~ PN260
Temperature Range	-20℃~400℃
Application	Mixing of liquid medicine, regulating water flow distribution, metallurgy, papermaking, shipbuilding, fuel for ships, etc.
Drive Mode	Hydraulic, pneumatic, electric, manual and worm gear transmission.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Ball	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel,
Sealing Surface	Valve seat seals are generally made of elastic materials such as polytetrafluoroethylene
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Copper alloy
Filler	Asbestos graphite, flexible graphite, polytetrafluoroethylene, iron-based alloy
