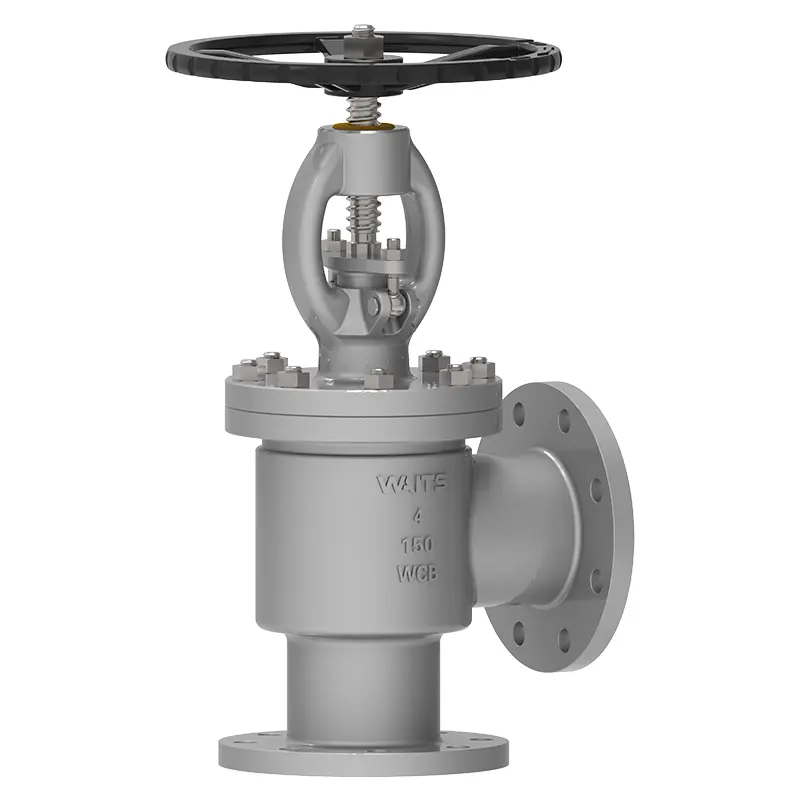

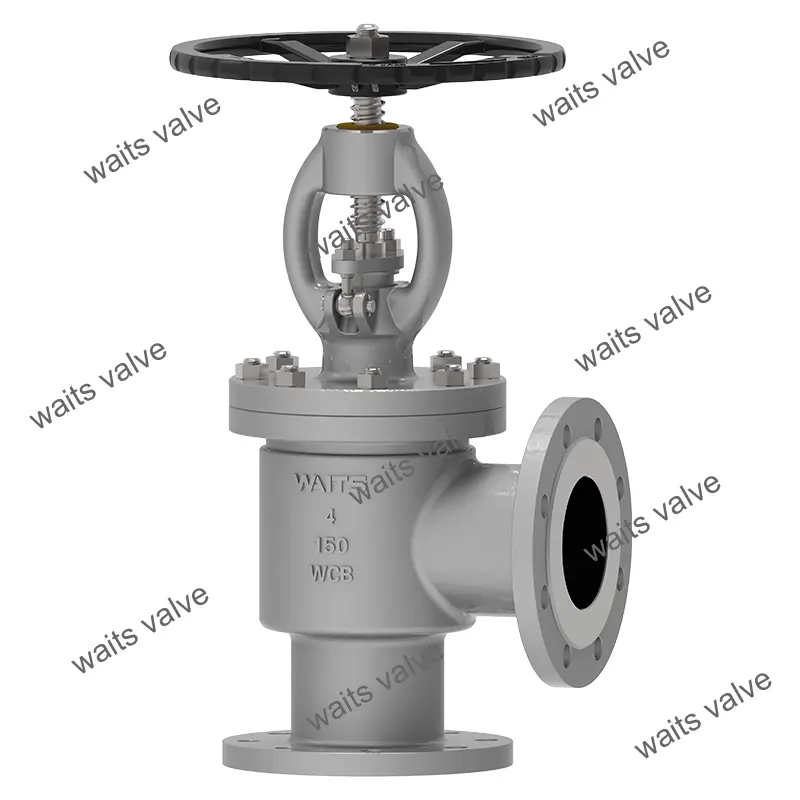

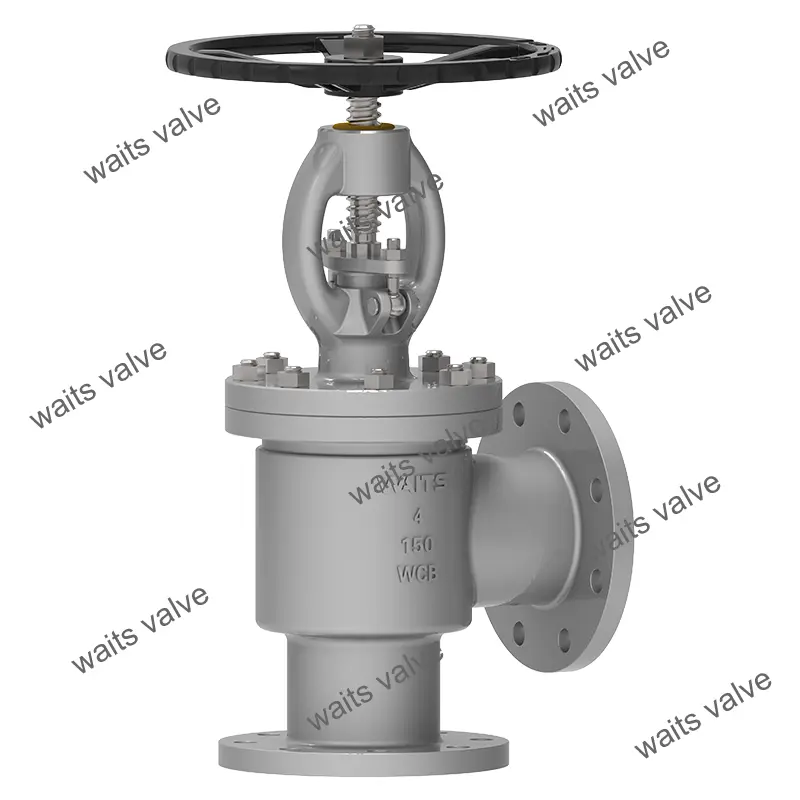

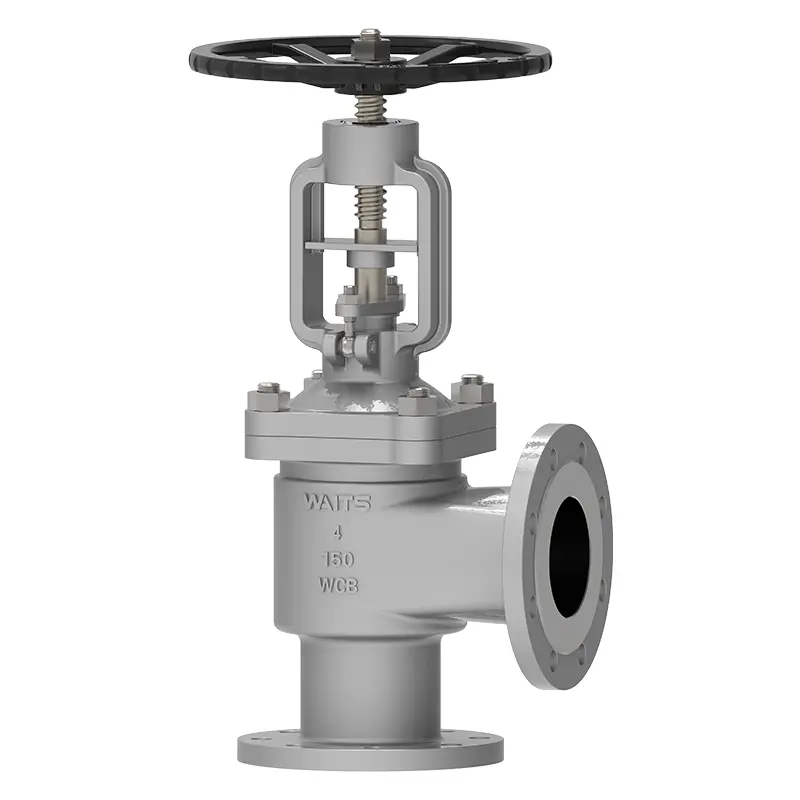

Angle Globe Valve

When you are faced with a unique 90-degree flow channel piping system, you must think of Waits Valve high quality Angle Globe Valve, which has a wide range of applications. We specially use a compact design to save space and simplify pipeline routing. When you are faced with a small space or limited installation, you can use this valve.

Send Inquiry

Product Description

Waits Valve Angle Globe Valve can control the flow of fluid media by rotating the valve stem to raise or lower the valve disc. Its 90 degree right angle flow channel design breaks the traditional direct current valve structure, effectively reducing fluid resistance and energy consumption. In complex applications with limited installation space, its compact design has obvious advantages, saving engineers a lot of trouble and reducing time waste in this regard.

Angle Globe Valve is a stop valve design with inlet and outlet perpendicular to each other. It uses linear motion to move the closing piece in and out of the valve seat surface. Angle valves are commonly used for boiler feedwater and heater drain services, as well as pipeline valves with limited space. The valve can also be used as an elbow. The valve can be cage type, or with an enlarged outlet connection, a restrictive valve trim or an outlet liner to reduce corrosion, flashing or cavitation damage.

Implementation Standards-Angle Globe Valve
Design Standards	API6D BS1873, DIN 3356, EN 13709
Flange Standard	ASME B16.5, ASME B16.47--A/B, EN 1092-1/2
Connection	RF, RTJ
Test Acceptance	API 598 EN12266
Structure Length	ASME B16.10/EN 558/DIN3203,
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607, API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Application-Angle Globe Valves
Size	DN15~DN300（NPS½"~12"）
Pressure Range	PN16~PN160（Class150~900）
Temperature Range	-29℃～+570℃
Application	Acid/alkali liquid, liquefied natural gas, high viscosity oil, underground pipeline network, equipment integration module, etc.
Drive Mode	Handwheel, bevel gear, electric, pneumatic, etc.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing Surface	Body, body cladding iron-based alloy, cladding hard-based alloy
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Copper alloy
Filler	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Characteristics

In the fertilizer industry, the valve challenges in the production of urea and ammonia are corrosive media, crystallization and high pressure. Waits Valve developed Angle Globe Valves, which have the following advantages:

Low pressure drop, reduced crystallization

No dead angle, prevent corrosion

One-piece valve plate and valve stem, prevent dead angle between valve plate and valve stem

All-Stellite alloy valve plate surface, reduce wear

Bolted valve cover, Class A sealing valve body-valve cover and valve body-valve body flange gasket

Low emission valve stem packing

No aluminum/bronze parts

Body, body cladding iron based alloy, cladding hard-based alloy

Angle Globe Valves can be used for acid/alkali liquid, liquefied natural gas, high viscosity oil, underground pipeline network, equipment integration module, etc.

You can drive it by handwheel, bevel gear, electric, pneumatic, etc.
