Cast Steel Globe Valve

Waits' cast steel globe valve is of favorable price, excellent quality and high cost performance. We were founded in the United States in 1994 and established a branch in China in 2008. We have two production bases in Wenzhou and Tianjin. Cast steel globe valve can accurately control fluids and is a high-quality choice for pipeline fluid control. It is deeply favored by the international market, especially in Europe, America, the Middle East and other regions.

Send Inquiry

Product Description

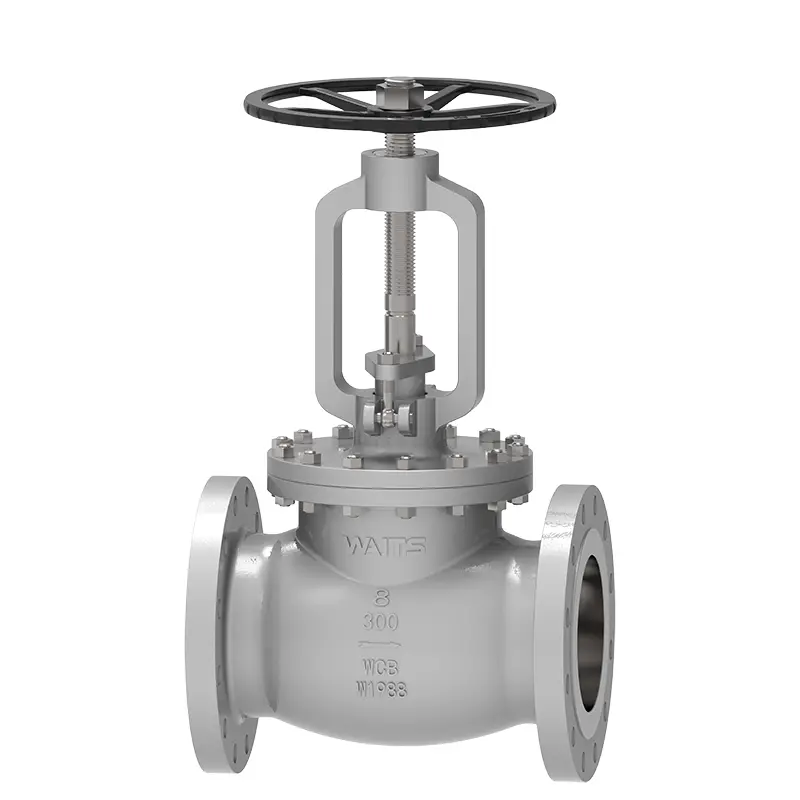

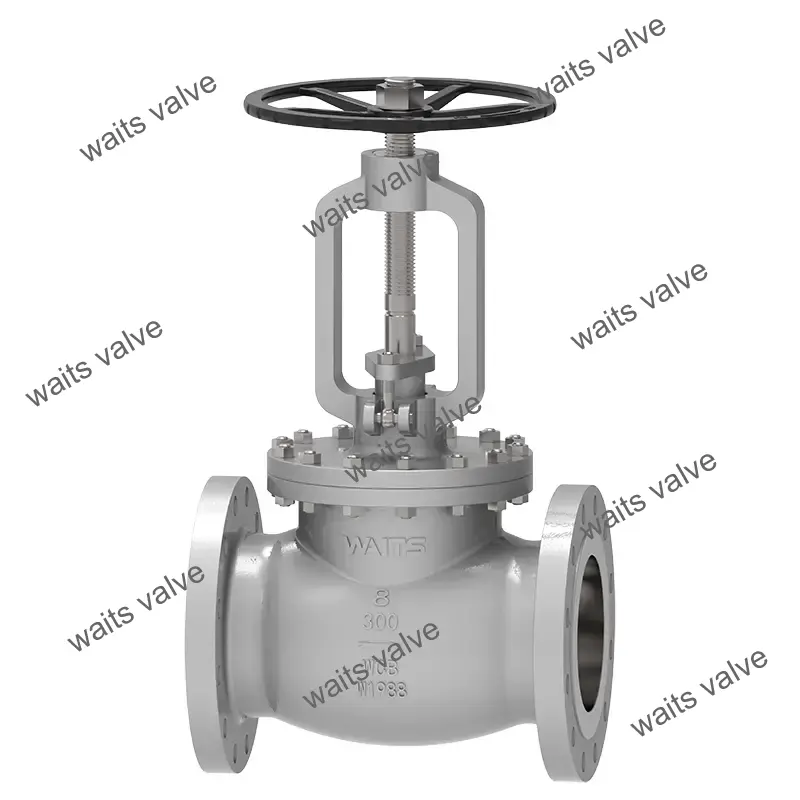

Bolted bonnet cast steel globe valve is a stop valve with bolted body and cover, and a gasket or octagonal sealing ring is installed in the middle as a seal. According to the different installation positions, the globe valve can be divided into straight-through globe valve (T-type globe valve) and direct-flow globe valve (Y-type globe valve). Since the valve stem has a relatively short opening or closing stroke and has a very reliable cut-off function, and since the change of the valve seat opening is proportional to the stroke of the valve disc, it is very suitable for regulating the flow. It can be used for cutting off, regulating and throttling fluid pipelines such as tap water, sewage, construction, food, electricity, medicine, metallurgy, textile, energy, etc. The globe valve is generally connected to the pipeline by flange connection or welding connection. The optional drive devices are: handwheel, bevel gear, electric, pneumatic, etc.

Implementation Standards

Design Standard	ASME B16.34, BS 1873, EN 558-1, GOST
Flange standards	ASME B 16.5, ASME B16.47, DIN2543, DIN2544
End Connection	RF, RTJ, BW, etc.
Inspection & Test	API 598, DIN 3230, GOST
Face to Face	ASME B16.10, DIN 3202, EN 1092-1
Pressure and temperature ratings	ASME B16.34
Fireproof test	API607, API6FA
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	2"-24", DN50-DN600
Pressure Rating	Class 150-1500, PN10-PN260
Operating Temperature	-60°C~ 450°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Operator	HW, Gear, Electric, Pneumatic, etc.
Body Material	Carbon Steel, Stainless Steel, Duplex Stainless Steel, Alloy Steel, Monel, Al Bronze, etc.
Sealing surface	Body, body cladding iron-based alloy, cladding hard-based alloy
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. Cast steel globe valve relies on the valve stem pressure to make the valve disc sealing surface and the valve seat sealing surface fit closely to prevent the flow of medium. It belongs to the F forced sealing valve.
2. The media flow direction of globe valve is "low in and high out" and "high in and low out". The medium is only allowed to flow in one direction and has directionality during installation.
3. The structural forms of the valve body are straight-through, direct-flow and right-angle.
4. When the globe valve is opened, when the opening height of the valve disc reaches 25% to 30% of the nominal diameter of the stop valve, the flow rate has reached the maximum, indicating that the stop valve has reached the fully open position.
5. The valve structure is simpler than the gate valve, and it is more convenient to manufacture and maintain.
6. The sealing surface is not easy to wear and scratch, and the sealing performance is good. There is no relative sliding between the valve disc and the valve body sealing surface during opening and closing, so the wear and scratch are not serious, the sealing performance is good, and the service life is long.
7. When opening and closing, the valve disc stroke is small, so the height of the globe valve is smaller than that of the gate valve, but the structural length is longer than that of the gate valve.
8. The opening and closing torque is large and requires more effort.
9. The fluid resistance is large because the medium channel in the valve body is tortuous, the fluid resistance is large, and the power consumption is large.
10. The valve disc is often eroded when fully opened.

Cast Steel Globe Valve
