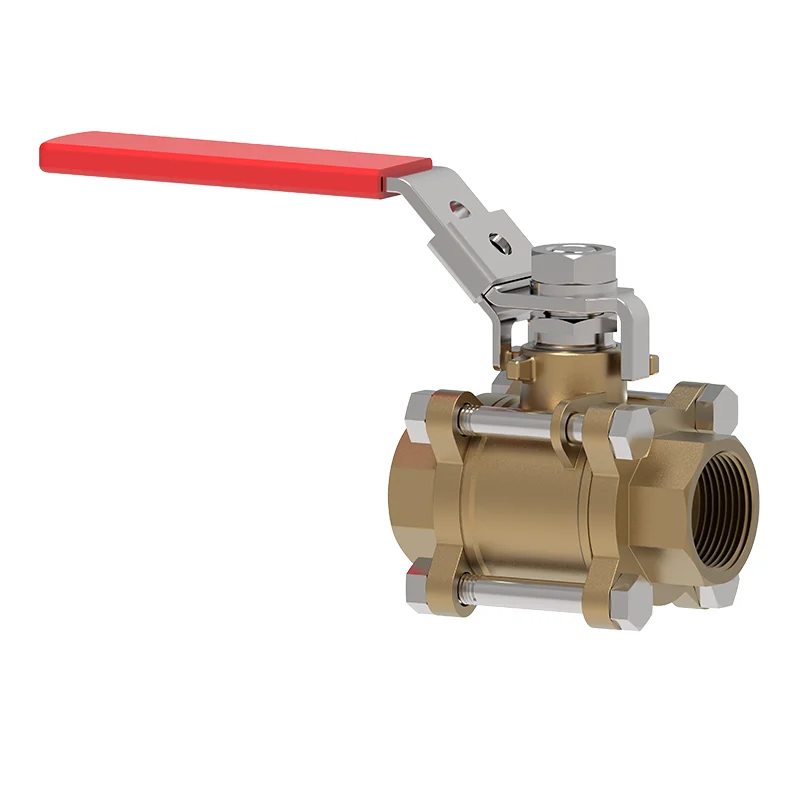

Bronze Three-Piece NPT Ball Valve

The Waits Bronze Three-Piece NPT Ball Valve, precision cast from aluminum bronze, resists corrosion and pressure. Its three-piece design enables easy maintenance, zero-leakage, and precise flow control. NPT threads and multiple actuations suit petrochemical, marine, and water systems.

Send Inquiry

Product Description

The Bronze Three-Piece NPT Ball Valve controls opening and closing by rotating the ball. When the ball's channel aligns with the pipeline axis, the valve is fully open for unobstructed media flow; when the ball rotates 90 degrees, its sealing surface tightly fits the valve seat to block flow and close the valve. It features simple operation and quick actuation, requiring only a 90-degree rotation from full open to full close with relatively low torque. Aluminum bronze—a copper alloy with aluminum as the primary alloying element—offers high strength, good wear/corrosion resistance, and fatigue resistance. For highly corrosive media like seawater or weak acid solutions, this three-piece NPT ball valve provides reliable sealing and long service life, making it suitable for chemical, marine, and offshore engineering applications.

Implementation Standards-Bronze Three-Piece NPT Ball Valve
Design Standards	API6D/API608 BS5351
Flange Standard	ASME B1.20 EN 10226
Connection	NPT
Test Acceptance	API 598 EN12266
Structure Length	DIN3203, ASME B16.10
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175

Application-Bronze Three-Piece NPT Ball Valve
Size	NPS 1/4″~ NPS 4″ DN6~ DN100
Pressure Range	CL150~CL600 PN10 ~ PN63
Temperature Range	-20℃~260℃
Application	In industry, it is suitable for chemical, petroleum, natural gas, metallurgy, electric power and other industries to transport various fluid media, such as steam, water, oil, gas and certain corrosive liquids; in the civil field, it can be used in building water supply and drainage, HVAC and other systems to achieve control of water, gas and other media.
Drive Mode	Lever Operated, Gear Operated, Pneumatic Operated, Electric Operated
Valve Body/Valve Cover	Al - Bronze
Sealing Surface	PTFE (polytetrafluoroethylene), RTFE (reinforced polytetrafluoroethylene) or metal hard seal
Valve Stem	Stainless Steel 316, 304 or case-hardened copper alloy
Valve Stem Nuts	Brass. Stainless Steel
Filler	Asbestos graphite, flexible graphite, polytetrafluoroethylene, iron-based alloy

Precautions

When using the Bronze Three - Piece NPT Ball Valve, be cautious. Ensure proper installation as it's not restricted by direction. Avoid over - tightening to prevent damage. For media like corrosive liquids, check compatibility regularly. Also, inspect for leakage frequently to maintain its functionality.
