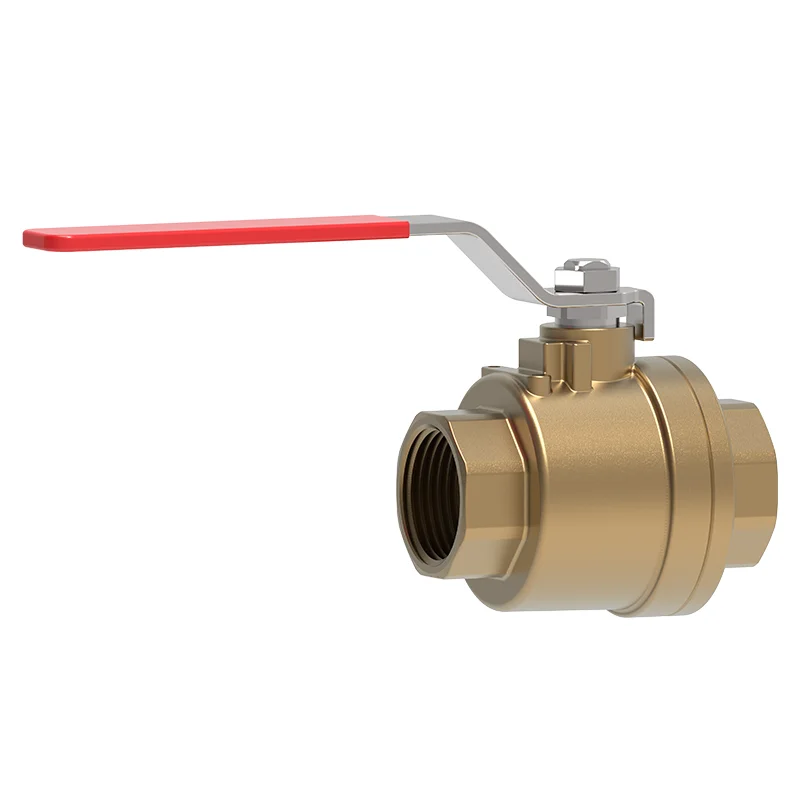

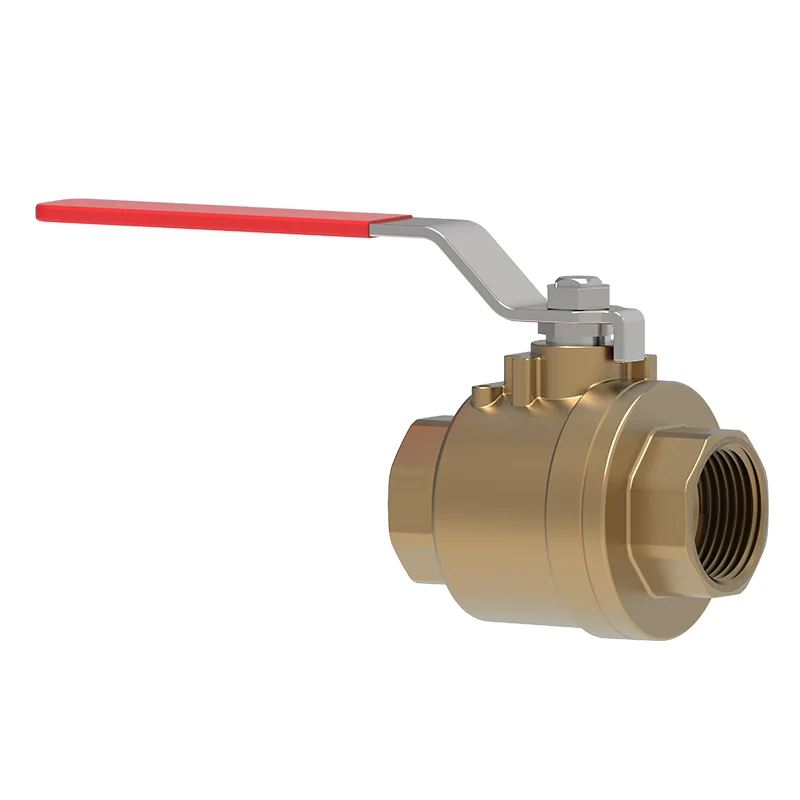

Bronze Two-Piece NPT Ball Valve

The Waits Bronze Two-Piece NPT Ball Valve, with durable aluminum bronze body for corrosion resistance, features a two piece design and precision ball for zero-leakage sealing. NPT threads allow easy install/actuation, ensuring reliable fluid control in diverse environments.

Send Inquiry

Product Description

The Waits Bronze Two-Piece NPT Ball Valve controls opening and closing by rotating the ball. When the ball's channel aligns with the pipeline axis, the valve is fully open, allowing media to flow freely; when the ball rotates 90 degrees, the sealing surface on the ball fits tightly with the valve seat, blocking media flow and closing the valve. It is easy to operate and quick to open/close, requiring only a 90-degree rotation from fully open to fully closed with relatively low operating torque. Aluminum bronze, a copper alloy with aluminum as the main alloying element, offers high strength, good wear resistance, corrosion resistance, and fatigue resistance. For highly corrosive media such as seawater and weak acid solutions, the aluminum bronze two-piece NPT ball valve provides reliable sealing and long service life, making it suitable for applications in chemical, marine, and offshore engineering industries.

Implementation Standards-Bronze Two-Piece NPT Ball Valve ‌
Design Standards	API6D/API608 BS5351
	ASME B1.20 EN 10226
Connection	NPT
Test Acceptance	API 598 EN12266
Structure Length	DIN3203, ASME B16.10
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175

Application-Bronze Two-Piece NPT Ball Valve ‌
Size	NPS 1/4″~ NPS 2″ DN6~ DN50
Pressure Range	CL150~CL300 PN10 ~ PN40
Temperature Range	-20℃~250℃
Application	Water, steam, oil, natural gas, weakly corrosive liquids, etc., are widely used in chemical industry, shipbuilding, water supply and drainage, HVAC and other fields
Drive Mode	Lever Operated, Gear Operated, Pneumatic Operated, Electric Operated
Valve Body/Valve Cover	Al - Bronze
Sealing Surface	PTFE,
Valve Stem	Copper alloy is often used with chrome plating, or stainless steel (304/316) is used.
Valve Stem Nuts	Brass. Stainless Steel
Filler	Asbestos graphite, flexible graphite, polytetrafluoroethylene, iron-based alloy

Performance Characteristics

The Bronze Two-Piece NPT Ball Valve features a two-piece design composed of two main valve body parts assembled via bolts or other connections for easy installation, disassembly, and maintenance without removing the entire pipeline system to save time and cost, uses a spherical sealing element with aluminum bronze material on the ball for good corrosion and wear resistance as the ball rotates around the axis to open/close with unobstructed flow and low resistance when fully open, and adopts NPT connection for good sealing and strength to conveniently connect with other pipes, fittings, or equipment with corresponding thread interfaces in various installation environments.
