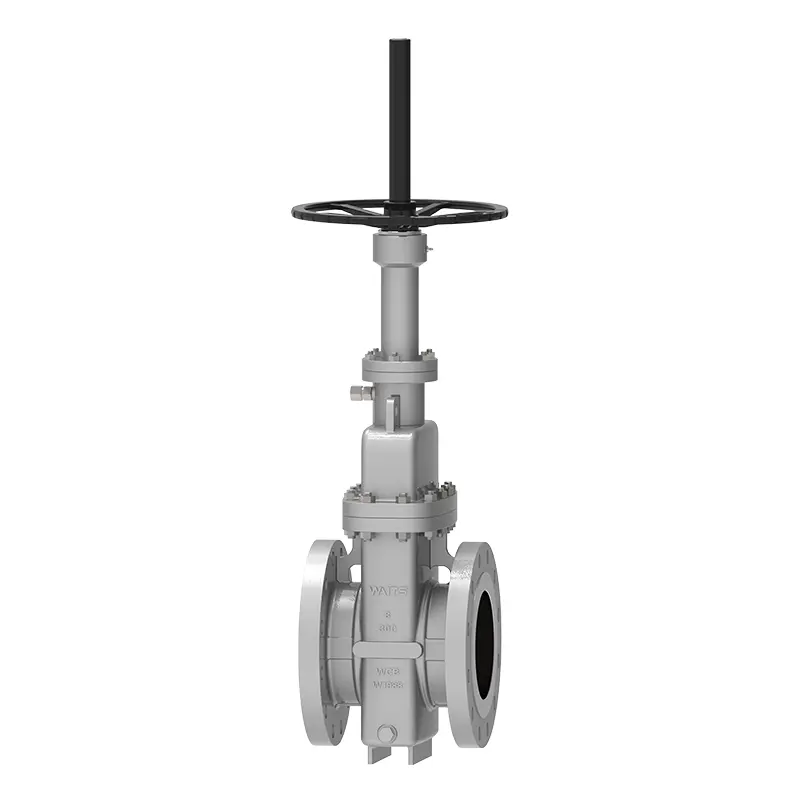

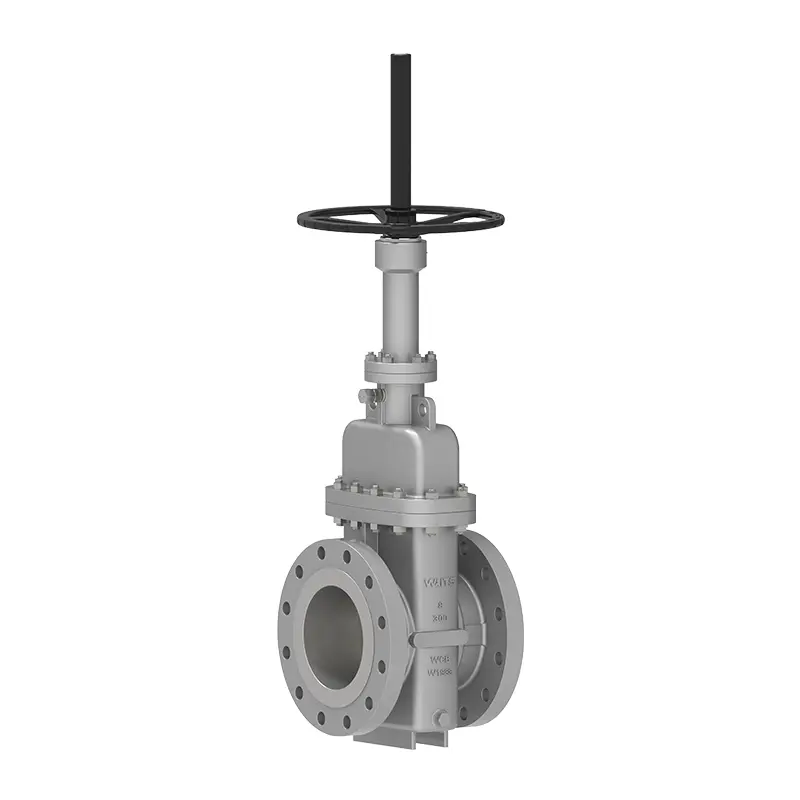

Waits Valve Double Disc Flat Gate Valve uses two high quality parallel gates to provide dynamic sealing compensation through spring or wedge mechanisms. The details of this product can give you various degrees of security, and you can use our products with confidence. Waits Valve's double disc flat gate valve is the valve for your industrial piping system.
Waits Valve is one of the largest Double Disc Flat Gate Valve industrial suppliers in China, dealing in a variety of materials, including stainless steel, steel, bronze and iron. This product is suitable for various types of media, including gas, liquid and mixtures containing solid particles.
Let Waits Valve introduce this product to you:
Gate valves, also known as knife valves, are used to control fluid flow as you can imagine. Gate valves are used for linear motion and are equipped with a flat closing element that slides into the fluid and closes the fluid. They are one of the most commonly used valves.
Double Disc Flat Gate Valve can cut off mud and other viscous substances such as heavy oil, grease, molasses, varnish, thick cream, etc. However, they can be used for throttling, but excessive throttling will cause wear on the disc and seat of the gate valve.
Implementation Standards-Double Disc Flat Gate Valve | |
Design Standards | API 600, API6D |
Flange Standard | ASME B16.5, ASME B16.47-A/B, EN1092-1/2 |
Connection | RF, FF, RTJ |
Test Acceptance | API 598 EN12266 |
Structure Length | ASME B16.10 |
Pressure and Temperature Ratings | ASME B16.34 |
Fire Test | API607, API6FA |
Low Leakage Standard | API 622 |
Anti-Corrosion Design | NACE MR 0175 |
|
|
Application-Double Disc Flat Gate Valve | |
Size | DN50~DN1200, NPS2"~NPS48" |
Pressure Range | PN16~PN100, Class 150~Class 600 |
Temperature Range | -29℃~121℃ |
Application | Natural gas, oil, steam, water, corrosive liquids, etc. |
Drive Mode | Handwheel, bevel gear, electric, pneumatic, etc. |
Valve Body/Valve Cover |
Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2 |
Valve Disc |
Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel, Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2 |
Sealing Surface | Main body, main body cladding iron-based alloy, cladding hard-based alloy |
Valve Stem | A182-F6a-F304-F316-F51 17-4PH/XM-19 ... |
Valve Stem Nut | Copper alloy |
Filler | Flexible graphite, graphite asbestos packing, polytetrafluoroethylene... |
Main Applications of Products
1. Double Disc Flat Gate Valve People take it into the warehouse for oil and gas pipelines and wellhead equipment.
2. Suitable for corrosive media and high temperature and high pressure systems.
3. People often use this valve in steam and water circulation systems.
4. Suitable for high temperature and high pressure smelting and transportation processes.
5. Suitable for harsh environments such as fuel oil and seawater.
