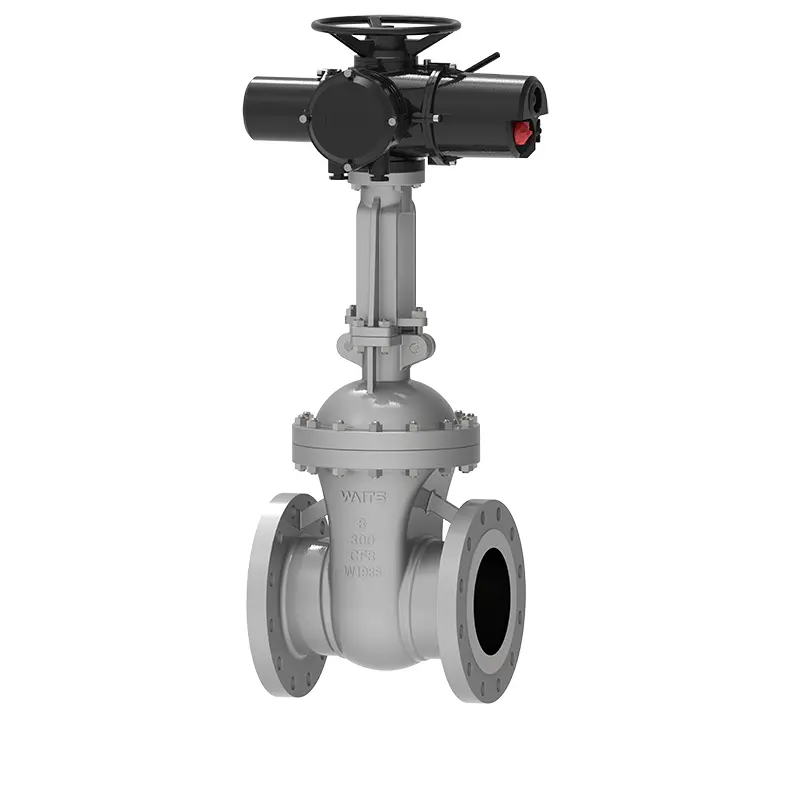

Electric API 600 Gate Valve

The electric API 600 gate valve is an advanced and high-quality valve product designed and manufactured by Waits. We are professional and are still learning and advancing, keeping pioneering and innovative. The valve products have good sealing performance, easy operation, can efficiently control the medium flow in the industrial pipeline system, and are affordable.

Send Inquiry

Product Description

he electric API 600 gate valve is a very useful valve even in different industrial fields, and the factory price that we can provide you is cheap and cost-effective. Waits Valve fully considered the sealing and wear resistance of the product during the design and manufacturing process, and in order to make the valve run stably for longer time, we choose high-quality materials, strict production and quality inspection processes are used throughout the process.

This valve is widely used in industrial pipeline systems in Southeast Asia, North America, Europe and other regions, and is commonly used in petroleum, chemical industry, water conservancy, etc.

Implementation Standards

Design standards	API 6D API600, API603, ASME B16.34, DIN 3352, EN1984
Flange standards	ASME B 16.5, ASME B16.47, DIN2543, EN1092-1, DIN2545;
Connection methods	RF, RTJ, BW
Testing and acceptance	API598, API6D, DIN 3230, EN 12569
Structural length	ASME B16.10, DIN3202, EN 558-1
Pressure and temperature ratings	ASME B16.34、
Fireproof test	API607, API6FA
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS 2″ ~ NPS 48″ DN50~ DN1200
Pressure range	CL150~ CL2500 PN10~ PN420
Temperature range	；-40°C ~ +600°C
Application range	Tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electricity, shipbuilding, metallurgy, energy system, etc.
Drive mode	Turbine, pneumatic, electric
Valve body/valve cover	(A216 WCB, WC6, WC9, LCB, CF8, CF8M, CF3, CF3M, 4A,5A,6A), Alloy 20, Monel...
Valve plate/valve seat	WCB,WC6,WC9 LCB, CF8, CF8M, CF3, CF3M+D507,STL
Valve stem	F6A F304 F316 F51 F53 Monel K500
Valve stem nut	Copper Alloy
Packing	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Features

1. The gate of the valve has two sealing surfaces, forming a wedge shape. The wedge angle varies with the valve parameters, usually 5°. The sealing principle of the electric API 600 gate valve is to achieve sealing by tightly combining these two sealing surfaces with the two sealing surfaces on the valve body when they are wedged.

2. According to the different ways in which the valve stem drives the gate to open and close, it can be specifically divided into rising stem gate valves and concealed stem gate valves. According to the different forms of the gate structure, it can be divided into elastic gate valves and rigid gate valves.

3. The valve body of this valve is a casting, which is connected to the valve cover with bolts, and the middle flange is sealed with a spiral wound gasket. We can also use metal rings to connect according to the special requirements of customers.

4. The channel is unobstructed, the flow coefficient is small, and the sealing surface is less eroded and corroded by the medium.

5. The sealing surface is made of alloy steel or hard alloy, with good wear resistance and abrasion resistance.

6. Flexible graphite filler is used, which has good sealing and flexible operation.

7. The flow direction of the medium is not restricted, there is no disturbance, and the pressure is not reduced.

8. Electric API 600 gate valve has simple shape, short structure length and wide application range.
