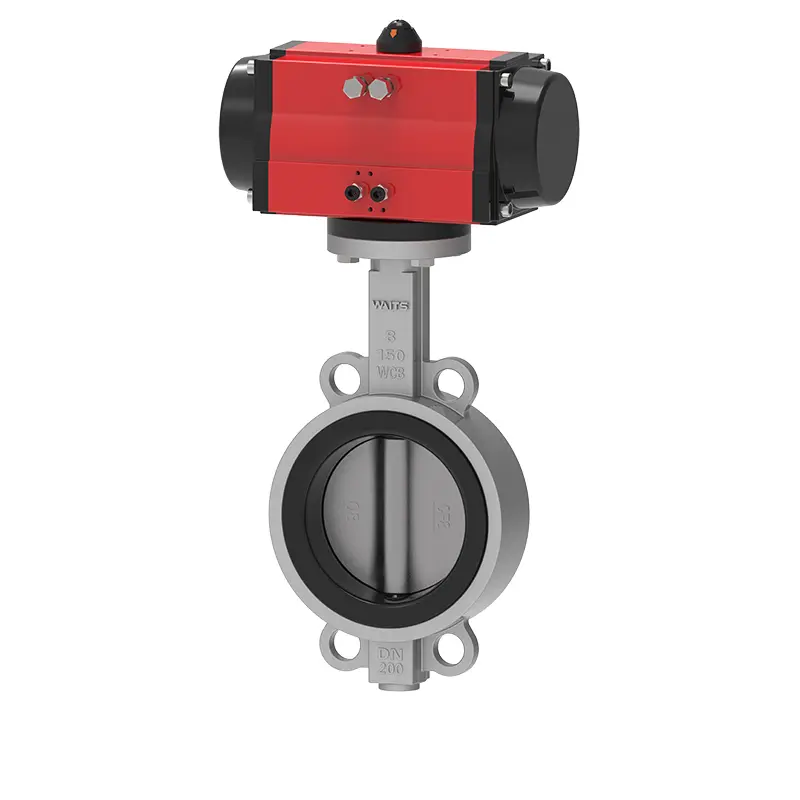

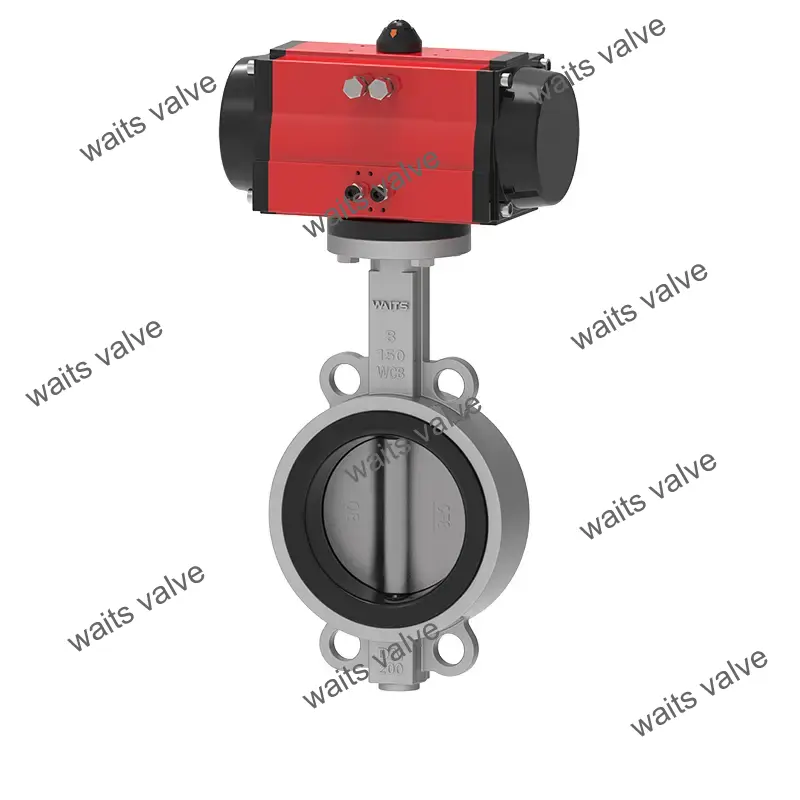

Pneumatic Wafer Soft Seated Butterfly Valve

Waits is very experienced in manufacturing pneumatic valves, and pneumatic wafer soft seated butterfly valve is one of its products. We have trained our own professional team and have production bases in Tianjin and Wenzhou, with stable supply and competitive prices. This pneumatic butterfly valve material is safe and environmentally friendly, and can also be used in food-related industries.

Send Inquiry

Product Description

Waits Valve's pneumatic wafer soft seated butterfly valve has made adjustments to the design from the performance aspect. Through careful design, research and development and manufacturing, it provides customers in the global market with better products and usage experience.

1. Use highly elastic valve seat rubber

The rubber content of the EPDM valve seat is 50%, and we simulate more than 10,000 opening and closing tests to ensure the stability of the sealing performance and no leakage.

The main related properties of this valve are as follows: Shore A hardness/degree 72±3, 200% tensile stress/Mpa≥6, tensile strength Mpa≥15, elongation at break/%≥350, permanent deformation at break/%≦10, tear strength/KN.m-1≥35, compression permanent deformation (70℃*22h, compression rate 25%)/%≦20.

In addition, the valve seat is designed as a wide edge. Compared with the narrow edge valve seat, the wide edge valve seat has a wider contact surface with the pipeline flange, and the diameter can reach almost 20mm, which has better sealing performance.

2. The butterfly plate and valve shaft are connected without pins, which will not cause leakage and corrosion due to the installation of pins. In addition, the method of disassembling the valve shaft is very simple, which makes it easy to replace the valve seat.

3. The valve body is equipped with an anti-scattering device, which is safer to use in the pipeline.

Implementation Standards

Design Standard	EN 593 / MSS SP-67 / API 609 / ISO 5752 / BS 5155
End Standard	Implementation standards ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 and PN16 AS 2129 Table D and E BS 10 Table D and E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 and PN16 ISO 7005 PN6, PN10 and PN16
Inspection & Test	API 598 ISO 5208 EN 12266
Face to Face	ISO 5752、EN 558、MSS SP67 API 609 DIN3202
Top Flange	ISO 5211

Application

Operating Temperature	-45℃~+150℃
SIZE	2"-32" DN50-DN800 34"-80"DN850-DN2000
Working pressure / CWP	16BAR 10BAR
Shell	24BAR 15BAR
Seal	18BAR 10BAR
Air Test	6BAR 6BAR
Operating Environment	Ballast and bilge system Chemical processing Desalination plants,Drilling rigs,Drinking water Dry powder,Food and beverage,Gas plants HAVC Mining industry,Paper industry,Sand handling,Seawater,Sugar industry Thermo technical water treatment Waste water
Driving method	Hand Lever Worm Gear Electric Pneumatic
BODY	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
DISC	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
STEM	2CR13 F304 F316 F51 F53 Monel K500
SEAT	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber

Performance Features

1. Pneumatic wafer soft seated butterfly valve is a small, lightweight valve that is easy to disassemble and repair.

2. The valve structure is simple in design and compact as a whole. The opening and closing speed during operation can reach 90.

3. During operation, the torque is small and more labor-saving.

4. In terms of the important sealing performance of the valve, we conduct strict gas tests to achieve zero leakage.

5. As a professional manufacturer, we consider the customized needs of customers. Pneumatic wafer soft seated butterfly valve can choose different component materials and is suitable for a variety of media with a wide range of applications.

6. The flow characteristics tend to be linear and the adjustment performance is good.

7. Through testing, the product can be opened and closed for tens of thousands of times and has a long service life.

Pneumatic Wafer Soft Seated Butterfly Valve
