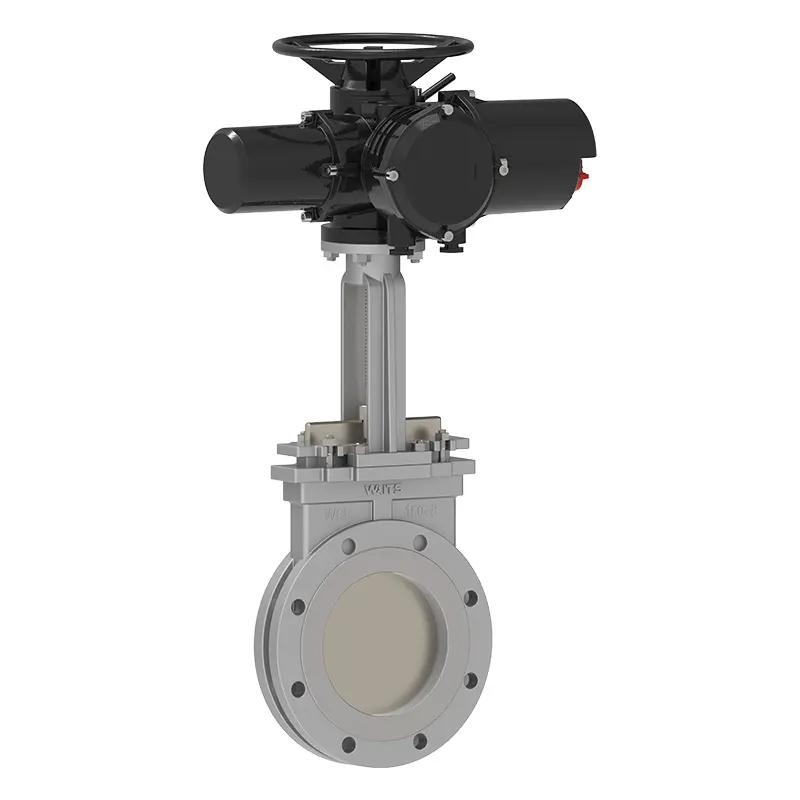

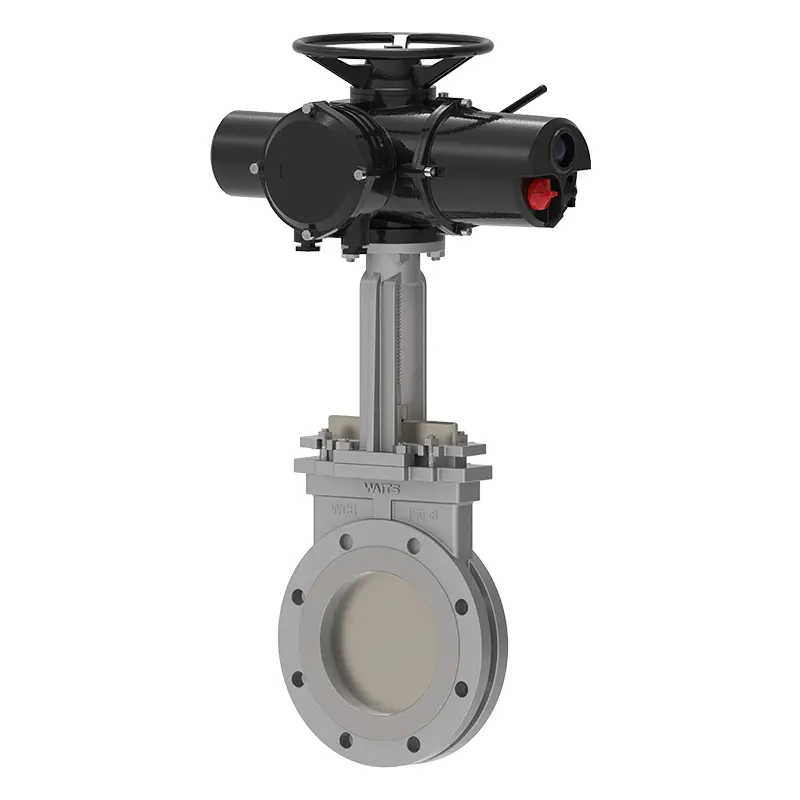

Electric Knife Gate Valve

Waits Valve's durable Electric Knife Gate Valve can manage slurry and granular media and simplify the control of industrial switches. You can also choose lever type, non rising stem type, rising stem type, pneumatic actuator, ISO top flange actuator or electric actuator. For 20 years, Waits Valve Co., Ltd. has been focusing on industrial valve manufacturing, providing customized high-quality valves for fluid control to customers around the world.

Send Inquiry

Product Description

Waits Valve high quality Electric Knife Gate Valve uses a motor to drive the valve plate to open and close. It is suitable for automated control scenarios. The valve has a self cleaning function. When the valve is opened, the particles will be pushed away from the gate. To further protect the packing gland, a scraper can be optionally provided. Its advantages include high adjustment accuracy (capable of accurately controlling the opening) and stable torque output. It is often used in large diameter pipelines that require remote operation, such as sewage treatment and power systems. Maintenance requires regular inspection of the motor insulation and the lubrication status of the gears, but attention should be paid to the stability of the power supply.

Detail:

Electric Knife Gate Valve has a replaceable top packing gland, and the seal can be replaced without disassembling the valve.

Bidirectional, can be installed independently of the flow direction.

Full bore, no flow reduction.

Flat bottom prevents sediment accumulation.

No cavity in the valve body, no risk of clogging.

U shaped one piece NBR seals between the valve body parts compensate for tolerances in the coating and casting process. The seal is reinforced with a steel liner to prevent damage during operation.

Caged stem with bracket, can be installed with micro switches and inductive sensors

Implementation Standards-Electric Knife Gate Valve
Design Standards	API600, API6D, EN1074
Flange Standard	ASME B16.5/ASME B16.47-A/B /EN1092-1/2
Connection methods	RF, BW, SW, NPT, FNPT
Testing and acceptance	API 598, EN12266
Structural length	API6D/ASME B16.10/EN558
Pressure and temperature ratings	ASME B16.34
Fireproof test	API 6FA, API 607
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0175

Application-Electric Knife Gate Valve
Size	NPS 2″~ NPS 20″ DN50~DN500
Pressure range	PN10~PN16, CL150
Temperature range	-29℃+550℃‌
Application range	Coal preparation and slag discharge, ash treatment, sewage treatment, cement plant mud, paper mill slurry, etc.
Drive mode	Electric
Valve body/valve cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, F3, LF5, Monel Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Gate	201, 304, 316L, 2205, 2507
Sealing surface	PTFE, stainless steel seal, carbide
Valve stem	‌A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Filler	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...
