Electric Three-Piece Flanged Floating Ball Valve

Waits Valve Electric Three-Piece Flanged Floating Ball Valve is durable, intelligently controlled, and achieves efficient flow automation. From pre-sales technical consultation and solution planning to after-sales installation, commissioning, maintenance and repair, Waits Valve can also design two piece ball valves with mounting brackets to facilitate automation applications. Waits Valve has established a complete full-cycle service system.

Send Inquiry

Product Description

The valve body of Waits Valve Electric Three-Piece Flanged Floating Ball Valve is divided into three parts and adopts the standard electric ball valve design. The size range is NPS 2″~ NPS 4″ DN50~ DN100, and the WOG working pressure is CL150~CL2500 PN10 ~ PN260. We provide a full range of three-piece ball valves with various end connections, including threaded ends, butt welding ends, socket welding ends and tri-clamp connections.

The unique structure of Waits Valve makes disassembly and maintenance more convenient: the ball and valve seat can be inspected and replaced without disassembling the pipeline, which greatly reduces the difficulty and cost of maintenance. In terms of sealing performance, the three-piece structure provides a more uniform pressure distribution and has a sealing effect, while the electric drive mode realizes automatic control. This valve is often used in industrial pipeline scenarios with high valve maintenance frequency and strict sealing requirements.

Implementation Standards-Electric Three-Piece Flanged Floating Ball Valve
Design Standards	API 6D/API 608, BS5351
Flange Standard	ASME B16.5/ASME B16.47-A/B /EN1092-1/2
Connection methods	RF
Testing and acceptance	API 598, EN12266
Structural length	API6D/ASME B16.10/EN558
Pressure and temperature ratings	ASME B16.34
Fireproof test	API 6FA, API 607
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0175

Application-Electric Three-Piece Flanged Floating Ball Valve
Size	NPS 2″~ NPS 4″ DN50~ DN100
Pressure range	CL150~CL2500 PN10 ~ PN260
Temperature range	-20℃~400℃
Application range	Applicable to various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea, etc.
Drive mode	Hydraulic, pneumatic, electric, manual and worm gear transmission.
Valve body/valve cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, F3, LF5, Monel Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing surface	Reinforced PTFE, Para-polyphenylene (RPTFE, PPL), Metal
Valve stem	‌A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Ball	A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5
Filler	Asbestos graphite, flexible graphite, polytetrafluoroethylene, iron-based alloy

Core Structure and Working Principle

1.The valve body consists of left, right, and intermediate sections connected by bolts, enabling rapid disassembly for maintenance and internal component replacement.

2.The ball shifts toward the outlet sealing surface under media pressure, achieving bidirectional sealing suitable for frequent operation cycles.

3.Integrates a quarter-turn electric actuator supporting 0–90° rotation control for flow regulation or on/off functions, directly compatible with industrial control systems.

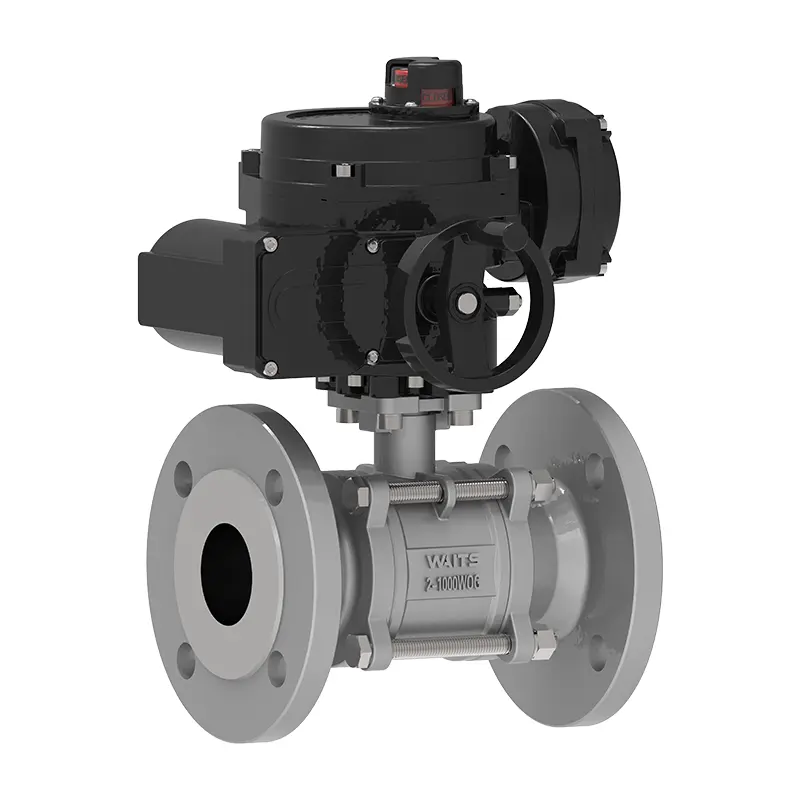

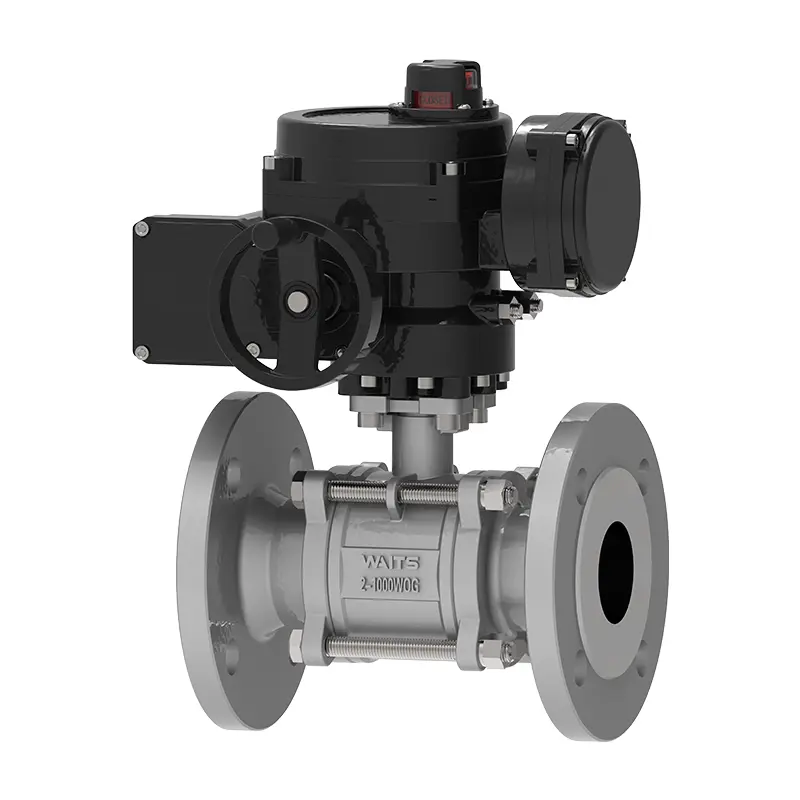

Electric Three Piece Flanged Floating Ball Valve
