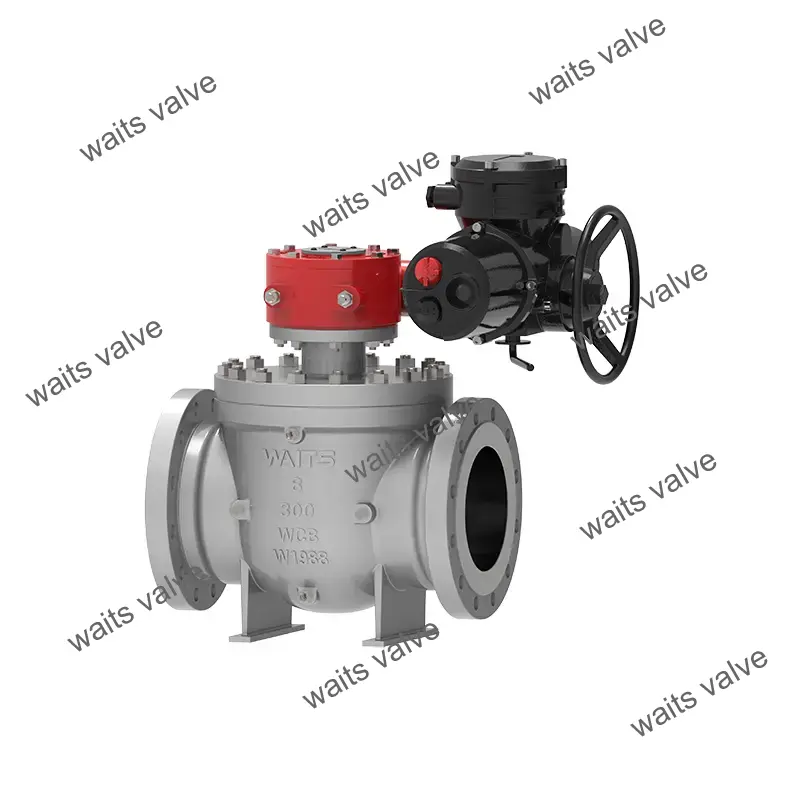

Electric Top Entry Ball Valve

The electric top entry ball valve produced and manufactured by Waits is a high-performance, high-quality valve product, which is designed, produced and inspected strictly in accordance with API standards. We were founded in the United States in 1994, entered China in 2008 and finally established our global headquarters in Wenzhou. We have the ability to provide cost-effective products to customers in the world market.

Send Inquiry

Product Description

The electric top entry ball valve is suitable for pipelines and industrial systems. Its advantages include supporting online maintenance and reducing leakage. It has improved the traditional full-bore ball valve and has better performance.

Implementation Standards

Design standards	API 608, API 6D, ASME B16.34
Flange standards	ASME B 16.5, ASME B16.47, ASME B16.25,
Connection methods	RF, RTJ, BW
Testing and acceptance	API598, API 6D,
Structural length	API 6D, ASME B16.10
Pressure and temperature levels	ASME B16.34、
Fire protection requirements	API6FA API607
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0103, NACE MR 0175

Application

Size	NPS1-1/2″~ 60”DN40~DN1500
Pressure range	Class150~ 2500 PN10-PN420
Temperature range	；-60*C ~ +260°C
Application range	Petroleum, chemical industry, metallurgy, light industry, power stations, urban construction water supply, low temperature working conditions, and long-distance pipelines such as oil, gas and natural gas.
Drive mode	Turbine, pneumatic, electric
Valve body	Forgings：A105, A182 F304, F304L, F316, F316L,F51, F53, A350 LF2, LF3, LF5, Monel, Castings：A216 WCB, A351 CF3, CF8, CF3M, CF8M, A995 4A, 5A, A352 LCB, LCC, LC2
Ball	Sphere： CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni60
Valve seat support ring	Seat support ring： CS+ENP, A182 F304, F304L, F316, F316L, F51, F53, CS+TCC, CS+Ni55
Valve seat insert	PTFE, RPTFE, Nylon, Devlon, PEEK
Valve stem	A182 F6a, F316, F51, A105+ENP, AISI 4140+ENP, 17-4PH

Performance Features

1. Unlike ordinary valves, the electric top entry ball valve does not need to be removed from the pipeline, and can be maintained online, reducing maintenance costs. The valve adopts a welded end structure and is installed on the pipeline, which is not affected by pipeline stress.

2. The valve seat ring can float independently in the axial position. Through the preloaded spring, the valve seat can be sealed under zero pressure and low pressure conditions. This design realizes the closing ability of the valve under high pressure conditions. The outer side of the valve seat ring is inlaid with O-rings and elastic rings to ensure the sealing between the valve seat and the valve body. Some of our customers will apply the valve to the site where expanded graphite is used. At this time, if a fire occurs, the valve can also maintain sealing performance.

3. When the valve seat and valve stem seal leak due to damage, the sealing grease injected by the grease injection valve can be used for emergency sealing. Under normal working conditions, the grease injected by the grease injection valve can lubricate the valve stem and the surface of the ball, and improve the flexibility when opening and closing.

4. For valves installed underground, we can lengthen the valve stem as needed and customize the size according to customer requirements. All sewage pipes, exhaust pipes and emergency grease injection devices are lengthened accordingly, and other related pipelines are close to the lengthened part of the valve. The sewage valve, exhaust valve and grease injection valve are connected and installed on the ground to facilitate regular maintenance.

5. The upper and lower valve stems are designed according to API6D and ISO17292 standards and can prevent static electricity.

6. When a single piston valve seat is used upstream and a double piston valve seat is used downstream, the valve can achieve a double blocking function and cut off the upstream and downstream media at the same time. When the material retained in the valve cavity is abnormally pressurized due to temperature increase, the valve seat can automatically release the pressure and discharge it to the upstream side.

7. The ball of the electric top entry ball valve is fixed, and the surface is ground, polished and hardened. There is a sliding bearing between the ball and the valve stem to reduce friction and working torque.

8. The connecting flange between the valve and the actuator complies with ISO 5211 standards, with high adaptability and easy replacement.

Electric Top Entry Ball Valve
