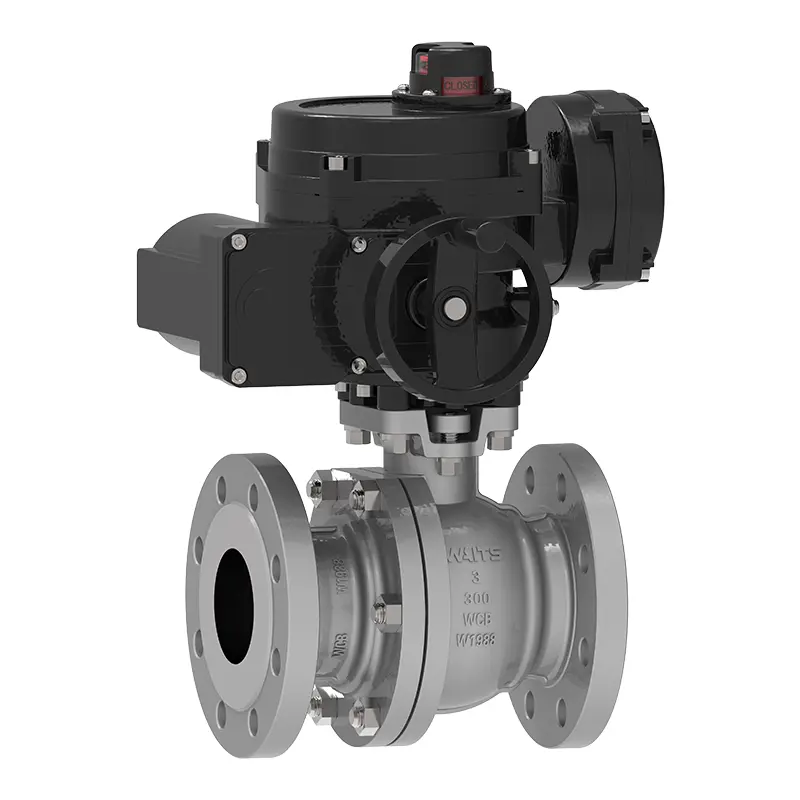

Electric Two-Piece Flanged Floating Ball Valve

Waits Valve designers of Electric Two-Piece Flanged Floating Ball Valve specially designed a reliable, convenient and durable two piece floating ball valve with a two-piece body. Designed according to API 608 and fire tested to meet API 607 standards. Waits Valve can customize high performance valve products according to customers' special needs.

Send Inquiry

Product Description

Waits Valve durable Electric Two-Piece Flanged Floating Ball Valve consists of two valve body components, floating ball and end inlet design. Its structure is compact and simple, with small dimensions and low installation space requirements. The two valve bodies are fixed by flange bolts, light weight, easy to transport and install. The valve is driven by an electric device, which can quickly and accurately control opening and closing. Sealing materials can be used in various pressure and temperature ranges, including TEFLON, PPL, PEEK, DELRIN, etc.

Implementation Standards-Electric Two-Piece Flanged Floating Ball Valve
Design Standards	API 6D/API 608, BS5351
Flange Standard	ASME B16.5/ASME B16.47-A/B /EN1092-1/2
Connection methods	RF
Testing and acceptance	API 598, EN12266
Structural length	API6D/ASME B16.10/EN558
Pressure and temperature ratings	ASME B16.34
Fireproof test	API 6FA, API 607
Low leakage standards	ISO 15848-1, API 622
Anti-corrosion design	NACE MR 0175

Application-Electric Two-Piece Flanged Floating Ball Valve
Size	NPS 2″~ NPS 4″ DN50~ DN100
Pressure range	CL150~CL2500 PN10 ~ PN260
Temperature range	-20℃~400℃
Application range	Applicable to various media such as water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing media, urea, etc.
Drive mode	Hydraulic, pneumatic, electric, manual and worm gear transmission.
Valve body/valve cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, F3, LF5, Monel Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing surface	Reinforced PTFE, Para-polyphenylene (RPTFE, PPL), Metal
Valve stem	‌A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Ball	A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5
Filler	Asbestos graphite, flexible graphite, polytetrafluoroethylene, iron-based alloy

Product Technical Advantages

1.Compact design, lightweight construction, and modular maintenance.

2.Dual sealing mechanism with options for hard alloy or PTFE sealing surfaces, resisting particle erosion and corrosive fluids.

3.Low torque operation for efficient opening/closing.

4.Ideal for chemical, oil (sulfur resistant), power (high temperature), and food/pharmaceutical (sanitary polished surfaces) industries.

5.Freeze Protection: Enhanced long term reliability in harsh environments.

Features

The Electric Two-Piece Flanged Floating Ball Valve adopts a fireproof design. When non metallic materials are damaged by high temperature, the upper pressure in the pipeline pushes the ball to the metal valve seat lip, cutting off the medium and avoiding internal leakage.

The anti-blowout design keeps the shaft safe at any pressure.

The locking device is optional and can provide system protection by preventing misoperation

ISO5211 actuator mounting pad, easy to disassemble and maintain, and can also be used with worn gears, electric actuators or pneumatic actuators, etc.

The detachable handle design is easy to operate, and the valve is also easy to assemble with actuators and accessories for switch or control applications.

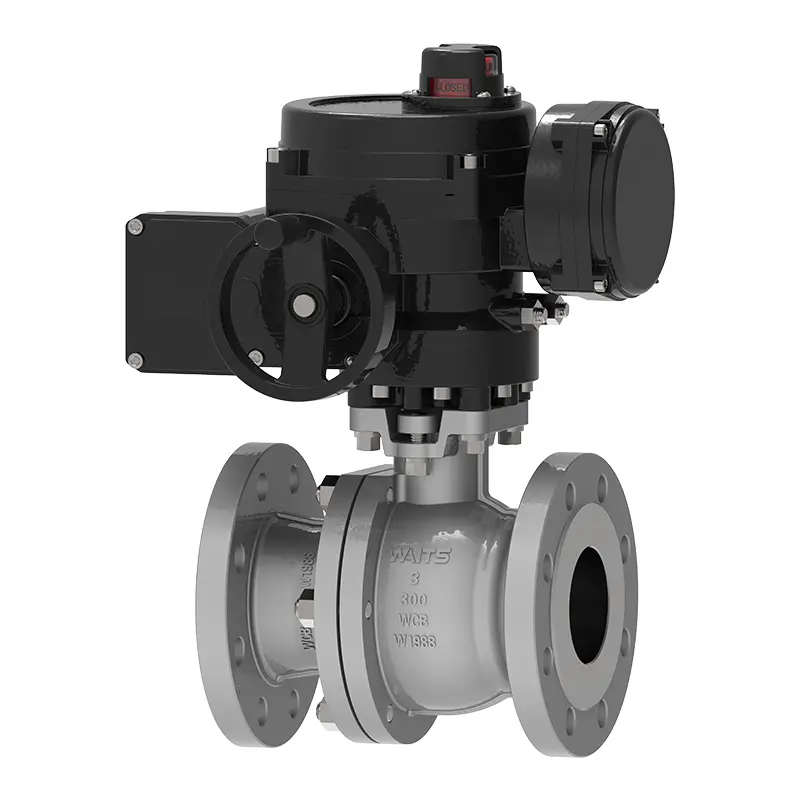

Electric Two Piece Flanged Floating Ball Valve
