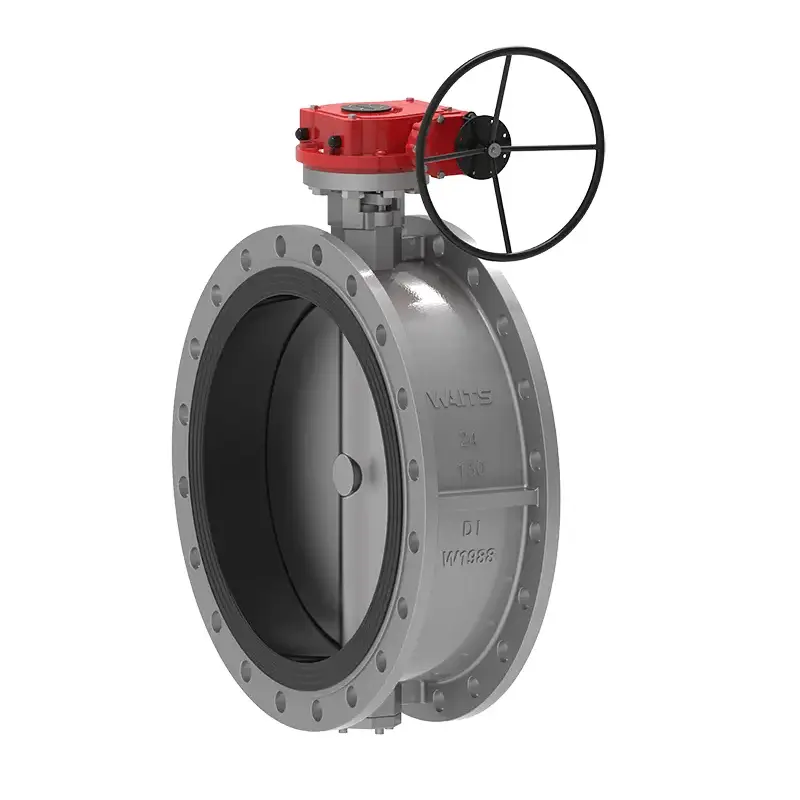

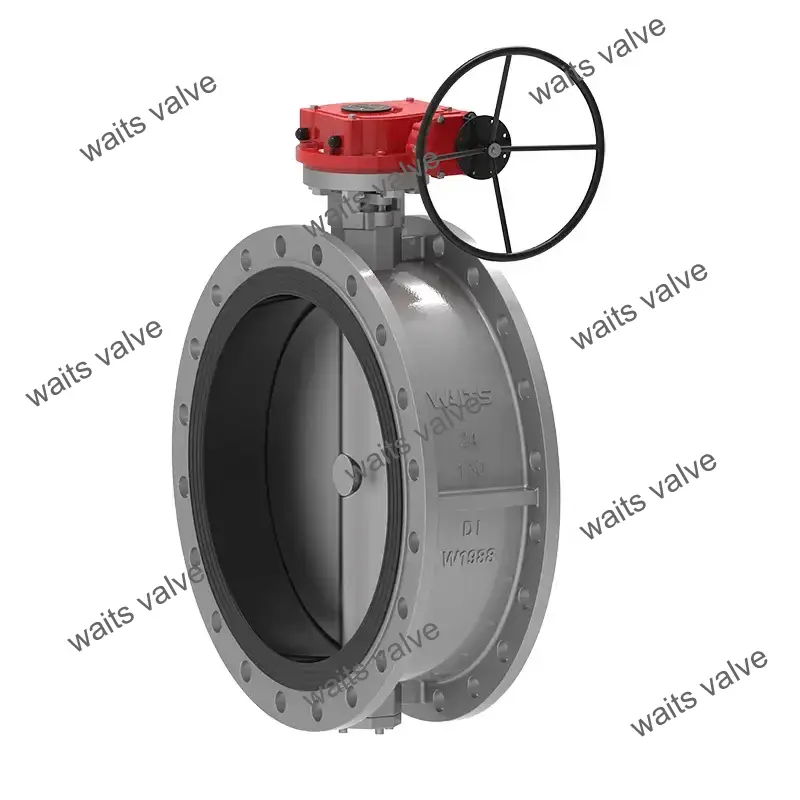

Soft Seated Double Flange Butterfly Valve

Waits is a soft seated double flange butterfly valve manufacturer and supplier. It was originally established in the US and later established a production base in China. Its global headquarters is located in Wenzhou. We have rich industry experience and select natural high-quality raw materials to achieve food grade certification. They can be used for food pipelines, such as pipeline construction of milk source plants and seawater desalination plants.

Send Inquiry

Product Description

Each soft seated double flange butterfly valve of Waits has the following characteristics:
1. High elasticity valve seat rubber
EPDM valve seat rubber content is 50%, and it has been tested for more than 10,000 times of simulated opening and closing without leakage.
Shore A hardness/degree 72 ±3,200% tensile stress/Mpa≥6, tensile strength Mpa≥15, elongation at break/%≥350, permanent deformation at break/%≦10, tear strength/KN.m-1≥35, compression permanent deformation (70℃*22h, compression rate 25%)/%≦20 (Wide side valve seat) Compared with narrow side valve seat, the wide side valve seat has a wider contact surface with the pipeline flange, with a diameter of about 20 mm, and better installation sealing performance.
2. The butterfly plate and valve shaft are connected without pins, which can completely avoid leakage and corrosion caused by installing pins. The valve shaft is easy to disassemble and the valve seat is easy to replace.
3. The valve body is equipped with an anti-flying device, which is better and safer to use in pipelines.

Implementation Standards

Design Standard	API 609, EN 593, BS 5155, GOST
End Standard	ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 and PN16 AS 2129 Table D and E BS 10 Table D and E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 and PN16 ISO 7005 PN6, PN10 and PN16
Inspection & Test	API 598, IS0 5208, EN 12266-1, GOST
Face to Face	AP 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Application

Operating Temperature	-45℃~150℃
Size	2"-80", DN50-DN2000
Working pressure / CWP	16BAR 10BAR
Shell	24BAR 15BAR
Seal	18BAR 10BAR
Air Test	6BAR 6BAR
Operating Environment	Ballast and bilge system Chemical processing Desalination plants, Drilling rigs, Drinking water Dry powder, Food and beverage, Gas plants HAVC Mining industry, Paper industry, Sand handling, Seawater, Sugar industry Thermo technical water treatment Waste water
Operator	Lever, Gear, Electric, Pneumatic, etc.
Body Material	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze, etc.
Disc	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze
Stem	2CR13 F304 F316 F51 F53 Monel K500
Seat	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber
