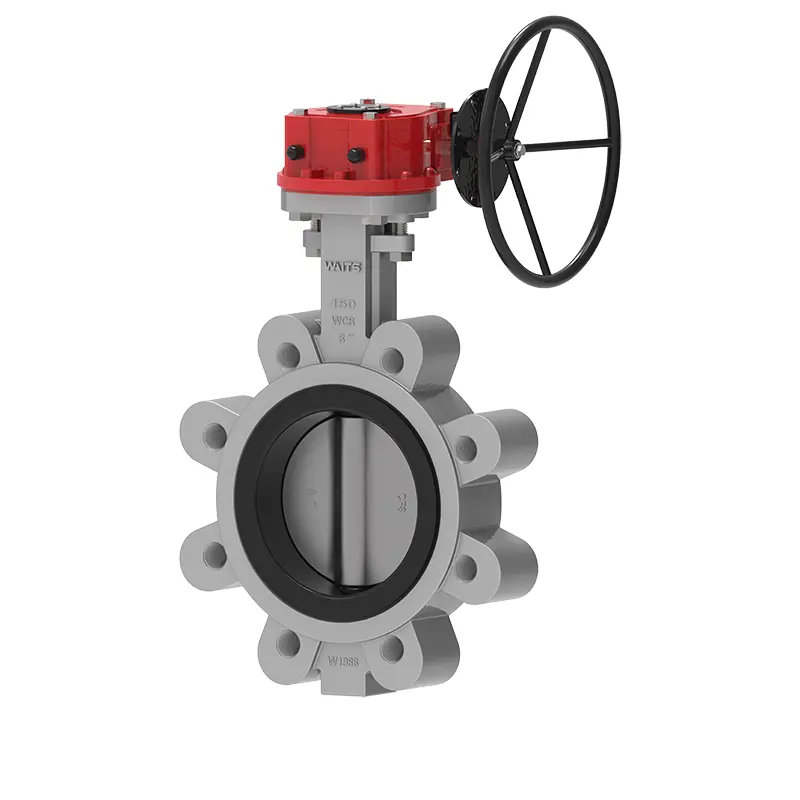

Soft Seated Wafer Butterfly Valve

Waits is a large valve manufacturer and supplier that can provide you with soft seated wafer butterfly valve. This valve uses rubber valve seat, preferably natural high-quality rubber, which can reach food grade certification. It has excellent application in New Zealand milk source factory and Israel desalination plant.

Send Inquiry

Product Description

The soft seated wafer butterfly valve of Witts has the following designs during design and production, and has been improved in terms of performance:
1-High elastic valve seat rubber
The rubber content of the EPDM valve seat is 50%, and it has been tested for more than 10,000 times in simulation opening and closing tests without leakage.
Shore A hardness/degree 72 ±3,200% tensile stress/Mpa≥6, tensile strength Mpa≥15, elongation at break/%≥350, permanent deformation at break/%≦10, tear strength/KN.m-1≥35, compression permanent deformation (70℃*22h, compression rate 25%)/%≦20.
Compared with the narrow-edge valve seat, the wide-edge valve seat has a wider contact surface with the pipeline flange, with a diameter of about 20 mm, and better installation sealing performance.
2-The butterfly plate and the valve shaft are connected without pins, which can completely avoid leakage and corrosion caused by installing pins. The valve shaft is easy to disassemble, which is convenient for replacing the valve seat.
3-The valve body is equipped with an anti-flying device, which is better and safer to use in the pipeline.

Implementation Standards

Design Standard	API 609, EN 593, BS5155, GOST
End Standard	Implementation standards ANSI B16.1 CL. 125LB and B16.5 CL. 150LB DIN 2501 PN6/PN10/PN16/, EN 1092 PN6, PN10 and PN16 AS 2129 Table D and E BS 10 Table D and E MSS SP44 CL. 150LB AWWA C207 150LB ISO 2531 PN6, PN10 and PN16 ISO 7005 PN6, PN10 and PN16
Inspection & Test	API 598, ISO 5208, EN 12266-1, GOST
Face to Face	API 609, EN 558, ISO 5752, MSS SP 67, DIN 3202
Top Flange	ISO 5211

Application

Operating Temperature	-45℃~150℃
Size	2"-80", DN50-DN2000
Working pressure / CWP	16BAR 10BAR
Shell	24BAR 15BAR
Seal	18BAR 10BAR
Air Test	6BAR 6BAR
Operating Environment	Ballast and bilge system Chemical processing Desalination plants, Drilling rigs, Drinking water Dry powder, Food and beverage, Gas plants HAVC Mining industry, Paper industry, Sand handling, Seawater, Sugar industry Thermo technical water treatment Waste water
Operator	Lever, Gear, Electric, Pneumatic, etc.
Body Material	Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, AL-Bronze, etc.
DISC	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
STEM	2CR13 F304 F316 F51 F53 Monel K500
SEAT	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber

Performance Features

1. The soft seated wafer butterfly valve is small in size, light in weight, easy to disassemble and repair.
2. The structure is simple and compact, with an operating opening and closing speed of 90.
3. The working torque is small, labor-saving and light.
4. In terms of sealing performance, the gas test leakage is zero, which is very guaranteed.
5. Different component materials can be selected and applied to various media.
6. The flow characteristics tend to be linear, and the adjustment performance is good.
7. The number of opening and closing tests can reach tens of thousands of times, and the service life is long.
