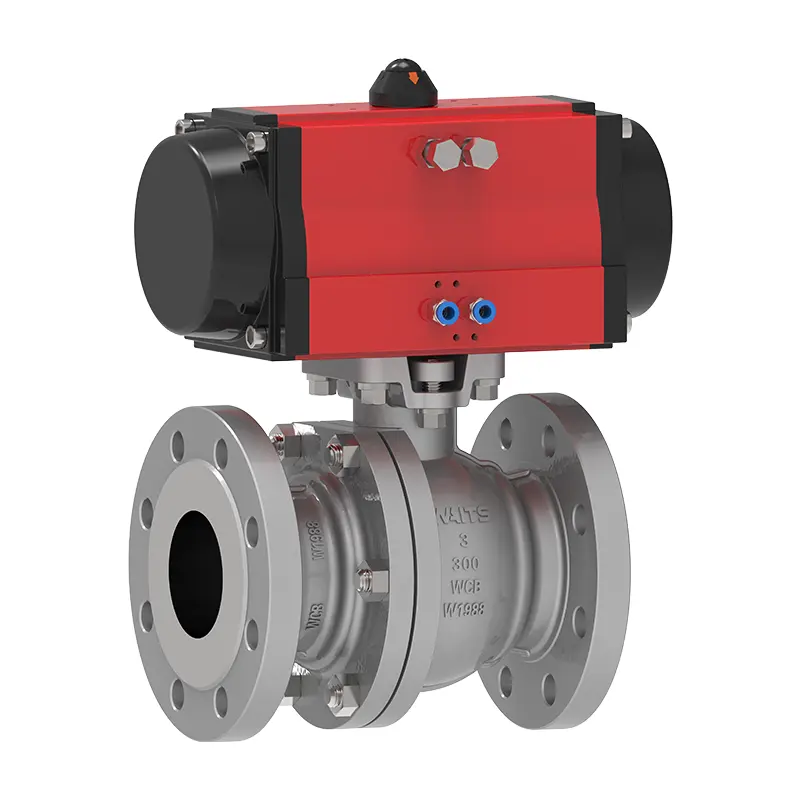

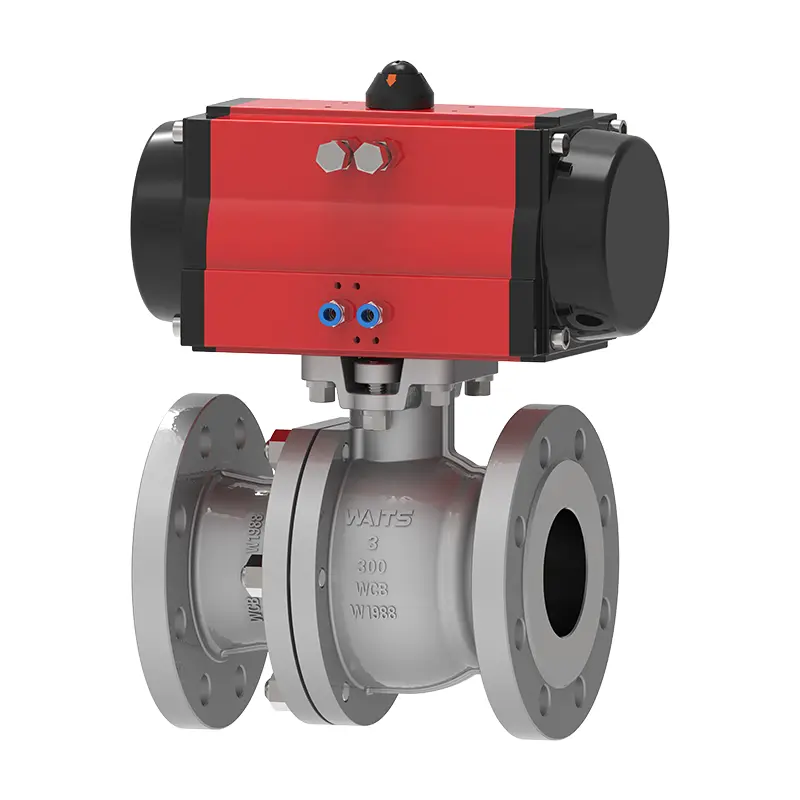

Two-Piece Pneumatic Floating Ball Valve (with Bracket‌)

Waits Valve high quality Two-Piece Pneumatic Floating Ball Valve (with Bracket‌ ‌) adopts a two piece structure, with the valve body and valve cover connected by bolts, compact structure and easy maintenance. It is very suitable for on/off and throttling control of water, steam, oil and other media, especially for piping systems in the chemical, food and pharmaceutical industries.

The main advantages include: fast response time; excellent sealing performance; long service life.

Compared with the three-piece design, the two-piece floating ball valve has the following advantages: Smaller footprint, lighter weight, suitable for installations with limited space; low cost

Our Two-Piece Pneumatic Floating Ball Valve (with Bracket‌ ‌) is a maintenance free two-piece full bore ball valve suitable for general, industrial and chemical applications; suitable for water treatment, chemicals, weakly corrosive and semi corrosive fluids.

The actuation mode is single-acting or double-acting, and a series of configurable options are available, including limit switches, solenoid valves and positioners.

Main features:

Available BSP or NPT interface, size: NPS 2″~ NPS 24″ DN50~ DN600 to 2 inches (NPT).

Pressure range: CL150~CL2500 PN10 ~ PN260

Temperature range: -20℃~400℃

Equipped with anti-blowout valve stem.

The Two-Piece Pneumatic Floating Ball Valve (with Bracket‌ ‌) meets the stringent requirements of today's process control. During assembly, all drive components are rigorously inspected and 100% factory tested before shipment.

Pneumatic Actuation Process

1.Compressed air (0.4–0.7MPa) is input to drive the actuator piston or gear mechanism.

2.Torque is output to rotate the valve stem 90°, switching the ball’s through-hole direction (fully open/fully closed).

3.Single acting cylinders require spring reset, while double acting cylinders are controlled via solenoid valve direction change.

4.Rapid Response: Pneumatic actuators achieve a switching speed of 0.05 seconds per cycle, suitable for emergency shut off scenarios.

Selection Criteria

1.Choose single acting or double acting pneumatic heads based on torque requirements.

2.Prioritize PTFE seals for corrosive media; select metal hard seals for high-temperature/high pressure applications.

3.Flange faces designed to ASME B16.5 ensure pipeline compatibility.
