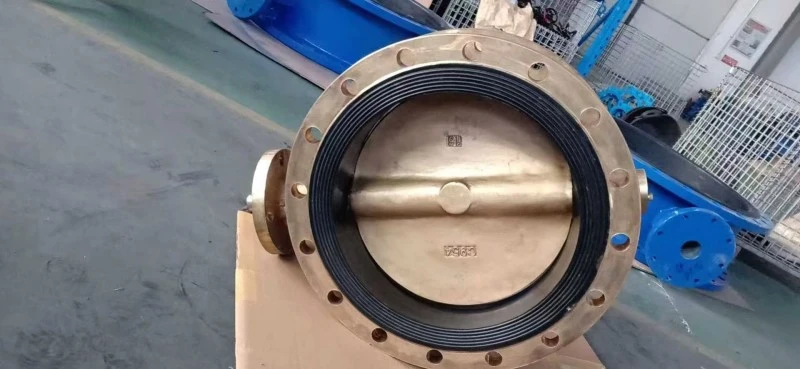

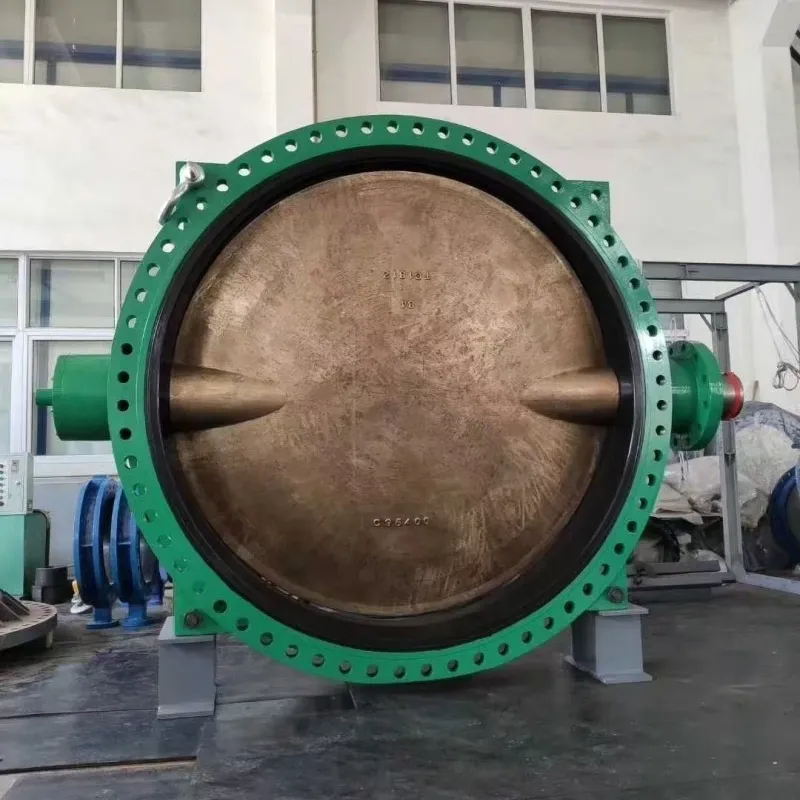

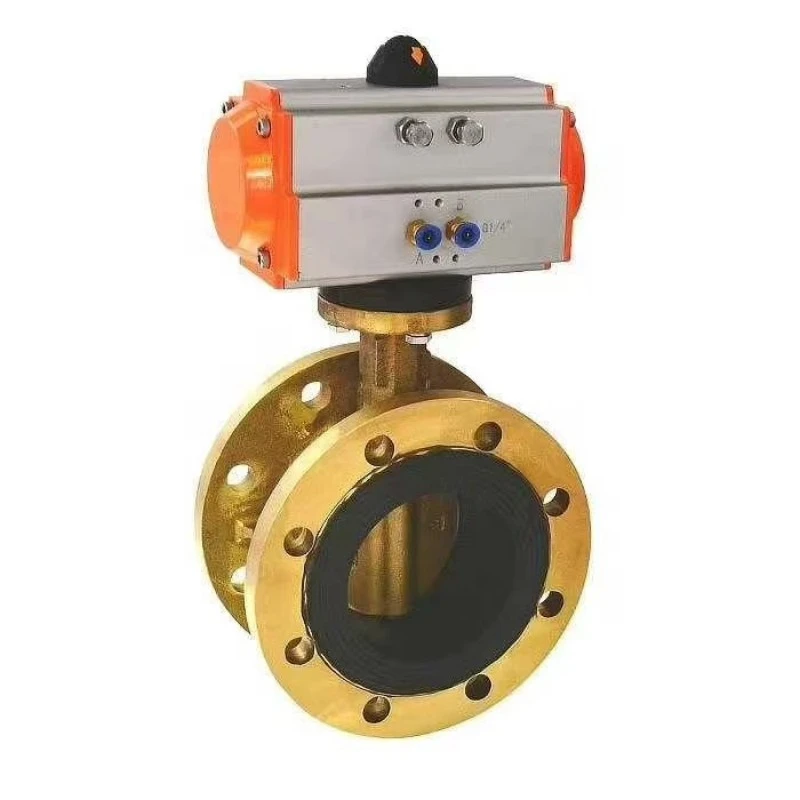

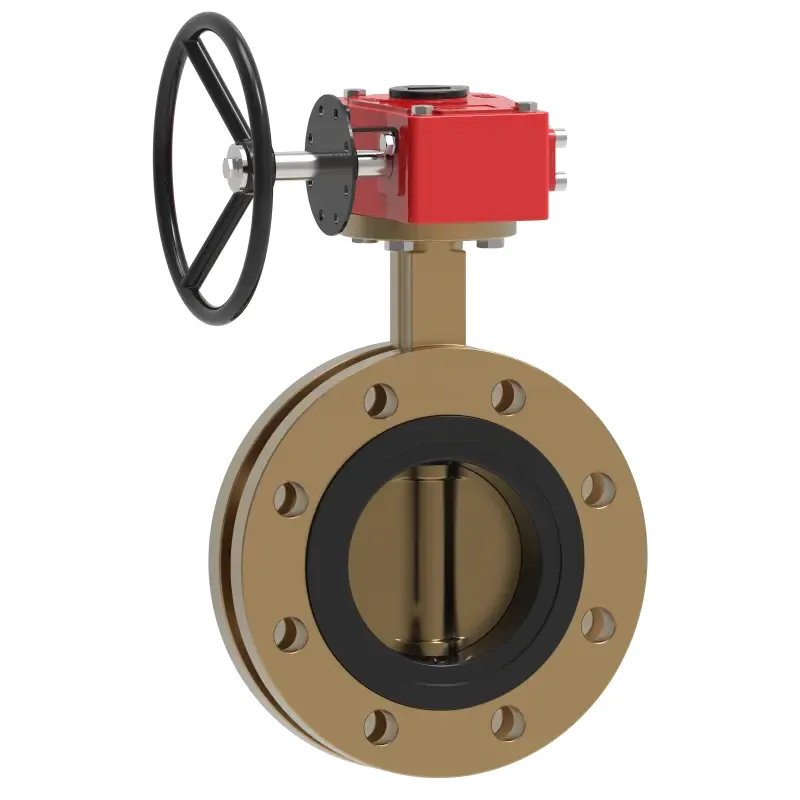

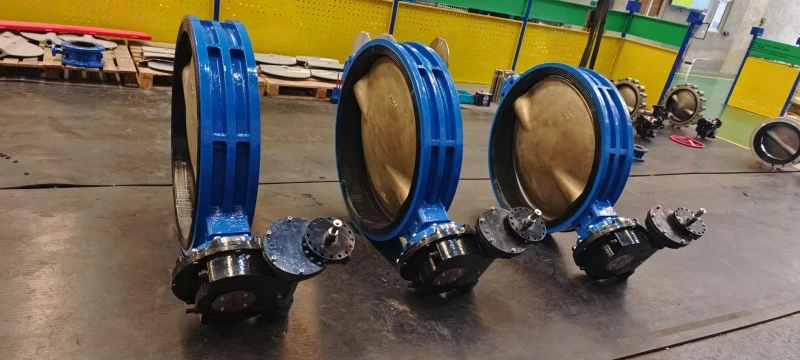

AL Bronze Flange Butterfly Valve

The Waits valve AL Bronze Flange Butterfly Valve, also known as C954, is the most commonly used universal aluminum bronze alloy. It has high yield strength and tensile strength, good ductility and weldability, as well as excellent wear resistance, fatigue resistance, and deformation resistance under impact or overload conditions. Regional supply situation, please contact our salesperson for details

The AL Bronze Flange Butterfly Valve is a lug type butterfly valve, with a valve body and disc made of C95800 material, double eccentric, bi-directional, and zero leakage. The general characteristics of aluminum bronze include good castability, high strength, and excellent corrosion resistance. Nickel aluminum bronze can also enhance its resistance to seawater corrosion through heat treatment, making it particularly suitable for seawater applications.

Seawater is an electrolyte solution containing multiple salts, which has strong corrosiveness to metal butterfly valves. Traditional metal materials are prone to rapid corrosion by seawater and are not suitable for use as valves in seawater applications.

Suitable materials should be selected according to different working conditions. Waits valves provide butterfly valves suitable for seawater media.

Detail

The AL Bronze Flange Butterfly Valve is designed for bi-directional service and can withstand maximum working pressure

Waits valves offer multiple handle options

Size range: 2 inches -8 inches | DN50- DN200

The maximum pressure can reach 232 psi | 1600 kPa | 16 bar

feature

The AL Bronze Flange Butterfly Valve has excellent performance, leading other valves in the Chinese market.

The double eccentric design minimizes the wear of the valve seat to the greatest extent possible.

The adjustable mechanical limit device on the valve body enables the valve disc to tightly close.

The valve shaft is completely anti slip and guided by self-lubricating sleeve bearings.

The AL Bronze Flange Butterfly Valve has a simple structure, small size, light weight, and easy installation and adjustment. This valve is widely used in medium and low pressure pipelines.

Good sealing performance, corrosion resistance, high pressure resistance, high temperature resistance, flexible control, and safe use.

The unique triple eccentric design ensures no friction between the sealing surfaces, extending the service life of the valve.

Torque generates elastic sealing.
