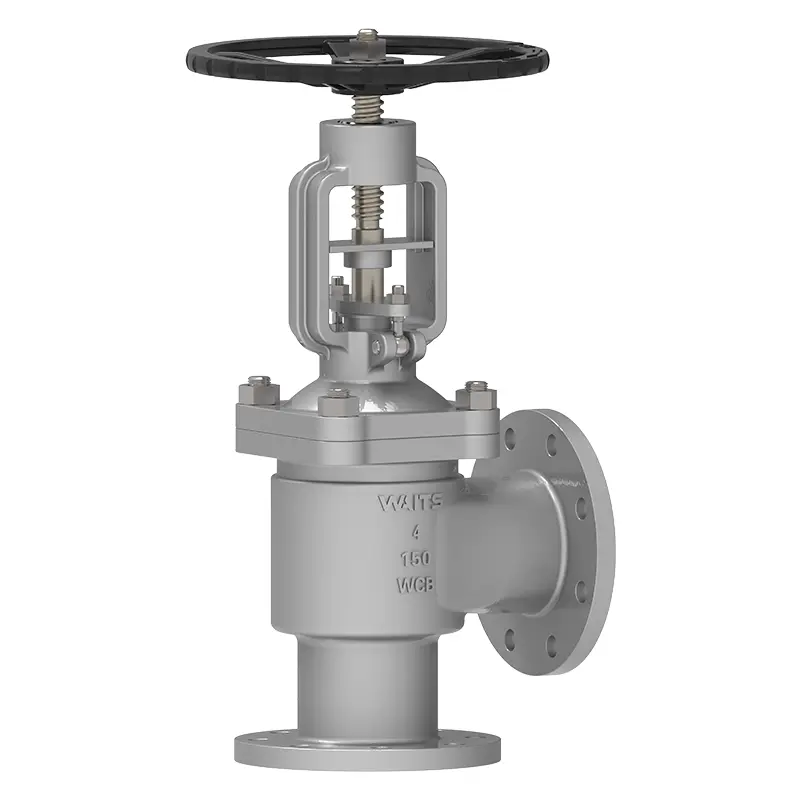

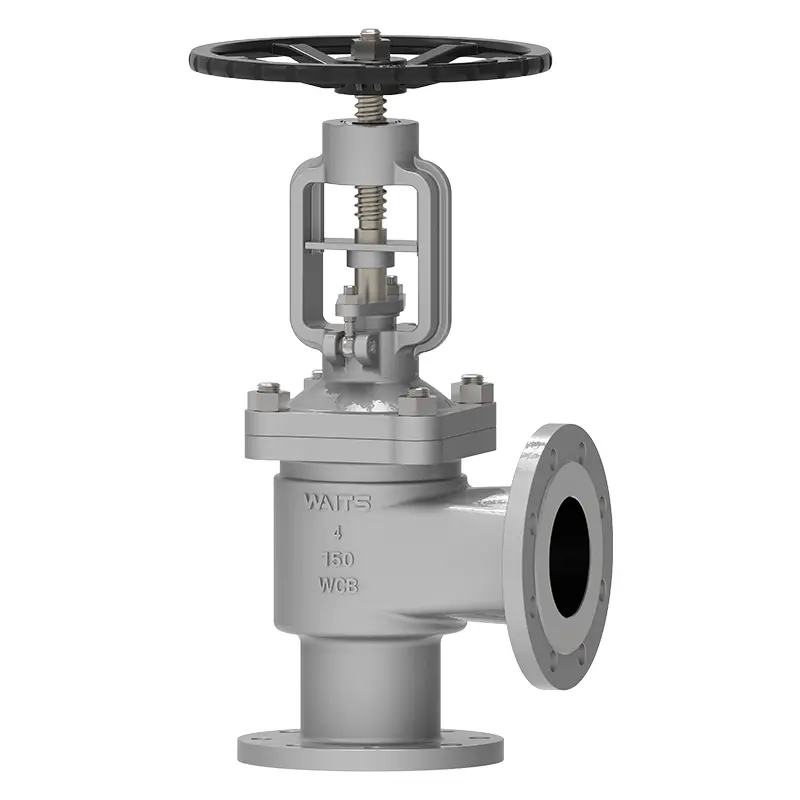

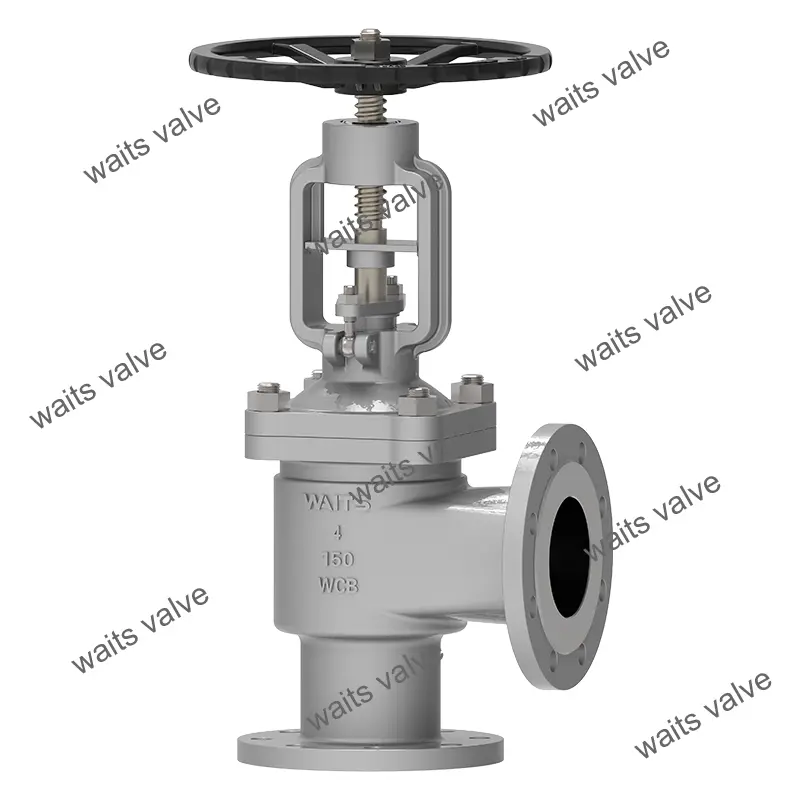

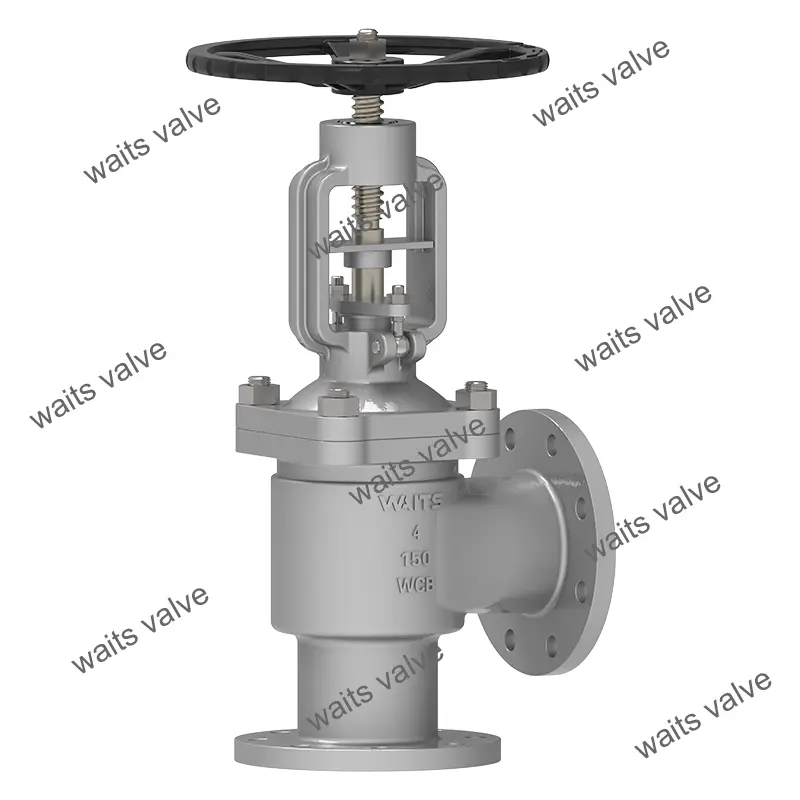

Angle Bellows Globe Valve

Angle Bellows Globe Valve adopts "double seal" technology, consisting of metal bellows and packing, providing double protection. Its 90 degree design saves space and has low resistance flow, which can reduce energy consumption for you. Choosing Wats valve means choosing a reassuring team.

Send Inquiry

Product Description

Wats valve high quality Angle Bellows Globe Valve adopts a 90-degree design, which allows the fluid to change direction at right angles and control the flow or cutoff of the fluid by rotating the valve stem. The metal bellows is used as the main sealing component inside the valve body, combined with traditional packing. The valve disc moves linearly along the center line of the fluid, and the bellows expands or contracts accordingly, isolating the fluid from the external environment and preventing leakage.

Implementation Standards-Angle Bellows Globe Valve ‌
Design Standards	DIN3356 /BS1873/ASME B16.34
Flange Standard	EN1092-1/2/ASME B16.5/ASME B16.47-A/B
Connection	RF/FF/RTJ
Test Acceptance	EN 12266 API598
Structure Length	EN558/ ASME B16.10
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607 API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175
Application-Angle Bellows Globe Valve
Size	DN15~DN300（NPS½"~12"）
Pressure Range	PN16~PN160（Class150~900）
Temperature Range	-29℃～+570℃
Application	Acid/alkali liquid, liquefied natural gas, high viscosity oil, underground pipeline network, equipment integration module, etc.
Drive Mode	Handwheel, bevel gear, electric, pneumatic, etc.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve Core	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel, Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing Surface	Main body, Main body cladding iron-based alloy, cladding hard-based alloy
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Copper alloy
Filler	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Performance Characteristics

The structure of Angle Bellows Globe Valve makes it particularly suitable for applications with high reliability requirements, such as systems handling toxic, flammable or corrosive media.

Advantages

1. The key component of Angle Bellows Globe Valve is the metal bellows. It connects the valve cover and the valve stem by automatic roll welding. The metal bellows ensures that the valve stem part is leak-free.

2. Thanks to the conical and streamlined design, the valve disc seals reliably and has a longer service life.

3. Double seal design (bellows + packing). The bellows and packing prevent leakage and provide excellent sealing effect.

4. Angle Bellows Globe Valve can directly lubricate the valve stem, nut and sleeve.

5. Ergonomic handwheel. Longer service life and easier operation.

Angle Bellows Globe Valve
