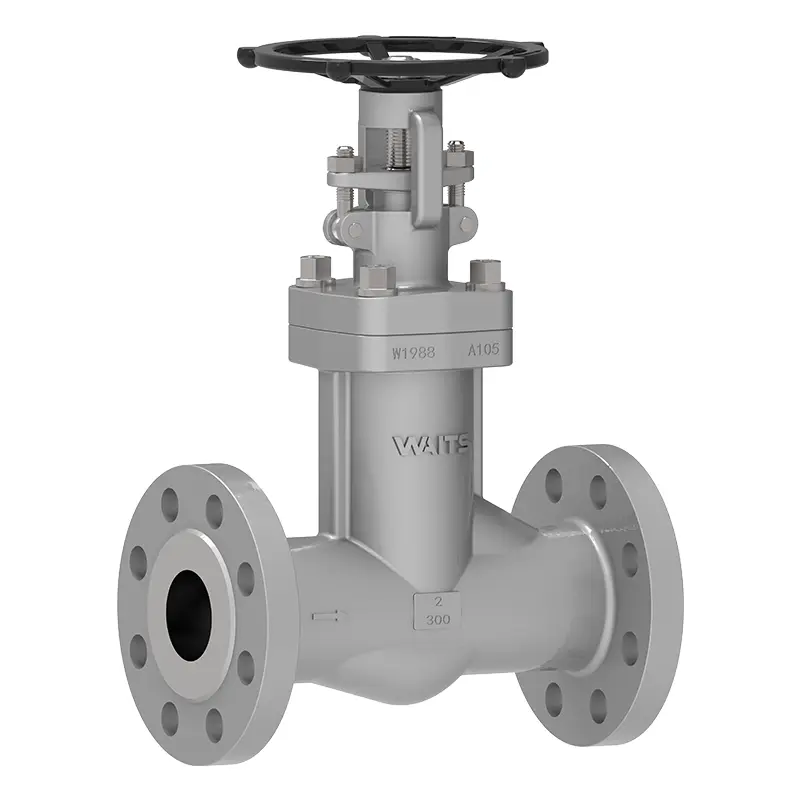

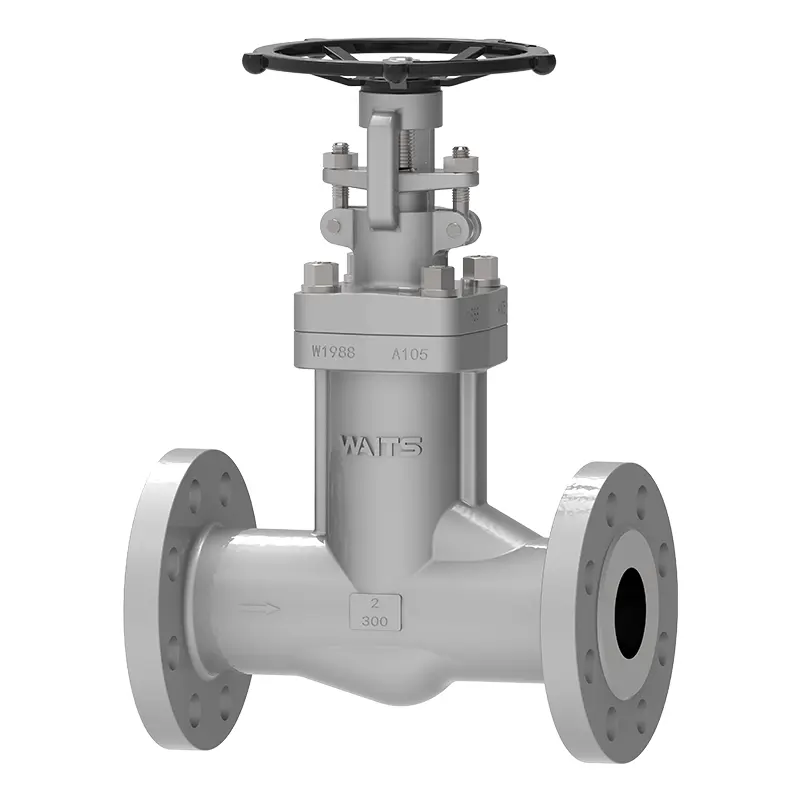

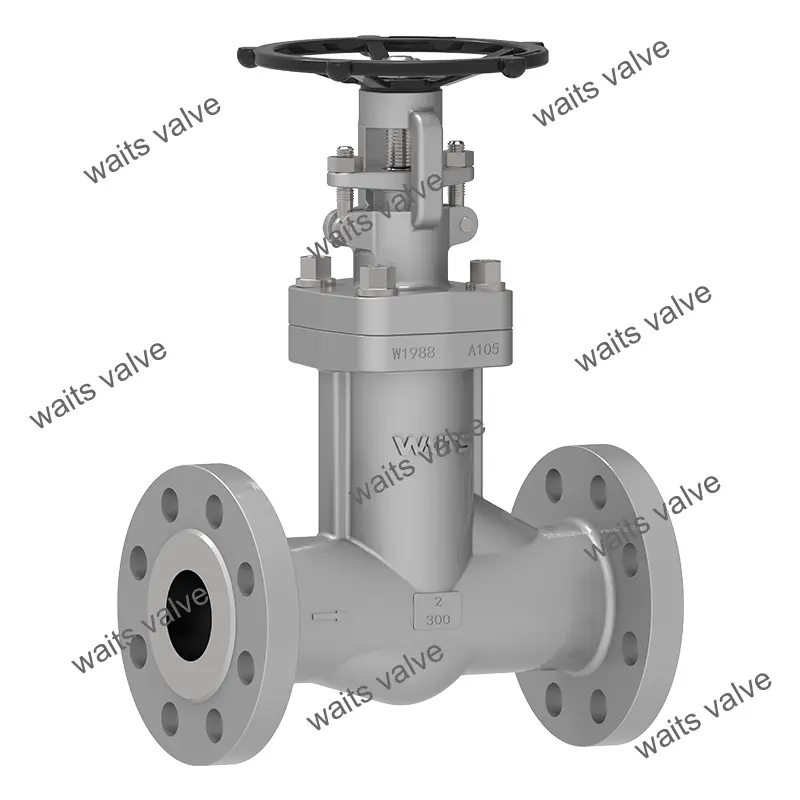

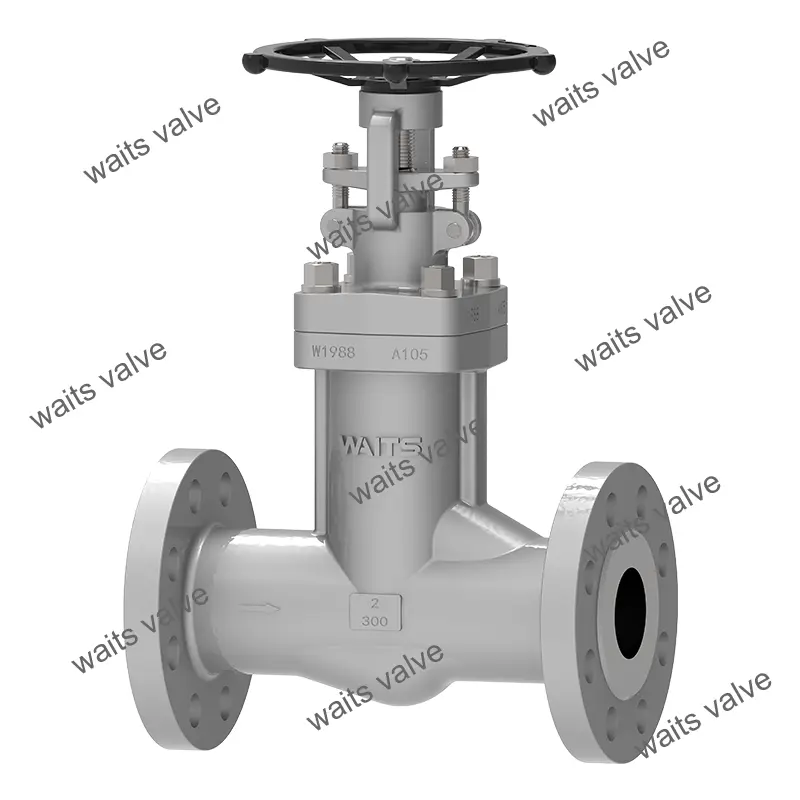

Forged Steel Bellows Globe Valve‌ ‌

Waits Valve Forged Steel Bellows Globe Valve‌ features high quality and durable resilient metal bellows that last a long time. It eliminates common problems of packing seal aging and leakage, reduces maintenance costs and downtime, and provides your engineers with a cleaner and safer working environment.

Send Inquiry

Product Description

Waits Valve Forged Steel Bellows Globe Valve‌ features a durable bellows structure inside. The bottom of the stainless steel bellows is welded to the valve stem to prevent process fluids from corroding the valve stem. The other end is located between the valve body and the bonnet to form a static seal.

It uses a double seal design, and even if the bellows fails, the valve stem packing can still prevent leakage. The bellows are welded to the valve stem for stable performance and avoid vibration caused by valve core movement.

Implementation Standards-Forged Steel Bellows Globe Valve‌ ‌
Design Standards	API602 DIN3356
Connection Standards	ASME B16.5/ASME B16.47-A/B /EN1092-1/2
Connection	RF, RTJ
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607, API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175

Application-Forged Steel Bellows Globe Valve‌ ‌
Size	DN15~DN50（NPS½"~12"）
Pressure Range	Class150～Class600, PN20～PN100
Temperature Range	-40℃～+350℃
Application	Thermal power plant steam system, hydrocarbons, acid and alkali media and high-pressure hydrogen, sterile fluids, resistant to corrosive gases, etc.
Drive Mode	Manual, electric, pneumatic
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5,
Valve Core	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel,
Sealing Surface	Stainless steel, high temperature alloy, alloy steel
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Filler	Compressed packing, asbestos fiber packing, flexible graphite packing,

Application:

Forged Steel Bellows Globe Valve‌ is suitable for pipelines conveying media such as steam, flammable and explosive media, thermal oil, high-purity fluids, toxic substances, etc.

Metal bellows are key components in many sensing, sealing, fluid handling and actuation applications. Different manufacturing methods and material qualities have a significant impact on their reliability in terms of travel, pressure characteristics, spring rate and temperature response.

Please note the difference between seamless and seam-welded designs.

Depending on the project requirements, in many cases, formed bellows made of longitudinal seam-welded tubes may be the most cost-effective solution, such as stainless steel bellows with simple compensation. In addition to lower standard deviations in diameter and wall thickness, the possibility of micro-leaks and contamination around the weld seam is also reduced (e.g. in vacuum applications).
