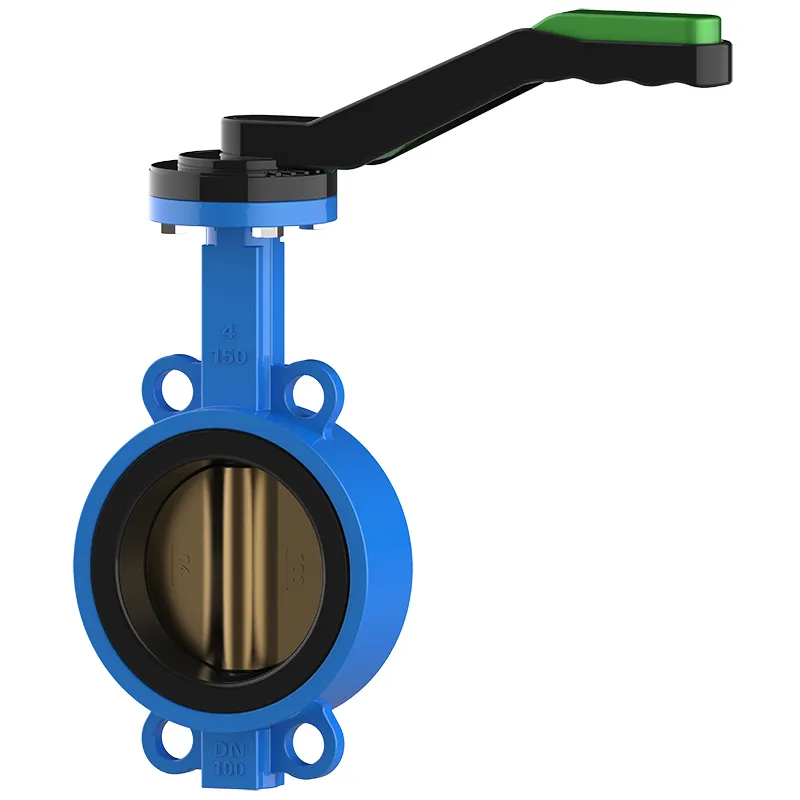

Lever Wafer Concentric Butterfly Valve Al Bronze Disc

Zero leakage should not be an exclusive luxury for those who can afford the most expensive valves. The concept of Waits Valves is to make the High quality lever wafer butterfly valve(Disc:AI bronze) accessible to the general public. By focusing on intelligent structural engineering, we have created top-notch butterfly valves for small and medium-sized enterprises, helping them enhance safety and environmental compliance without exceeding their budgets.

Send Inquiry

Product Description

Waits valve is not merely positioned as a wholesale lever wafer butterfly valve(Disc:AI bronze) supplier; It is an innovation partner for all industries around the world. We have been constantly expanding our product line, including Marine butterfly valve models, producing a series of compliant products and providing customization services, which has consolidated our position as a leading OEM manufacturer of butterfly valves.

These high-quality lever wafer butterfly Valves (Disc:AI bronze), equipped with aluminum bronze valve plates and nitrile rubber linings, are the preferred products for seawater applications. These valves can be purchased at waits Valves.

Feature

The lever wafer butterfly valve(Disc:AI bronze) is used to regulate or isolate the flow in a pipeline system.

The medium can flow in both directions.

Wafer-type butterfly valves are suitable for PN10/16 and ANSI 150lb flanges

Valve body and valve plate: aluminum bronze, inner lining: nitrile rubber.

Within 8 inches, it is operated by lever; above 8 inches, it is operated by gear.

Complies with PED 97/23/CE standard

Function

Manual

On/Off

The valve plate rotates 90 degrees

"Size"

Maximum pressure: 16bar

Temperature range: -25°C to +100°C

Note: As the temperature rises, the maximum pressure will decrease.

Design features

1. Rubber-backed valve seat ensures stable valve torque.

2. Grooved sleeve design ensures stable positioning.

3. The lever wafer butterfly valve(Disc:AI bronze) we designed is very simple, easy to handle, small in size and light in weight. Because of its simple structure, it is convenient to disassemble, install and maintain.

4. The operating torque is extremely small. Levers, gears, pneumatic or electric actuators can be selected.

5. Special design, large flow rate and low flow resistance.

6. lever wafer butterfly valve(Disc:AI bronze) is applicable to media such as water, sewage, seawater, air, steam, food, medicine, oil, acid, alkali, salt, etc. No leakage at rated pressure.
