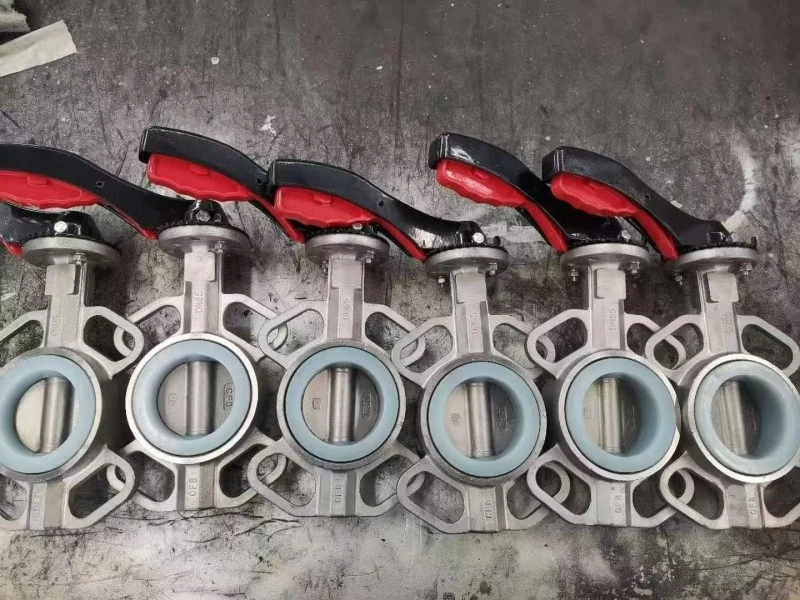

Lever Wafer Concentric Butterfly Valve Polished Disc

The Waits valve Lever Wafe Butterfly Valve meets the requirements of the US Food and Drug Administration in China, equipped with stainless steel valve discs and cast iron valve bodies, suitable for the food and beverage industry. Manual operation, equipped with a lockable lever. We understand the importance of timely delivery and strive to ensure that your order is delivered on time.

Waits valve is a clamp type butterfly valve with food grade silicone seat and stainless steel polished valve plate. It is most commonly used for high-temperature applications, but can also be used for oil, acid, air or inert gases, and food. Our sales and support team is on standby 24 hours a day to answer your questions and provide technical support.

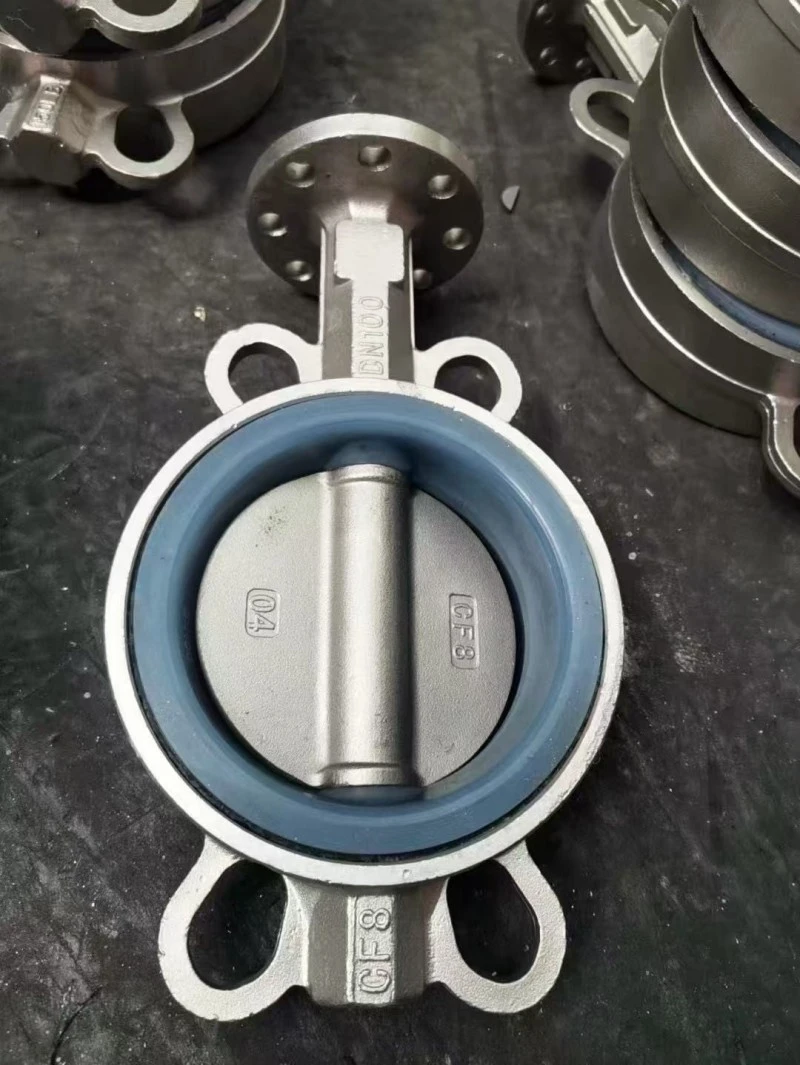

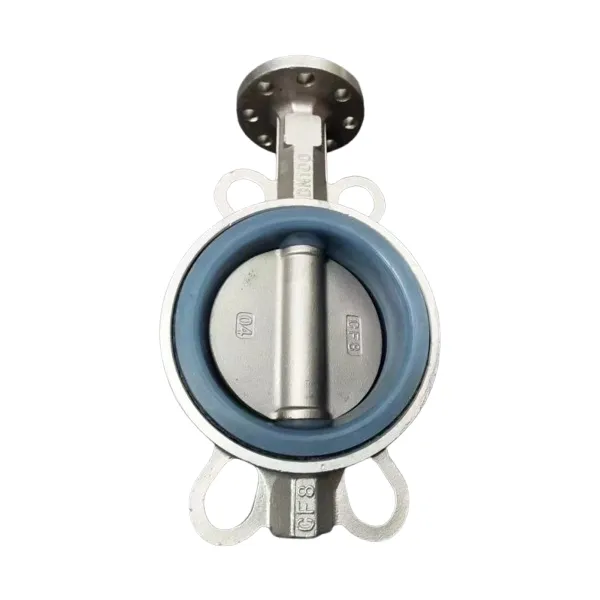

This Lever Wafe Butterfly Valvecomposed of EN-GJS-500-7 ductile iron valve body (RAL 5024 color, Rilsan coating, thickness 250-300 microns), polished CF8M stainless steel valve disc, and detachable food grade silicone valve seat, with a diameter range of DN32 to DN300, it can be installed between PN10/16 and PN20 flanges.

Our Lever Wafe Butterfly Valve has a maximum working pressure of 16 bar and can withstand a wide temperature range (-40 ° C to+150 ° C). In addition, it also has the following technical features:

Installation base compliant with ISO 5211 standard

Fully crossed valve stem

Long neck design for easy isolation

9-position control lever: with locking device below DN200, can stop at all positions from DN250 to DN300, but cannot be locked

Reminder: The food grade silicone valve seat is FDA certified, and the CF8M stainless steel valve plate is polished to prevent food residue.
