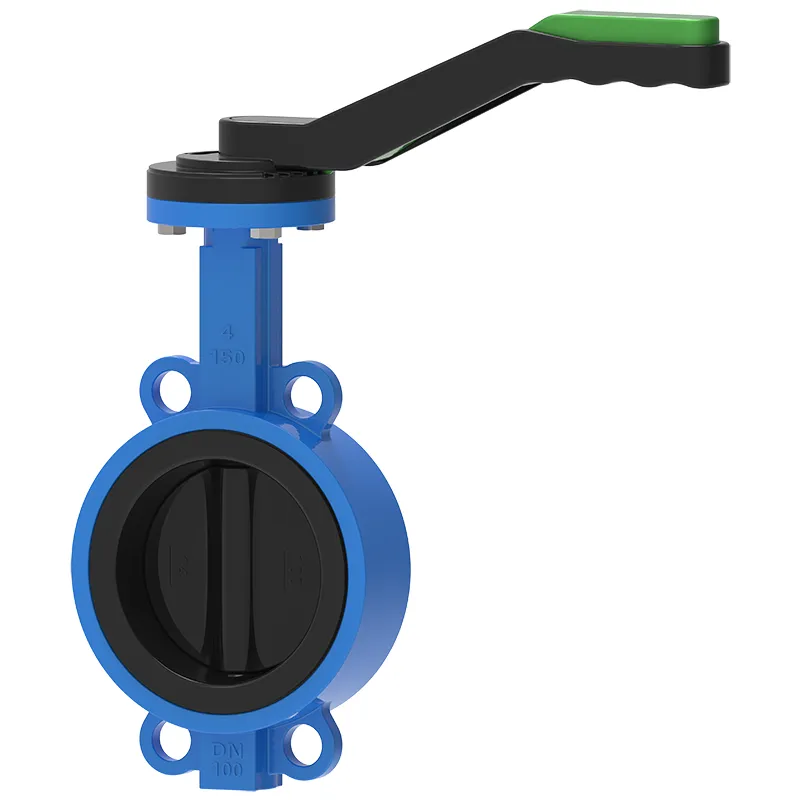

Lever Wafer Concentric Butterfly Valve Rubber Lined Disc

The lever wafer butterfly valve of Waits Valves is a low cost flow control device that can supply cut-off and throttling functions in medium and low pressure systems. It allows a compact wafer type valve body, which is convenient for installation between flanges and is equipped with a manual lever or gear operating mechanism. It is also covered with an elastic rubber lining (usually ethylene propylene diene monomer (EPDM), nitrile rubber (NBR) or other elastomers), which can make the valve body airtight and protect it from corrosive media erosion. The valve disc rotates 90 degrees to control the fluid flow with minimal pressure drop and torque.

Send Inquiry

Product Description

Waits Valves offer durable lever wafer butterfly valve for flange mounting onto pipes; Concentric valve disc design; With replaceable lining. With our professional skills in this field, these valves can be applied to cooling towers, wastewater applications, water treatment, DAMS, gas main pipelines and service lines, booster stations, power plants and gas pipeline industries. We have over a decade of experience in foreign trade exports, so we will definitely deliver these products to our customers within the stipulated time.

The rubber lining of the lever wafer butterfly valve is durable and easy to use, which can reduce internal wear and extend service life, making it a reliable choice for frequent on-off operations. The streamlined structure simplifies maintenance, and the lightweight design is highly suitable for installations with limited space.

Lever Wafer Concentric Butterfly Valve Rubber Lined Disc

Feature

The lever wafer butterfly valve that is cylindrical in shape, with a short axial length and an internal butterfly plate.

The butterfly plate is driven by the valve stem. Rotating 90° can complete the opening and closing. Changing the deflection Angle of the butterfly plate can control the flow of the medium.

This butterfly valve features a simple structure, small size and light weight. It has excellent flow control performance and sealing performance, and is widely used in various industrial pipeline systems.

Lever Wafer Concentric Butterfly Valve Rubber Lined Disc

Specification

Body: cast iron (GG25), nodular cast iron (GGG40/50), carbon steel (WCB A216), stainless steel (SS304 / SS316 / SS304L/SS316L), duplex stainless steel (2507/1.4529), bronze, aluminum alloy.

Valve seat Nitrile butadiene rubber (NBR), ethylene propylene diene monomer (EPDM)/ rare earth ethylene propylene diene monomer (REPDM), polytetrafluoroethylene (PTFE)/ recycled polytetrafluoroethylene (RPTFE), fluorine rubber (Viton), chloroprene rubber (Neoprene), Hypalon, silicone rubber Silicone, perfluorooctane sulfonate (PFA).

Valve stem 416 stainless steel (SS416), 431 stainless steel (SS431), 304 (SS304 stainless steel, 316 stainless steel (SS316), duplex stainless steel (SS304 / SS316 / SS304L/SS316L), duplex stainless steel (2507/1.4529), bronze, (DI/WCB/SS) coating (epoxy coating/nylon /EPDM/NBR/PTFE/PFA)

Bushing: PTFE, bronze

O-rings: NBR, EPDM, FKM

Operation mode: Manual lever, gearbox, electric/pneumatic/hydraulic actuator
