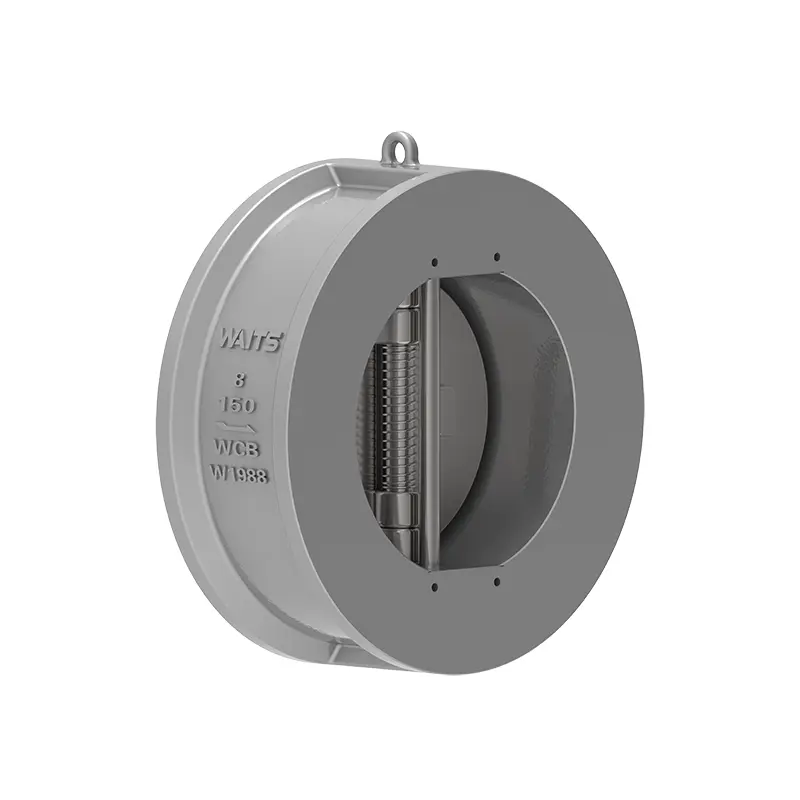

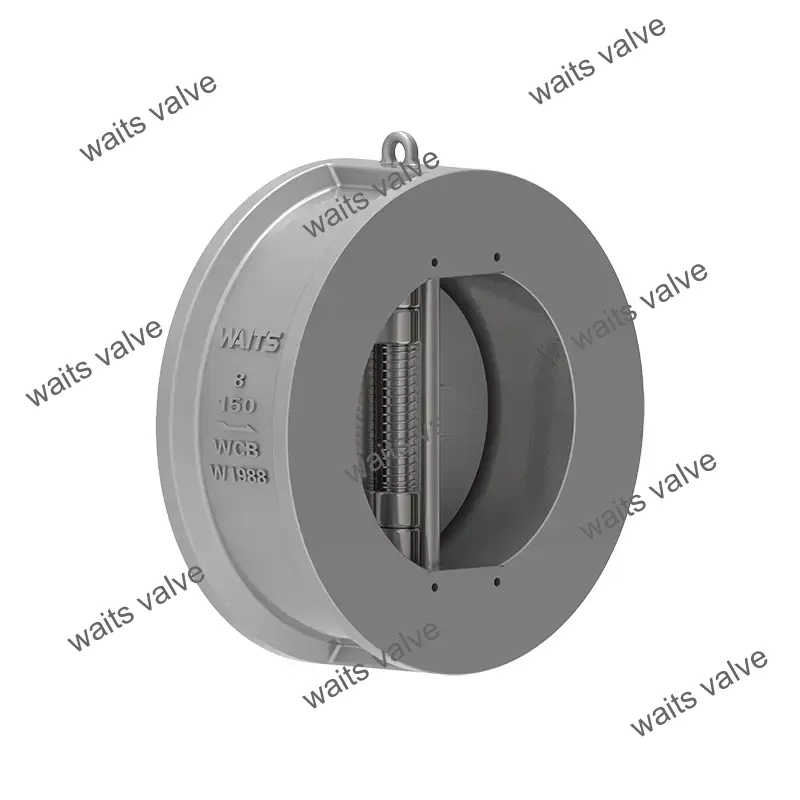

Soft Seal Dual Plate Check Valve

You can rest assured to choose the soft seal dual plate check valve manufactured by Waits. As a valve supplier with a complete production line, our products are highly customizable. In terms of sealing, we can have a variety of sealing forms such as NBR, EPDM, Hypalon, FKM, etc., which can be customized according to your needs and meet different standards such as API/DIN/JIS.

Send Inquiry

Product Description

The butterfly plate of the soft seal dual plate check valve is two semicircles, with a spring-loaded disc suspended on a central vertical pin.
When the valve is opened, the combined force of the fluid is at the center of the disc sealing surface, and the point of action of the spring support force that acts as a reaction is located at the center of the disc surface, so that the root of the disc opens first. This avoids the wear of the sealing surface that occurs when the disc is opened in the old conventional valve, and increases the durability of the valve seal.
When the flow rate slows down, under the action of the torsion spring reaction force, the disc gradually approaches the valve seat and enters the slow closing stage of the valve. When the fluid flows back, its force on the disc and the torsion spring reaction force will work together, and the closing of the disc will increase accordingly, entering the fast closing stage. The purpose of this design is to reduce the water hammer phenomenon, reduce the harm of water hammer, and better extend the service life. When closing, the spring force point causes the top of the disc to close first, preventing the root from biting and improving the durability of the valve sealing surface.

Implementation Standards

Design standards	API594，API6D，ASME B16.34
Flange standards	ASME B16.5, DIN2543~2548, API 605, ASME B16.47, MSS SP-44, ISO7005-1.
Connection methods	Wafer type, Flange Type, Lug Typt,
Testing and acceptance	API598, API 6D,
Structural length	API594, API6D, DIN3202
Pressure and temperature levels	ASME B16.34

Application

Size	NPS 2”~ NPS 60″ DN50 ~ DN1500
Pressure range	CL125 ~CL150 PN10~ PN16
Temperature range	；-20-150
Application range	It is suitable for various media such as water, steam oil, nitric acid, acetic acid, strong oxidizing media, etc.
Valve body	DI.A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800,，，
Valve plate	Castings：A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800,
Valve seat	NBR,EPDM,FKM...
Valve stem	A182 F6a,17-4PH，F304 F316, F51, ...

Performance Features

1. The components of the soft seal dual plate check valve include the valve body, valve disc, valve shaft, spring and other parts, which are connected by clamping type and have a compact structure.
2. The butterfly plate of the valve is made of two semicircles and is forced to return by a spring. The sealing surface can be made of wear-resistant material surfacing on the body or lined with rubber. It has a wide range of uses and reliable sealing.
3. The valve disc has a short closing stroke and is spring-loaded, with sensitive action and fast closing speed, which significantly reduces water hammer.
4. Because the soft seal dual plate check valve has a compact structure, small size, light weight, and easy installation, it is suitable for use in situations where the installation space is limited. It can be used in horizontal or vertical pipes.
5. Applicable to water, steam oil, nitric acid, acetic acid, strong oxidizing media and other media.
