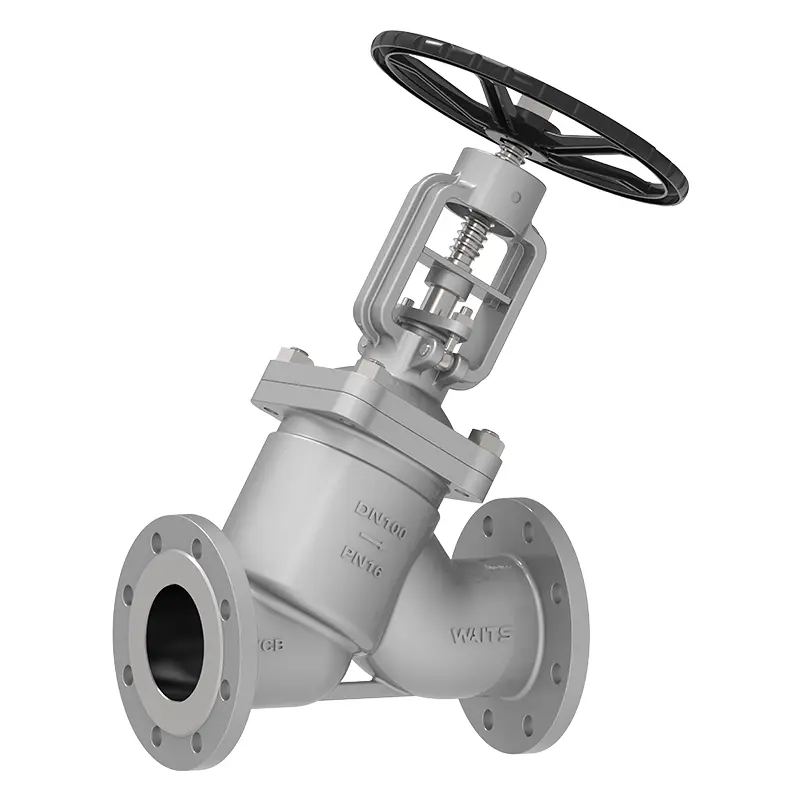

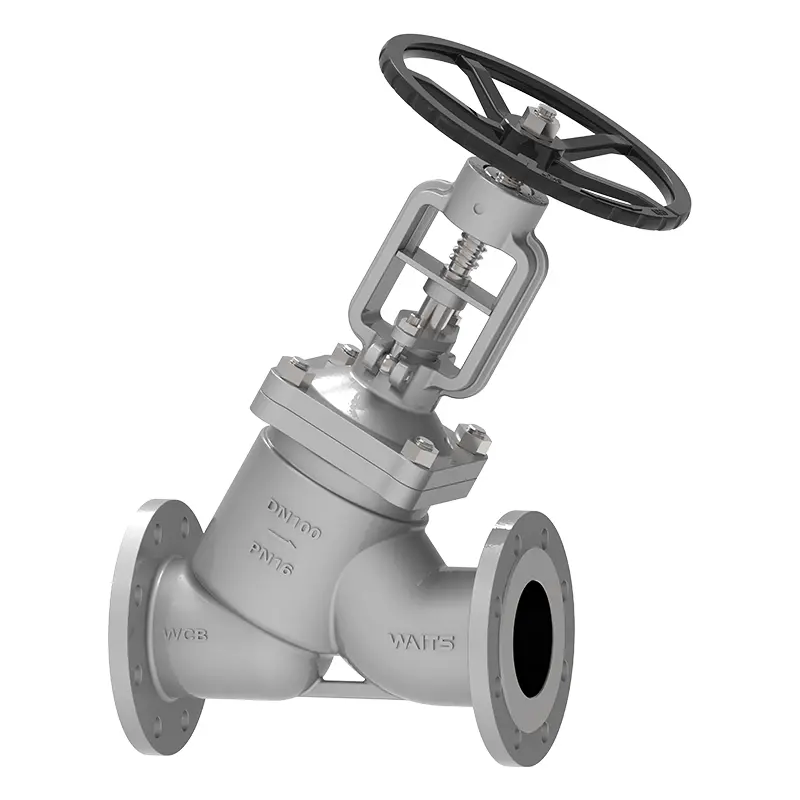

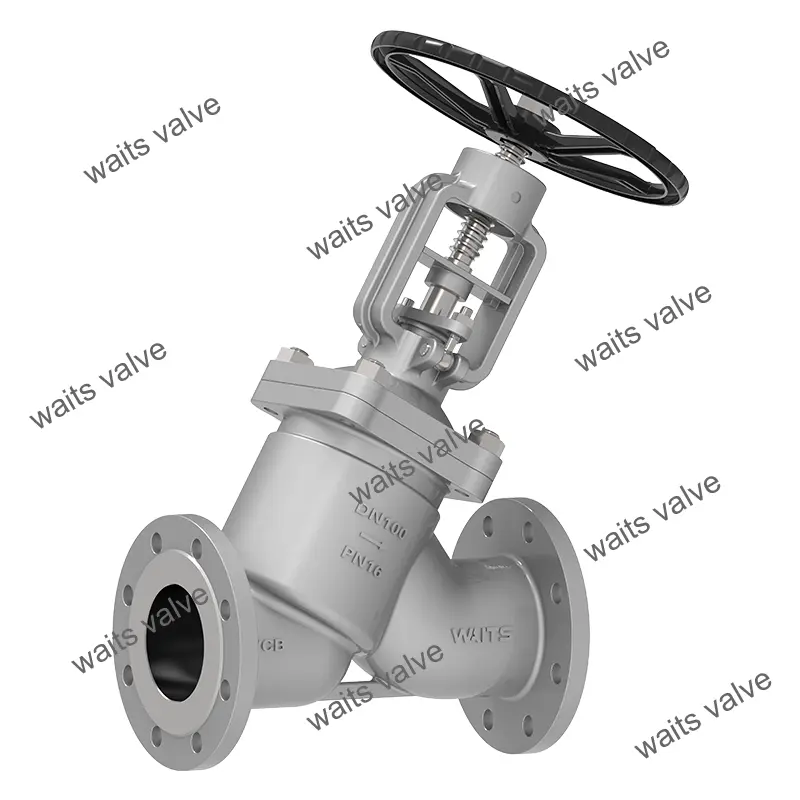

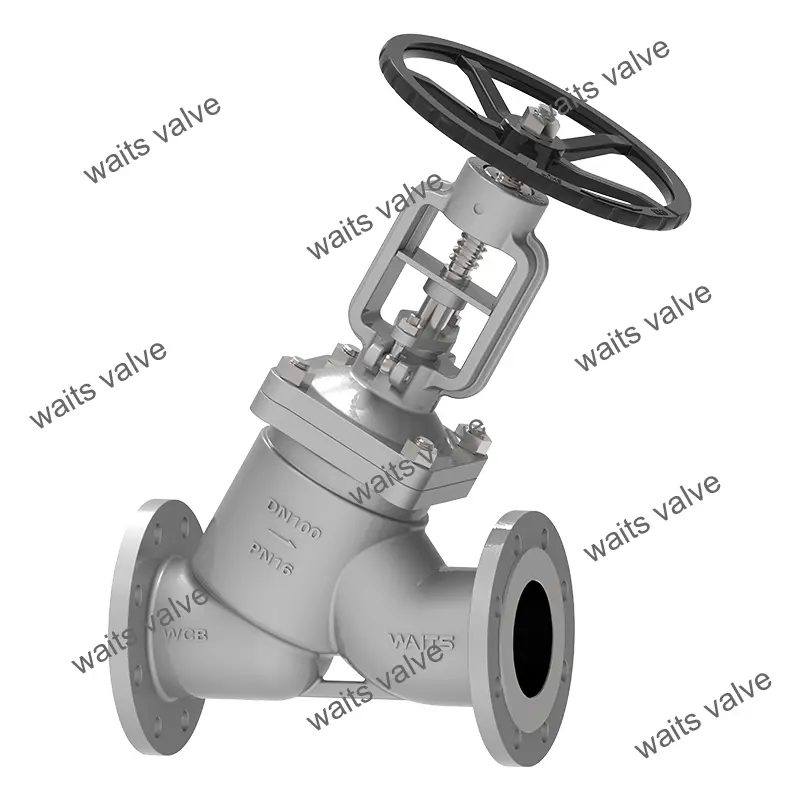

Y Bellows Globe Valve

Y Bellows Globe Valve adopts metal bellows and packing double seal design. When you need to use valves in high pressure, high temperature and corrosive environment, you can consider Waits Valve's valve. Its compact structure is easy to maintain, which can reduce downtime and cost, and generate income for you!

Send Inquiry

Product Description

Waits Valve high quality Y Bellows Globe Valve adopts "Y" shaped inclined flow channel inside, which significantly reduces fluid resistance, making it a good valve for high viscosity or easy solidification media. It uses metal bellows instead of traditional packing seal to effectively prevent media leakage. The valve stem applies pressure to push the conical valve disc to the valve seat. The sealing surface is welded with Stellite alloy, which can keep you from leaking even under high pressure. The conical design of the valve disc also has a "scrubbing effect" to automatically remove impurities on the sealing surface.

Implementation Standards-Y Bellows Globe Valve
Design Standards	DIN3356 /BS1873/ASME B16.34
Flange Standard	EN1092-1/2 ASME B16.5/ASME B16.47-A/B
Connection	RF/FF/RTJ
Test Acceptance	EN 12266 API598
Structure Length	EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API607 API6FA
Low Leakage Standard	API 622
Anti-Corrosion Design	NACE MR 0175
Application-Y Bellows Globe Valve
Size	DN15~DN500
Pressure Range	PN16~PN420
Temperature Range	-40℃～350℃‌
Application	High temperature oil products, natural gas, liquefied gas, boiler steam pipelines, fermentation tanks, etc. in refineries
Drive Mode	Handwheels, bevel gears, electric, pneumatic, etc.
Valve Body/Valve Cover	Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing Surface	Body, body cladding iron-based alloy, cladding hard-based alloy
Valve Stem	A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut	Copper alloy
Filler	Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...

Product Features

1. Y Bellows Globe Valve adopts metal bellows and packing double seal to ensure zero leakage and improve safety.

2. Made of corrosion resistant materials such as stainless steel, it is suitable for various corrosive media.

3. Y-type flow channel design, optimized flow channel design reduces resistance, improves fluid efficiency, and reduces energy consumption.

Applications

Hot oil system, steam system, hot and cold water system, etc.

Advantages

1. Bellows sealing element. The key component of the bellows sealed stop valve is the metal bellows. It is the connection between the valve cover and the valve stem, which adopts the automatic roll welding process. The metal bellows prevents partial leakage of the valve stem.

3. Y Bellows Globe Valve can directly lubricate the valve stem, nut and sleeve.

4. Ergonomic handwheel, easy to operate, you can use it for several years
