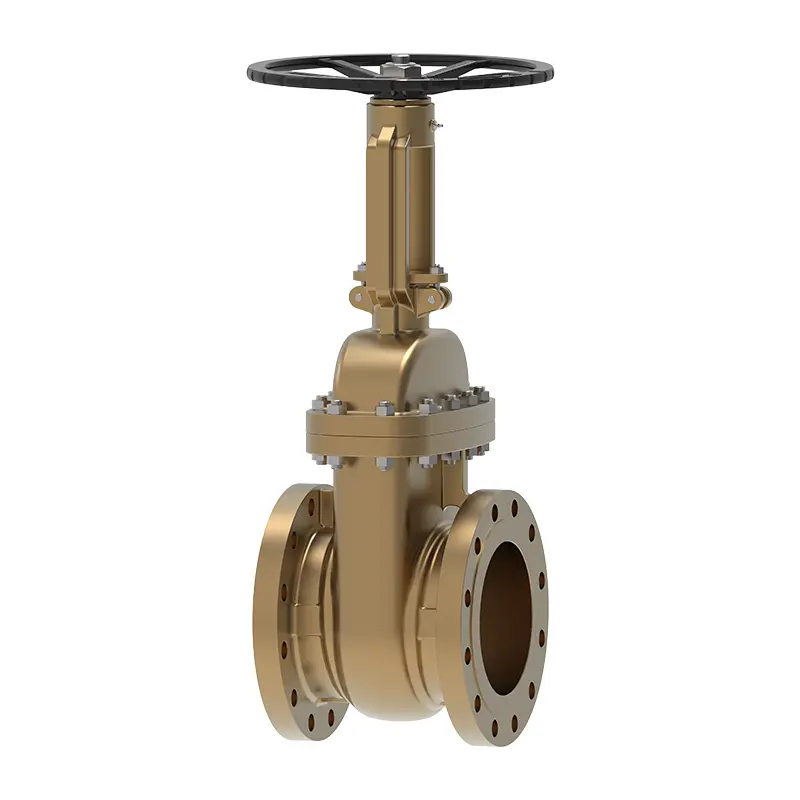

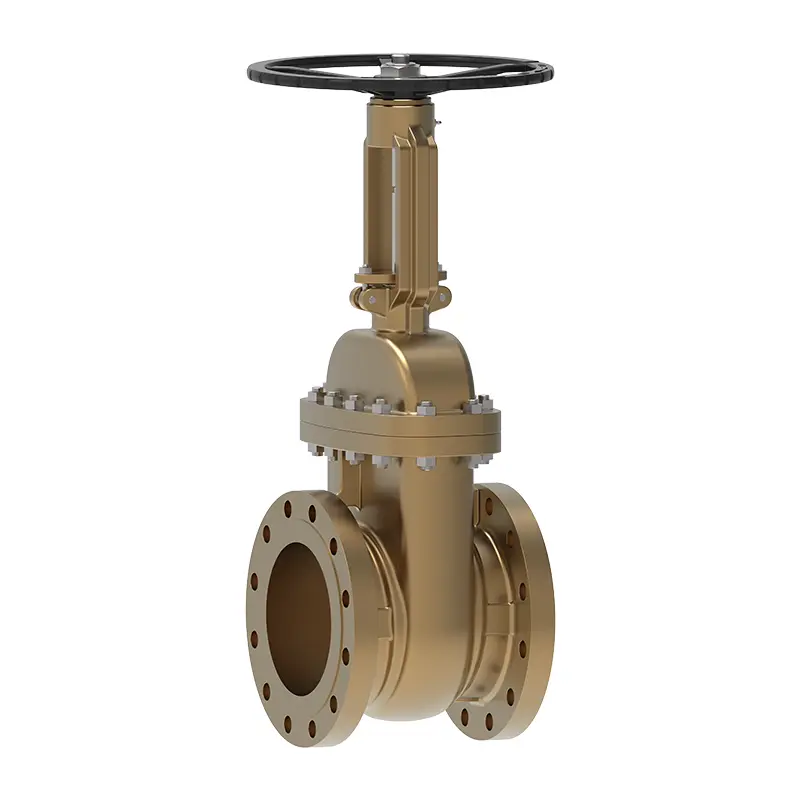

Bronze Wedge Gate Valve

Waits Valve high quality Bronze Wedge Gate ValveBronze Wedge Gate Valve adopts bronze valve body, bronze valve trim, threaded connection and valve cover in accordance with ASTM B62 specification. It also adopts precision casting wedge gate design. High strength aluminum bronze material is resistant to corrosion/wear. A variety of drive/connection methods are suitable for various pipelines.

Send Inquiry

Product Description

For Waits Valve durable Bronze Wedge Gate Valve, the gate is gradually lifted and away from the valve seat sealing surface by rotating the handwheel or driving the valve stem through the drive device. Pressure range CL150~CL300 PN10 ~ PN16. The valve adopts rising stem operation and is equipped with a solid wedge disc. Not suitable for drinking water. Welcome to send us a message to tell us about the customized content, we are online at any time!

Working principle:
When the gate lift height reaches about 1 times the nominal diameter of the valve, the fluid channel is unblocked and the valve is fully opened. In actual use, the top of the valve stem is usually used as the full opening indication. After reaching the top position, the hand wheel is usually turned 1/2 to 1 turn as the actual fully open position to prevent locking due to temperature changes. When the hand wheel or drive device is rotated in the opposite direction, the valve stem drives the gate to descend, and the gate sealing surface gradually fits the valve seat sealing surface. Sealing is achieved by pressing the gate tightly against the valve seat through external force or medium pressure to prevent the flow of medium.

Implementation Standards-Bronze Wedge Gate Valve
Design Standards	API600/API6D EN1074-1
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092
Connection	RF.RTJ, FF.BW.SW
Test Acceptance	API 598
Structure Length	API 6D ASME B16.10 EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API 607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175

Application-Bronze Wedge Gate Valve
Size	NPS 1/2″~ NPS 12″ DN50~ DN300
Pressure Range	CL150~CL300 PN10 ~ PN16
Temperature Range	-20℃~250℃
Application	Applicable to water, seawater, oil, steam, natural gas and weakly corrosive liquids. The hard seal type can handle medium containing particles or high temperature.
Drive Mode	Handwheel operation, Gear operated, Pneumatic operated, Electric operated, Hydraulic operated
Valve Body	Al - Bronze
Valve Seat	EPDM, PTFE, NBR. Al - Bronze, int+STL
Valve Stem	F304-F316, Al - Bronze

Performance Characteristics
Bronze Wedge Gate Valve has a straight-through media channel inside the valve body, which has low fluid resistance, and the media flows in a straight line with low flow resistance, which can effectively reduce system pressure loss.
Compared with stop valves, the movement direction of the gate is perpendicular to the flow direction of the medium, making opening and closing easier.
The medium can flow in both directions, and there is no need to consider the flow direction of the medium during installation, which is convenient for installation and use in different pipeline systems. It has a simple appearance and a relatively short structural length, which is more advantageous in occasions where the installation space is limited. It has good manufacturing processability and a wide range of applications.
The product can be Handwheel operated; Gear operated; Pneumatic operated; Electric operated; Hydraulic operated

Bronze Wedge Gate Valve
