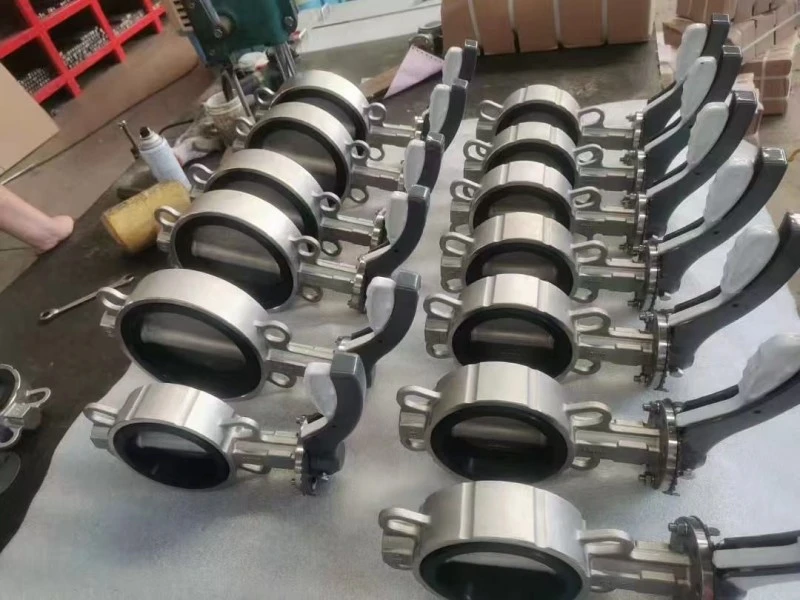

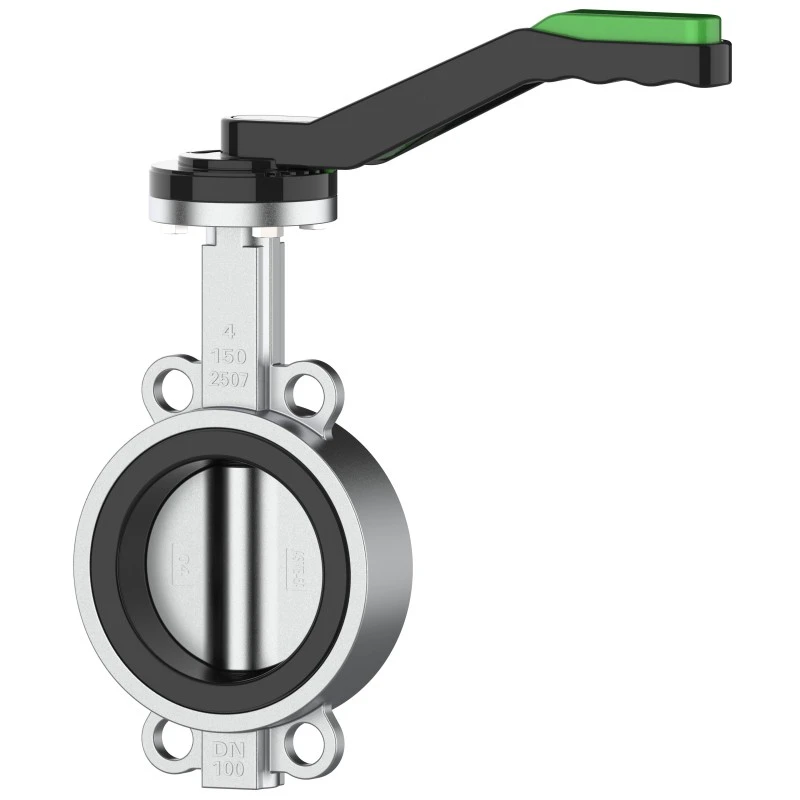

Duplex Steel Lever Wafer Butterfly Valve

The Waites valve, a low-cost lever wafer butterfly valve (Biphasic steel), features an epoxy coated ductile iron valve body, nickel plated ductile iron valve plate, nitrile rubber (NBR) lining, and an installation top that meets ISO 5211 standards. The key component for sealing is the rubber valve seat. We have chosen a reasonable structural form - groove type, and set a reasonable compression ratio to ensure that the valve has no leakage within the specified pressure range. In the air pressure test, complete sealing was achieved with no visible leakage.

Feature：

lever wafer butterfly valve (Biphasic steel) bi-directional flow, 100% sealed.

The replaceable/molded rubber valve seat comes in a variety of materials.

The fully universal valve body design is suitable for installation according to all commonly used standards, such as ANSI, BS, DIN, IS, JIS, etc.

The slotted valve plate and the rod valve can be locked in 8 intermediate positions in addition to the closed and open positions.

The short size of face-to-face water pipes complies with BS 5155/API 609/IS 13095/AWWA C 504 standards.

The Lever Wafer Butterfly Valve (Biphasic steel) is maintenance free, cost-effective, and meets 97/23/CE (PED) standards. Compliant with the CE 1115 directive.

Applicable to PN6/10/16, ANSI 150, Table D, and Table E flanges.

Detail：

Waits valves offer a clamp on structure lined with NBR (nitrile rubber), with a size range of 2 inches to 6 inches.

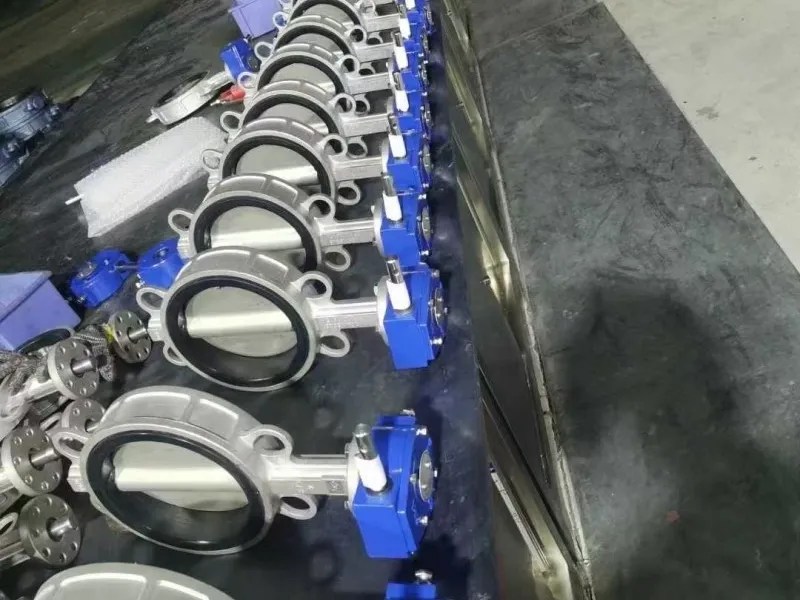

Lock the lever or gearbox operation.

Temperature range: -10 ° C to 80 ° C.

Pressure rating: PN16 to 6 inches.

Other sizes can be provided upon request, ranging from 1/2 inch to 24 inches (POA).
