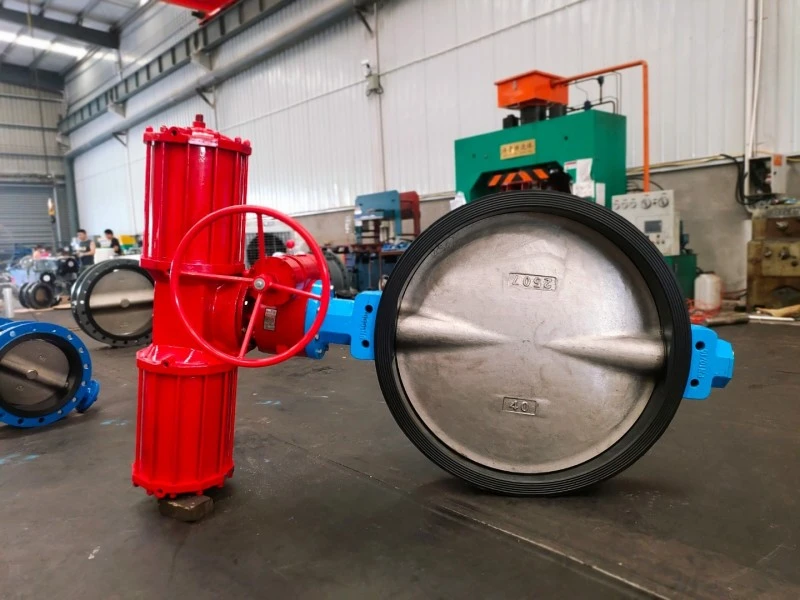

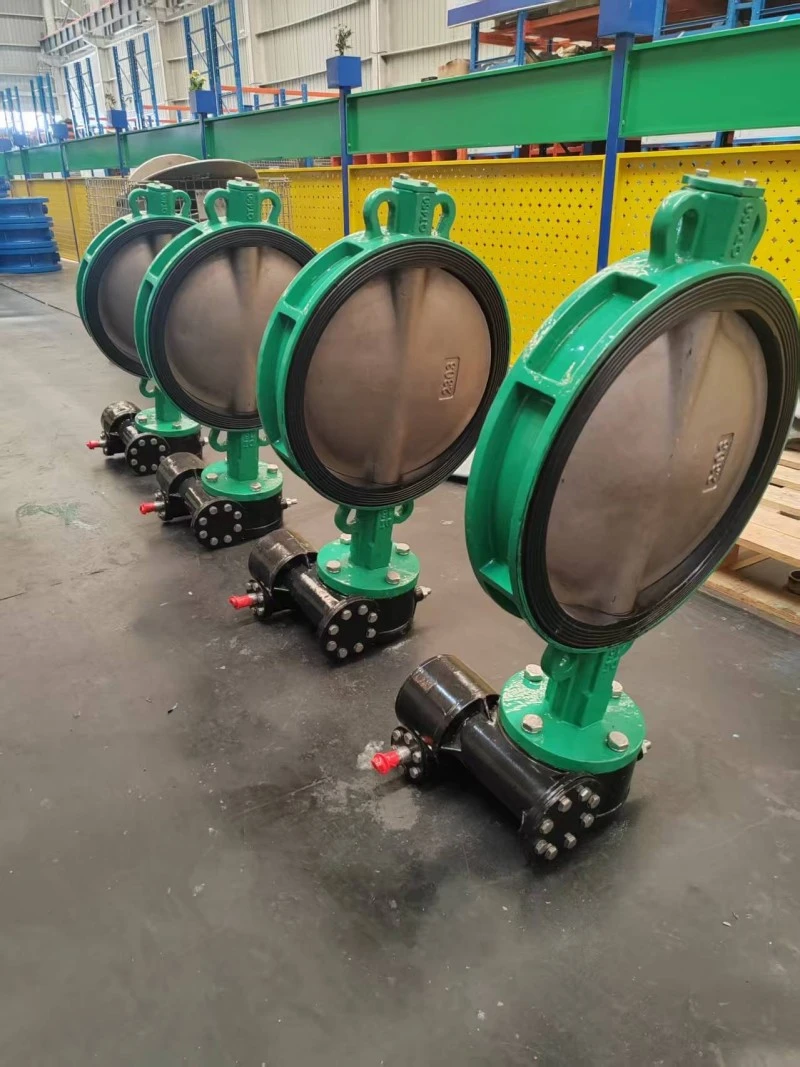

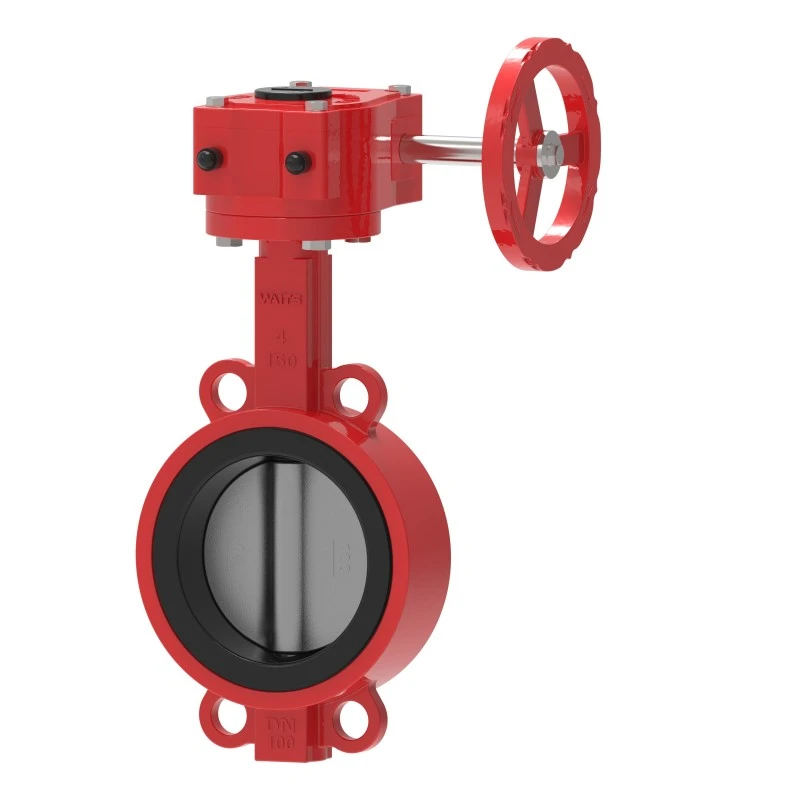

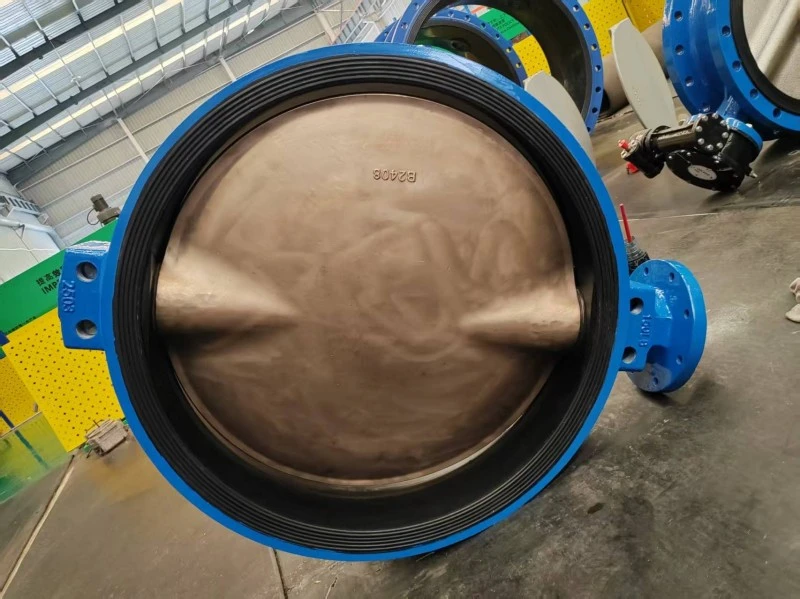

Fire Gear Wafer Butterfly Valve

The Fire Gear Wafer Butterfly Valve from Waits Valve is the core product of my fire protection series and has obtained ISO 9001 certification from DNV, Bureau Veritas, ABS, and Lloyds. This series of butterfly valves adopts high-quality B148 C9500 valve body and plate, as well as Monel K500 valve stem. If you have any other requirements, feel free to contact us!

The butterfly plate is located at the center of the pipeline, and a rod passing through the butterfly plate is connected to the actuator outside the valve. Rotating actuators can make the butterfly plate parallel or perpendicular to the direction of fluid flow. Unlike ball valves, butterfly valves are always located within the fluid flow range, so regardless of the valve position, pressure drop will occur in the fluid.

Feature:

The Fire Gear Wafer Butterfly Valve meets or exceeds the requirements of EN 593 and MSS SP-67 standards.

Sulfurization valve disc design achieves airtight closure.

The Fire Gear Wafer Butterfly Valve is suitable for indoor and outdoor use.

Flag shaped position indicator.

Built in monitoring switch.

The size of the groove end shall comply with AWWA C606 standard or other IPS pipeline standards.

Face to face dimensions comply with MSS SP-67 standard.

UL/ULC 1091 certification, FM 1112 certification, VdS 2100-08en and 3C certification, as well as CNBOP certification.

Rated working pressure:

UL/ULC certification: 300 psi

FM certification: 300 psi

VdS and 3C certification: 16 bar

Product description

Valve body: nodular cast iron GGG40/50 or cast iron GG25

2-Valve stem: SS420/SS431/SS416

3-Butterfly plate: ductile iron, cast iron. SS304 (CF8) stainless steel

4-Valve seat: EPDM or PTFE

Valve stem: stainless steel

6-Internal and external epoxy resin coating, with a thickness greater than 250 microns

7- Connection methods: clamp type, lug type, flange type

8- Work pressure: PN10/16; Size range: 2 inches to 72 inches

9- Design standards: DIN, EN558-1, API609; Top flange: ISO 5211;

10-Operation mode: Handwheel or worm gear
