Lever Signal Actuated Wafer Butterfly Valve Touch Active

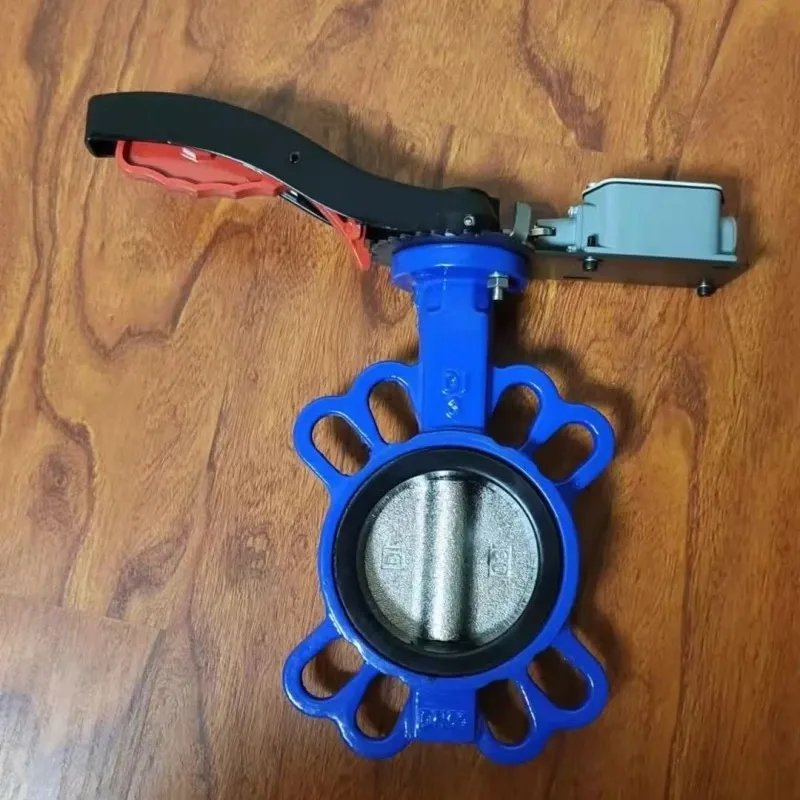

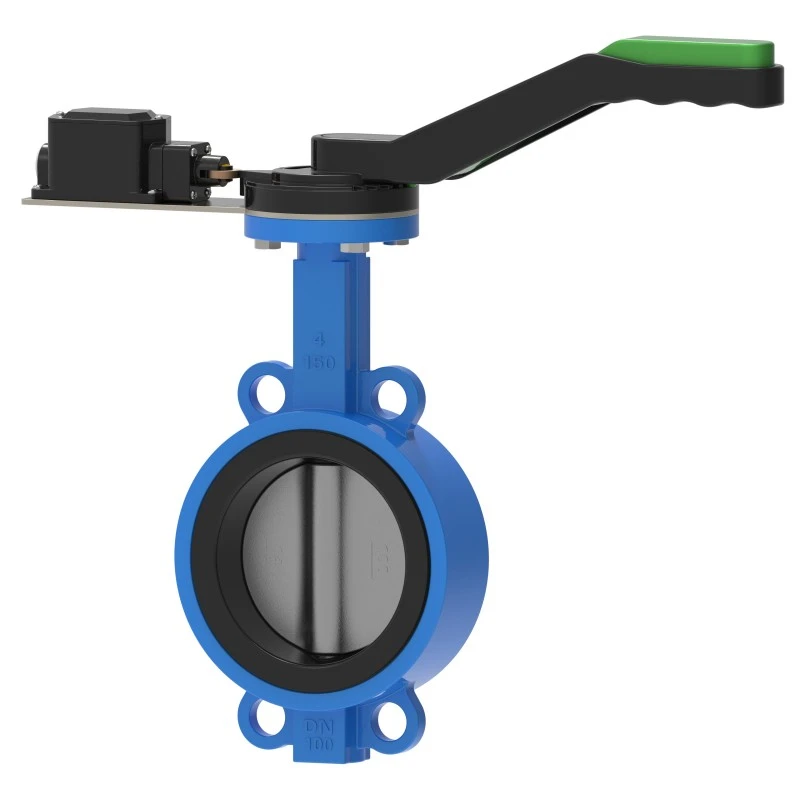

Waits Valve's lever single-actuated wafer butterfly valve (touch-activated) offers a compact design, excellent flow control performance, and a cost-effective price, making it a key regulating device in industrial piping systems. This series of butterfly valves utilizes a manually operated, clutchless design, requiring no levers, clutches, or brakes, and can be manually operated from mains voltage.

Features and Benefits:

Wide range of sizes

Non-reversible worm gear drive

Intuitive mechanical position indicator accurately indicates valve position.

Standard models are equipped with an anti-condensation heater and two auxiliary limit switches. Protection Rating: IP67

The lever single-actuated wafer butterfly valve (touch-activated) is a valve bolted between two pipe flanges. Its disc rotates 0° to 90° around its axis, enabling open and close control. It features a compact structure, lightweight (only 30% to 50% of a gate valve of similar size), and quick operation. Its core design features include:

Body Material: Gray cast iron (HT200/HT250), ductile iron (QT450-10), or stainless steel. Suitable for pipes with diameters from DN50 to DN600.

Connection: It lacks a built-in flange and is clamped between pipe flanges using long bolts, saving installation space and ensuring flange alignment.

Seal Type:

Soft Seal: The disc edge of the lever single-actuated wafer butterfly valve (touch-activated) is coated with a rubber or PTFE seal. Leakage at room temperature meets Class VI (≤0.1% x DN) and is suitable for temperatures from -20°C to 150°C.

Performance Features

When fully open, the disc thickness represents the only flow resistance, reducing pressure drop to 1/3 that of a gate valve of the same specification, and providing excellent flow regulation linearity.

The lever single-actuated wafer butterfly valve (touch-activated) utilizes a triple-eccentric structure (such as the HH44X) to achieve zero-friction opening and closing, extending its service life by 3-5 times that of traditional butterfly valves.

Applications

The lever single-actuated wafer butterfly valve (touch-activated) can be used in the petrochemical industry, such as refinery oil and gas pipelines (Class 150-600) and acid and alkali storage tank inlets and outlets.

Boiler feedwater regulation, cooling tower circulating water control (hard seals are preferred for DN200 and above).

Fire pump outlet backflow prevention, central air conditioning water systems in high-rise buildings.
