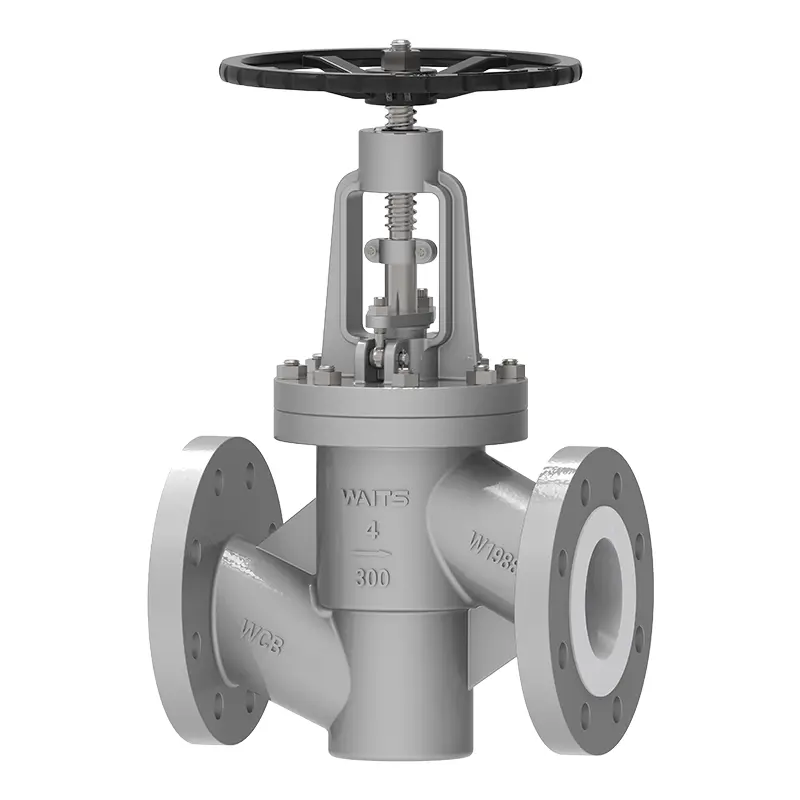

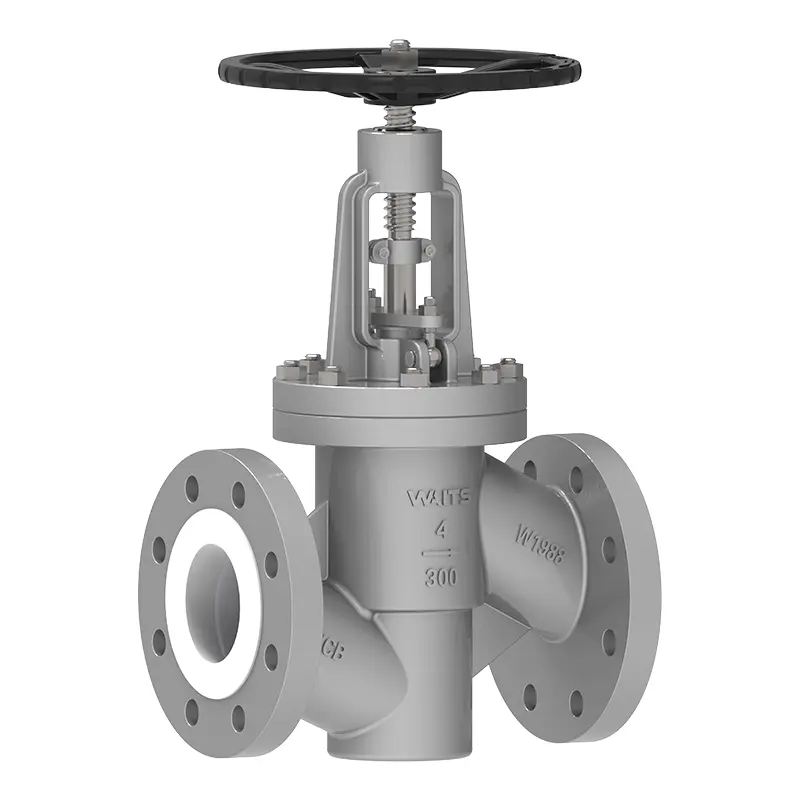

PTFE Lined Globe Valve‌‌

Waits Valve is a professional valve supplier and introduces you to PTFE Lined Globe Valve, which is a corrosion-resistant valve whose valve body, valve disc and valve seat and other parts in contact with the medium are made of fluoroplastic (PTFE) lining. They are mainly used for the on-off control of pipelines conveying corrosive media such as strong acids and alkalis. This type of valve is particularly suitable for occasions with high requirements for sealing performance and regulation accuracy, but attention should be paid to its high flow resistance and limited temperature/pressure tolerance. When selecting, various working conditions need to be considered comprehensively.

PTFE Lined Globe Valve provides precise flow regulation in highly corrosive chemical environments. The internal PTFE lining protects the valve body and trim from corrosive fluids, making it the choice for acid, alkali and toxic media applications in the chemical, pharmaceutical and wastewater industries. It can be assembled with pneumatic, electric, hydraulic or electrohydraulic actuators and is provided with the complete structure of the control valve.

Features

Perfluoroalkoxy lined components provide corrosion protection by isolating metal parts from process media.

Because all metal parts are isolated from the process fluid, there is no need to use expensive alloys.

Lining thickness is a minimum of 5 mm in all areas of the PTFE Lined Globe Valve that are exposed to the process fluid. Transfer molded PFA material is translucent.

Top entry design simplifies in-line maintenance.

PTFE bellows seals are leak proof and have an expected service life of more than 500,000 full travel cycles with proper use and maintenance.

Core Characteristics

1.The PTFE lining withstands corrosion from strong acids (e.g., sulfuric acid, hydrochloric acid), strong alkalis (e.g., sodium hydroxide), strong oxidizers (e.g., nitric acid), and most organic solvents, making it suitable for highly corrosive environments in chemical, pharmaceutical, and metallurgical industries.

2.Utilizes forced sealing (direct compression of the disc against the seat) for tight sealing surface contact and minimal leakage. Ideal for on off control and precise regulation of high purity, toxic, or valuable media.

3.Enables fine adjustment of medium flow by changing the flow area, offering better control than the simple on off function of Gate Valves.

4.The medium must turn to pass through the seat, resulting in higher flow resistance (greater than Ball Valves, Butterfly Valves). Suitable for small diameter pipelines or scenarios requiring high flow control precision.
