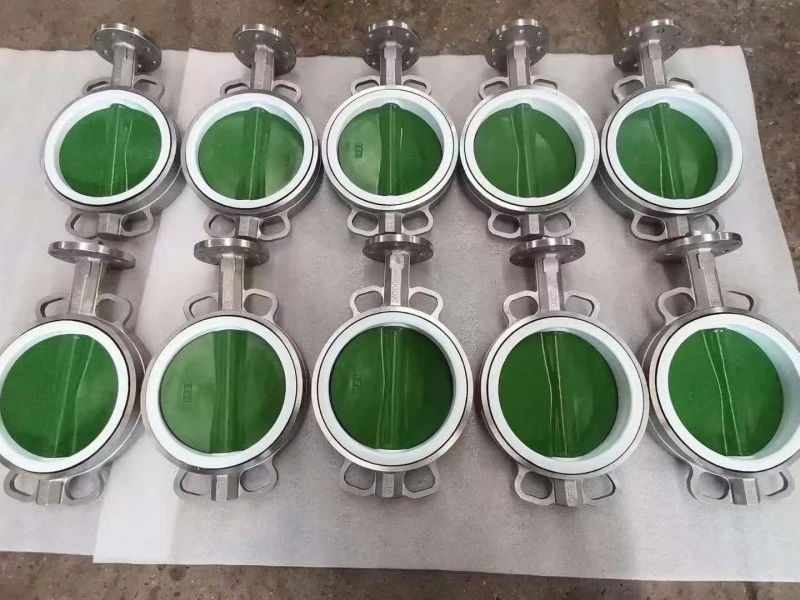

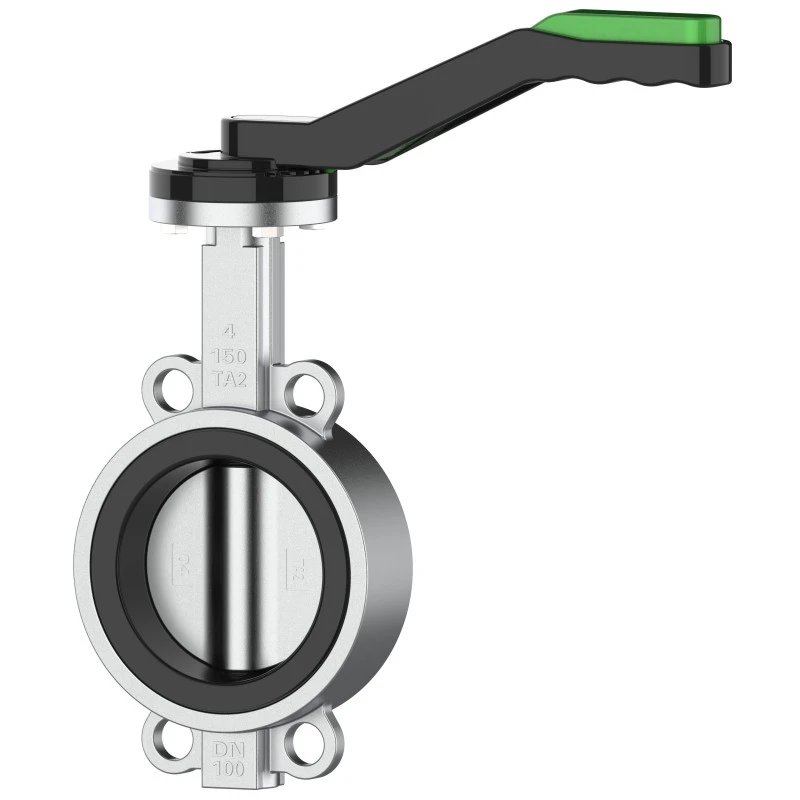

Titanium Lever Wafer Butterfly Valve

Waits Valve is a leading supplier of customized Lever Wafer Butterfly Valve (Titanium metal) in China. All of our products are manufactured to the highest standards and can safely handle corrosive media. The surface of the valve internals is treated with a hard surface to form a protective film. This operation not only improves the anti-corrosion performance, but also makes opening and closing easier due to the increased surface hardness.

The Lever Wafer Butterfly Valve (Titanium metal) hardly corrodes in the atmosphere, fresh water, seawater, and high-temperature steam. Our products are widely used in aviation, military industry, chlor alkali, soda ash, pharmaceuticals, chemical industry, fine chemical industry, textile printing and dyeing synthetic fiber industry, organic acid and inorganic salt production, nitrate industry, etc.

Feature

1. The Lever Wafer Butterfly Valve (Titanium metal) has a simple structure, small size, light weight, and easy installation and adjustment. This valve is widely used in medium and low pressure pipelines.

2. Good sealing performance, corrosion resistance, high pressure and high temperature resistance, intelligent control, and safe use.

3. The unique triple eccentric design ensures no friction between the sealing surfaces, extending the service life of the valve.

4. Torque generates elastic sealing.

5. Wedge design, through automatic sealing, makes the Lever Wafer Butterfly Valve (Titanium metal) tighter when closed, without compensation between sealing surfaces, achieving zero leakage.

Technical Specifications

Design standards: API, ASME, EN, ISO, JIS, DIN, BS, GB

Connection method: flange, clamp, lug

Pressure range: 150LB-300LB, 1.0MPa-4.0MPa

Size range: NPS 3 ″ -48 ″, DN50~DN1200)

Drive mode: lever, gear, electric, pneumatic
