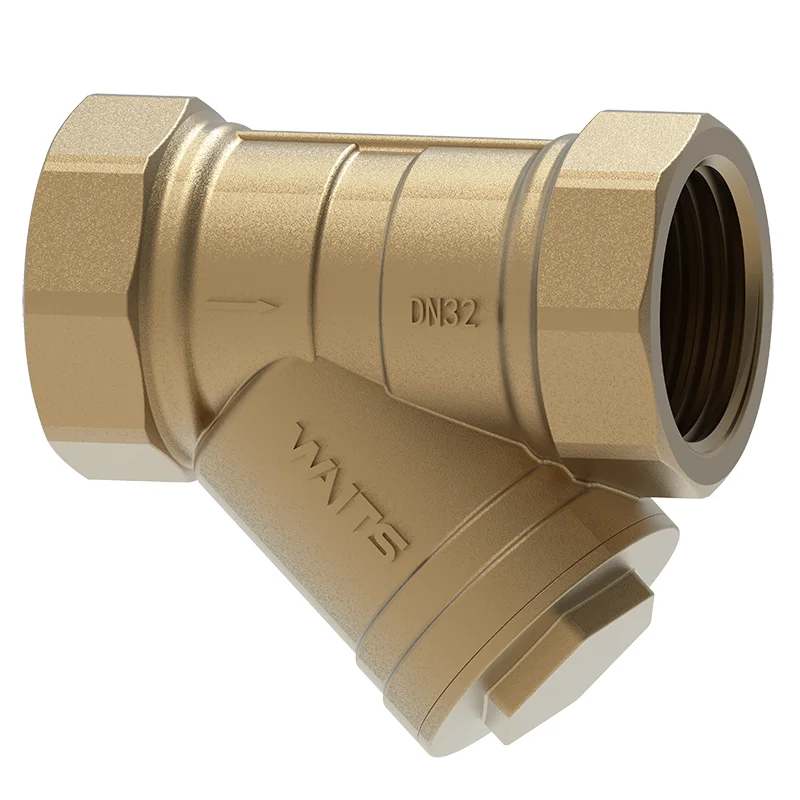

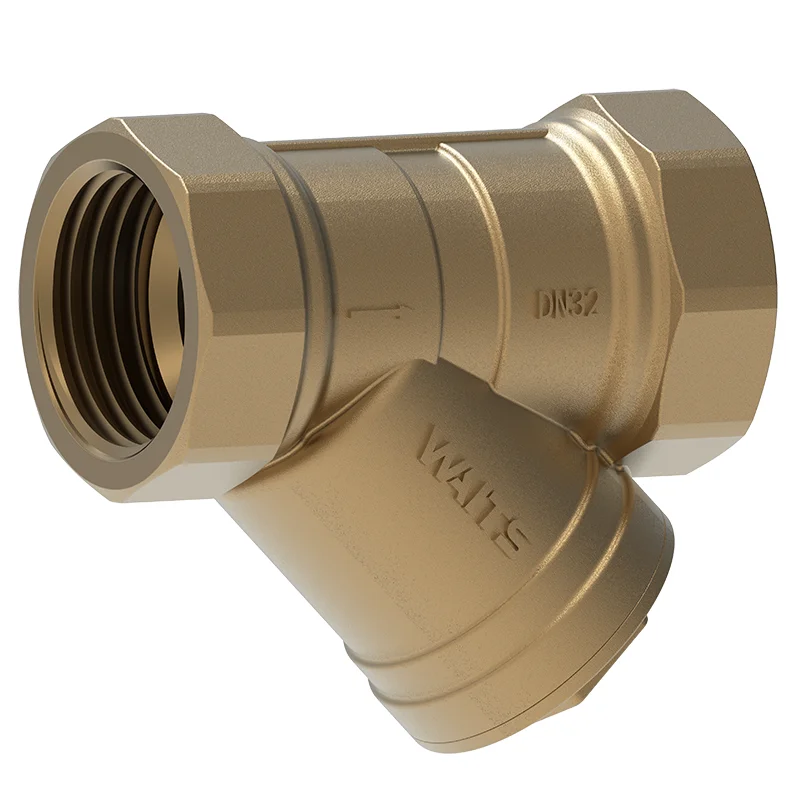

Bronze NPT Strainer‌

Waits Bronze NPT Strainer‌ ‌is made of precision casting of aluminum bronze, which is of high quality and corrosion resistance. Its filter can efficiently intercept impurities with low pressure loss. NPT threaded connection, easy installation, suitable for petrochemical, marine and water treatment systems, to ensure clean pipelines.

Send Inquiry

Product Description

Waits Bronze NPT Strainer‌ ‌is mainly composed of valve body, valve cover, filter screen and threaded connection parts, all made of durable aluminum bronze. The valve body and valve cover form the shell, and the filter screen (usually made of stainless steel such as 316L) is installed in the valve body to filter impurities in the medium. When the fluid flows through the threaded filter, the medium enters the filter from the inlet, is filtered by the filter screen, and the impurities are trapped on the filter screen. The clean fluid flows through the filter screen through the outlet to achieve solid-liquid separation or impurity filtration.

Implementation Standards-Bronze NPT Strainer‌ ‌
Design Standards	API 6D, EN1074
Flange Standard	ASME B1.20 EN 10226
Connection	NPT,
Test Acceptance	API 598
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175
Application-Bronze NPT Strainer‌ ‌
Size	NPS 1/2″~ NPS 6″ DN15~ DN150
Pressure Range	CL150~CL300 PN10 ~ PN40
Temperature Range	-20℃~200℃
Application	Water, oil, gas, seawater and weakly corrosive fluids, commonly used for impurity filtration in chemical industry, shipbuilding, water supply and drainage systems
Valve Body	Al - Bronze
Filter	Mainly stainless steel (304/316), some with bronze woven mesh

Precautions

When using the Bronze NPT Strainer, mind these points. Before installation, check for any damage. During operation, regularly clean it to avoid clogging. Don't over - tighten the connection parts to prevent cracking. Also, be aware of the media compatibility to ensure the strainer's normal function.
