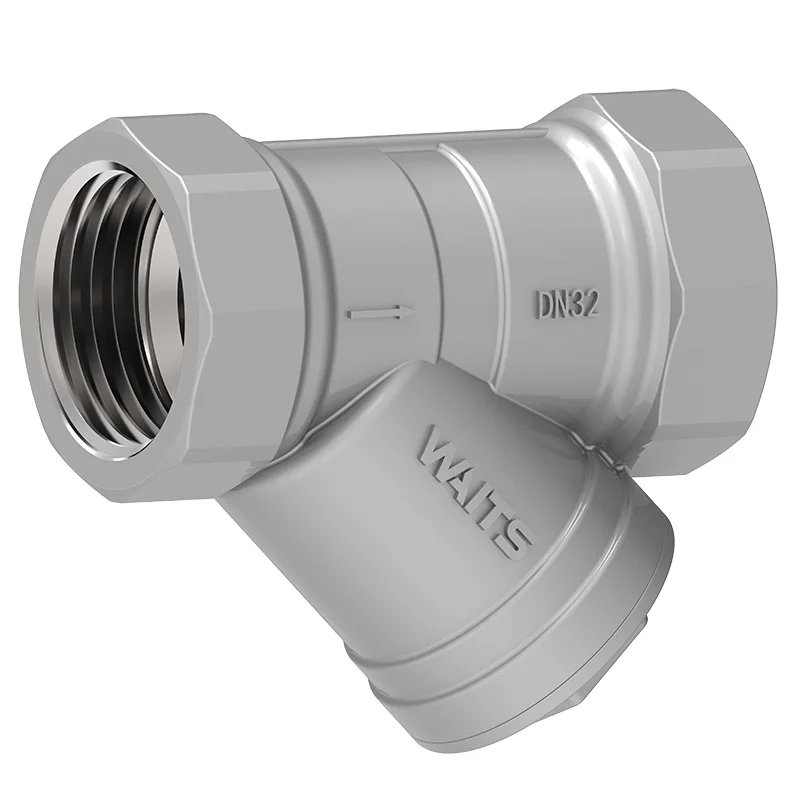

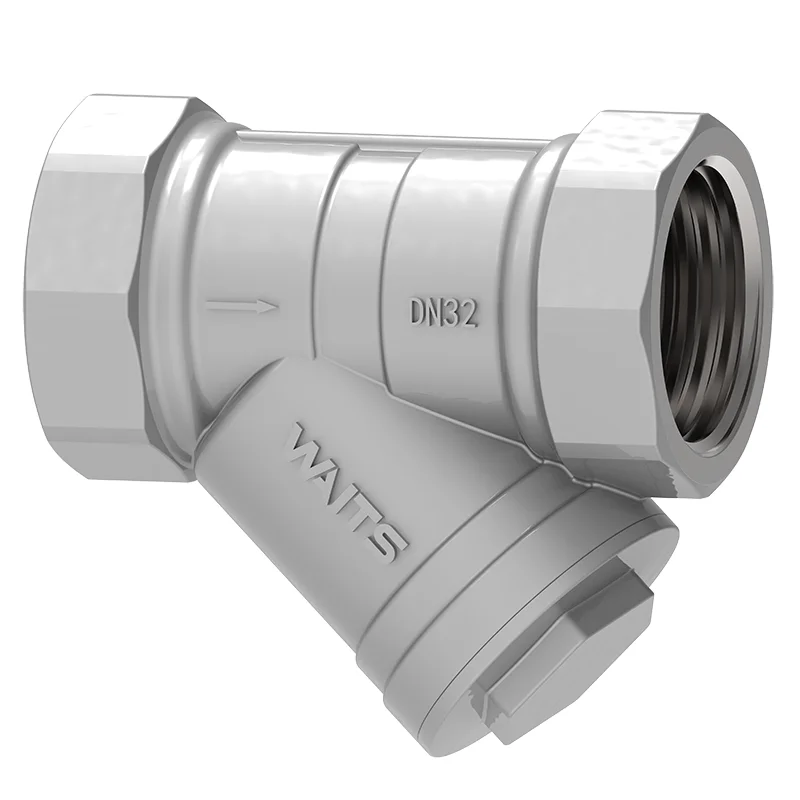

NPT Y-Strainer‌

Waits Valve NPT Y-Strainer‌ is made of stainless steel/brass, which is pressure resistant and corrosion-resistant. The pressure range is CL150~CL2500 PN16 ~ PN420. The Y type design is matched with a 304/316 strainer to filter the fluid. The NPT interface and drain port are easy to install/maintain and are suitable for petrochemical, power and HVAC systems.

Send Inquiry

Product Description

Waits Valve NPT Y-Strainer‌ is made of durable stainless steel or brass, which can withstand high pressure and corrosion while effectively intercepting impurities in the pipeline. Its low leakage standard is ISO 15848-1, API 622. Its Y-type structure includes a removable strainer (304/316 stainless steel material) with precise filter size to make optimal filtration of water, oil, gas and chemical media to protect downstream equipment. The filter is come with a standard NPT thread interface and a convenient drain port, which is easy to install, maintain and remove debris. It is a good helper for industrial applications in petrochemical, power and HVAC systems.

Implementation Standards-NPT Y-Strainer‌ ‌
Design Standards	API 6D, EN1074
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092-1/2
Connection	NPT
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175
Application-NPT Y-Strainer‌ ‌
Size	NPS 1/4″~ NPS 4″ DN6~ DN100
Pressure Range	CL150~CL2500 PN16 ~ PN420
Temperature Range	-20℃~300℃
Application	Water (cold water/hot water, sewage), oil (lubricating oil, hydraulic oil, fuel), solvents, coatings, food-grade fluids (such as beverages, syrups), chemical liquids (corrosion-resistant materials such as stainless steel are required), compressed air, natural gas, steam (high-temperature resistant materials are required), industrial gases (such as nitrogen, oxygen), fluids containing a small amount of solid particles or impurities (such as cooling circulating water, cutting fluids)
Valve Body	A105, A216 WCB, CF8/CF8M, F304, F316, F316L, C37700, C36000, A182 F11, F22, 2205, PVC, PP, PVDF
Filter	F304, F316, Galvanized iron wire
