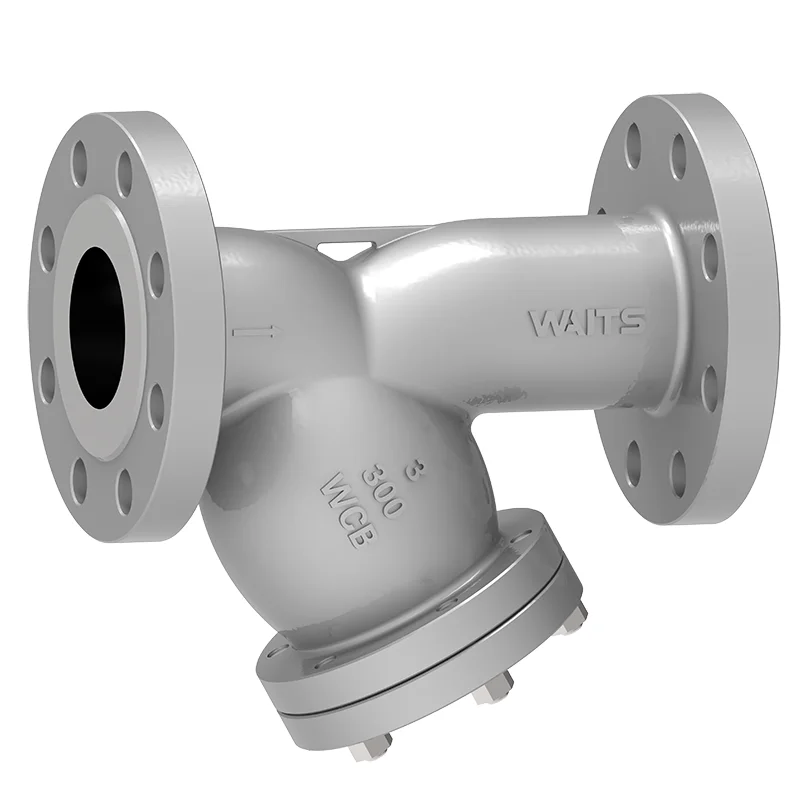

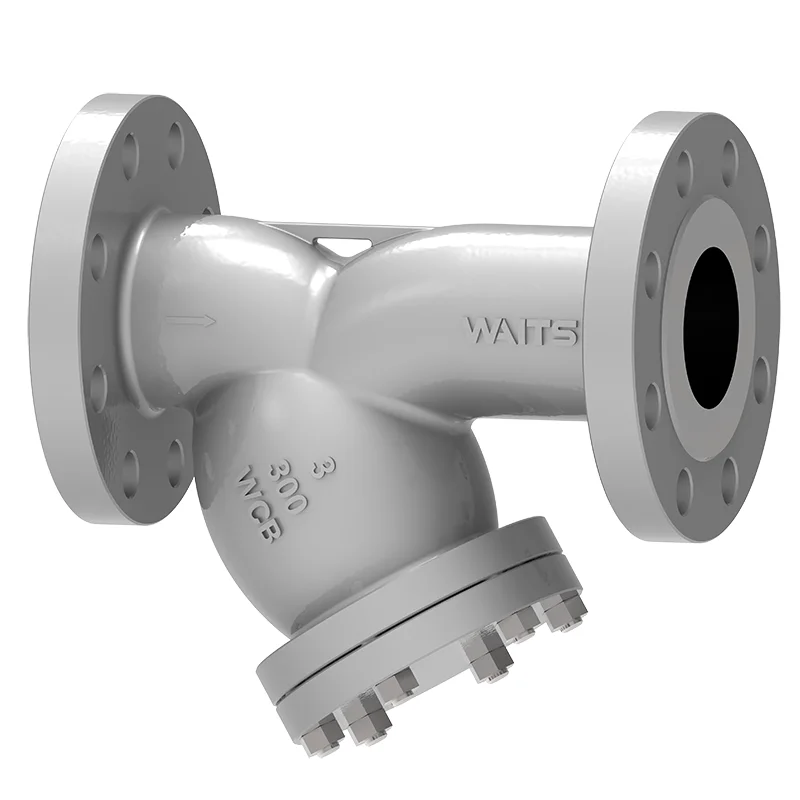

Y-Strainer

The Waits Valve Y-Strainer minimizes pressure loss with its Y-shaped design and precision-cast body. From simple low pressure cast iron threaded strainers to large high pressure special alloy strainers with custom cap designs, we have the right product for your application. Filters are available in a variety of materials and ANSI ratings.

Send Inquiry

Product Description

Waits Valve Waits Y-Strainers reduce pressure loss and capture impurities, using perforated or wire mesh screens to mechanically remove solid particles from flowing steam, gas or liquid piping systems and protect equipment. The strainer is made of precision cast stainless steel or ductile iron. Its removable screen and simple connection make it easy to maintain and install, and it is suitable for petrochemical, power and HVAC systems.

Installing strainers before valves and instruments can save expensive maintenance and repair costs. Use Waits Valve strainers with soft seat check valves (or ball valves from other manufacturers) to effectively eliminate harmful contaminants. Waits ValveY-Strainers are available in a variety of materials and a full range of end connections to accommodate a variety of applications. The "Y" shape design minimizes fluid blockage and keeps the flow unobstructed. The cap seal (graphite optional, suitable for high temperature environments) effectively prevents leakage. In addition, the filter is equipped with a drain port for self cleaning and easy maintenance.

Implementation Standards-Y-Strainer
Design Standards	API 6D, EN1074
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092-1/2
Connection	NPT, RF, FF, RTJ, BW, SW
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175
Application-Y-Strainer
Size	NPS 1/4″~ NPS 24″ DN6~ DN600
Pressure Range	CL150~CL2500 PN16 ~ PN160
Temperature Range	-20℃~450℃
Application	Water, oil, gas, steam, weakly corrosive or strongly corrosive fluids (need corresponding materials such as stainless steel, fluorine lining, etc.) and liquids containing a small amount of particulate impurities
Valve Body	Cast iron, ductile iron, carbon steel, stainless steel (F304/F316), fluorine lining
Filter	F304, F304L, F316, F316L, galvanized iron wire, copper wire

Performance Characteristics

The Waits Y-Strainer offers compact structural design with a streamlined Y-shaped configuration that minimizes pressure loss and installation space requirements. It provides high efficiency filtration through customizable mesh screens (20-300 mesh) to trap particles, rust, and debris, ensuring equipment protection in pipelines. Finally, its easy installation and maintenance are enabled by NPT connections and a removable bottom cover for quick screen cleaning without disassembling the system.
