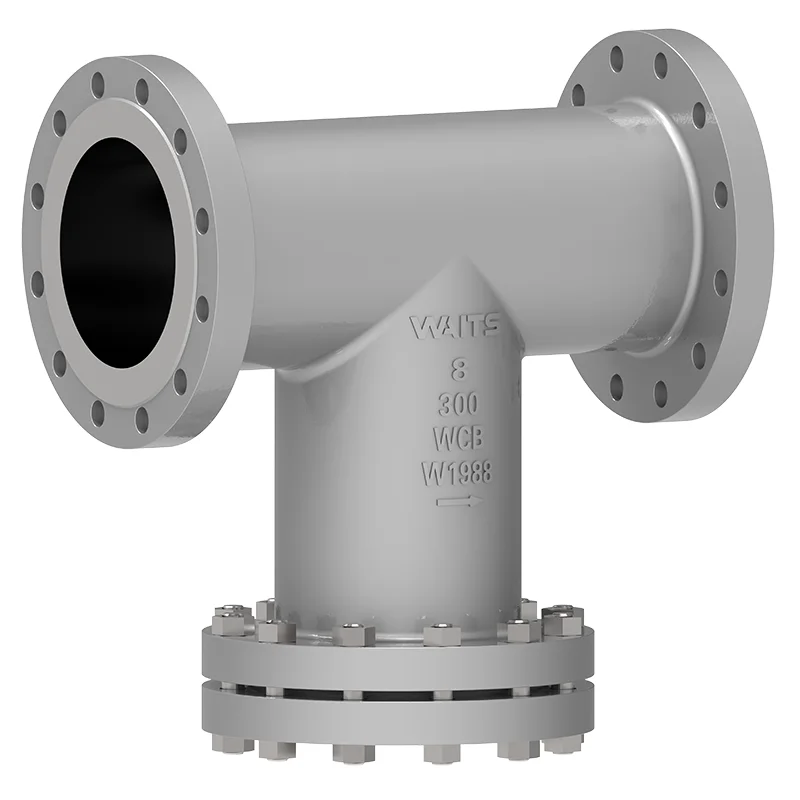

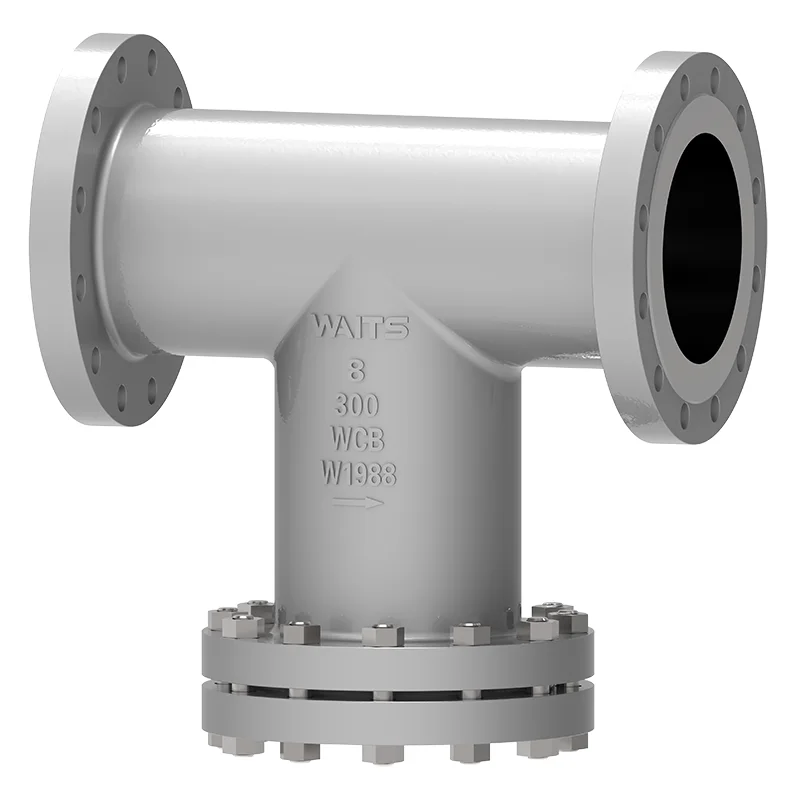

T-Strainer

Don't let impurities harm your system! Use the Waits T-Strainer, which is made of high quality materials and precision manufacturing processes, and has excellent durability and filtering effects, making it a must have filter for industrial and civil piping systems to protect against contaminants.

Send Inquiry

Product Description

Order from Waits Valve Co., Ltd.'s complete range of basket filters and T-Strainers, including our T-Strainer, which uses a T-shaped design to optimize fluid flow paths to efficiently capture contaminants while maintaining minimal pressure loss. This filter is a key component of industrial and civil piping systems, effectively protecting equipment from debris while not affecting operating efficiency.

Browse our product catalog today to select the filter that fits your engineer's operation and experience the convenience of working with a trusted Chinese supplier. Act now, your system deserves the best - our filters will provide you with protection.

Implementation Standards-T-Strainer
Design Standards	API 6D, EN1074
Flange Standard	ASME B16.5/ASME B16.47- A/B / EN1092-1/2
Connection	NPT, RF, FF, RTJ, BW, SW
Test Acceptance	API 598 EN12266
Structure Length	API6D/ASME B16.10/EN558
Pressure and Temperature Ratings	ASME B16.34
Fire Test	API 6FA API607
Low Leakage Standard	ISO 15848-1, API 622
Anti-Corrosion Design	NACE MR 0175
Application-T-Strainer
Size	NPS 1/2″~ NPS 24″ DN15~ DN600
Pressure Range	CL150~CL2500 PN10 ~ PN160
Temperature Range	-20℃~400℃
Application	Water, oil, gas, steam, weakly corrosive or strongly corrosive fluids (need corresponding materials) and liquids containing particulate impurities
Valve Body	Cast iron, ductile iron, carbon steel, stainless steel (F304/F316), fluorine-lined
Filter	F304, F304L, F316, F316L, galvanized iron wire, copper wire, copper alloy

Maintenance Methods

T-Strainer maintenance should be performed at least once a year, or when the pressure drop is found to be higher than normal. Quickly clean the system about once a month. Please follow the following points for full maintenance:

Make sure the main pipe is closed

Unscrew the cover bolts and nuts and remove the cover [blind flange] and gasket

Take out the filter basket and carefully inspect it for damage. If any holes in the filter are found to be blocked, clean them with compressed air and/or any suitable tool. If any parts of the filter basket are damaged or deformed, replace them with a new spare.

Carefully clean the inside of the filter body

Install new gaskets

Install new or cleaned filter screen

Close the cover

Slowly apply pressure to the line and check for leaks

Write the date of this maintenance operation on the filter body
